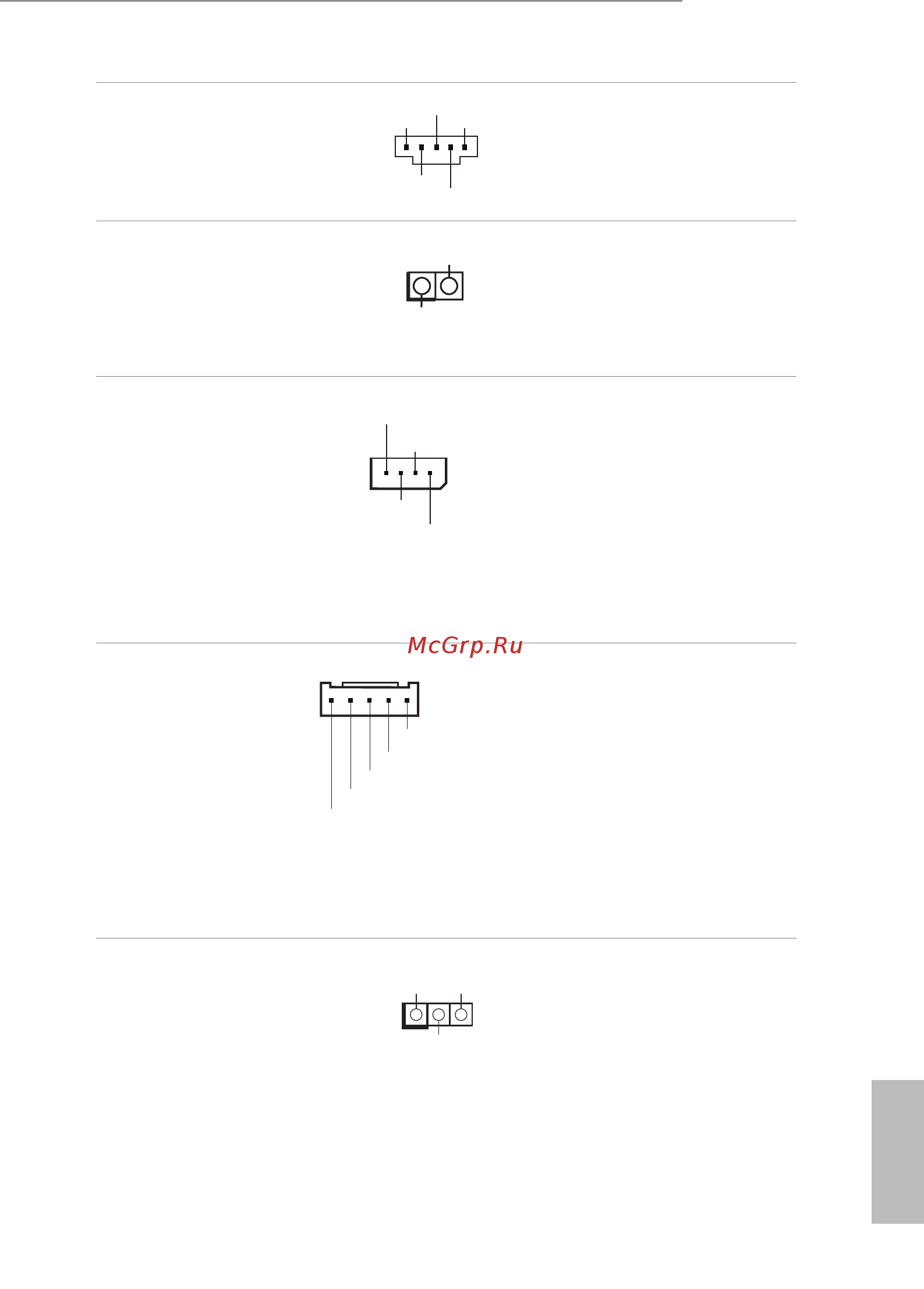

EP2C612D8C
30 31
English
PSU SMBus
(PSU_SMB1)
(see p.7, No. 3)
+3V
1
GND
ALERT
SMBCLK
SMBDATA
PSU SMBus monitors the
status of the power supply, fan
and system temperature.
Non Maskable Interrupt
Button Header
(NMI_BTN1)
(see p.7, No. 36)
1
CONTROL
GND
Please connect a NMI device
to this header.
Intelligent Platform
Management Bus header
(4-pin IPMB1)
(see p.7, No. 44)
IPMB_SDA
IPMB_SCL
No Connect
GND
This 4-pin connector is used
to provide a cabled base-board
or front panel connection for
value added features and 3rd-
party add-in cards, such as
Emergency Management cards,
that provide management
features using the IPMB.
Baseboard Management
Controller SMBus Headers
(5-pin BMC_SMB_1)
(see p.7, No. 47)
(5-pin BMC_SMB_2)
(see p.7, No. 46)
(5-pin BMC_SMB_3)
(see p.7, No. 45)
BMC_SMB_PRESENT_1_N
Power
BMC_SMBCLK
GND
BMC_SMBDATA
ese headers are used for the
SM BUS devices.
ermal Sensor Header
(3-pin TR1)
(see p.7, No. 34)
1
TR1 TR1
GND
Please connect the thermal
sensor cable to either pin 1-2
or pin 2-3 and the other end to
the device which you wish to
monitor its temperature.
