EP2C612D8C
80 81
English
Chapter 6 Net Framework Installation Guide
To let Intel
®
RSTe works properly, it is required to install Net Framework. Please follow the
steps below to enable “.Net Framework” feature on Microso
®
Windows
®
Server 2008 R2.
6.1 Installing .Net Framework 3.5.1 (For Server 2008 R2)

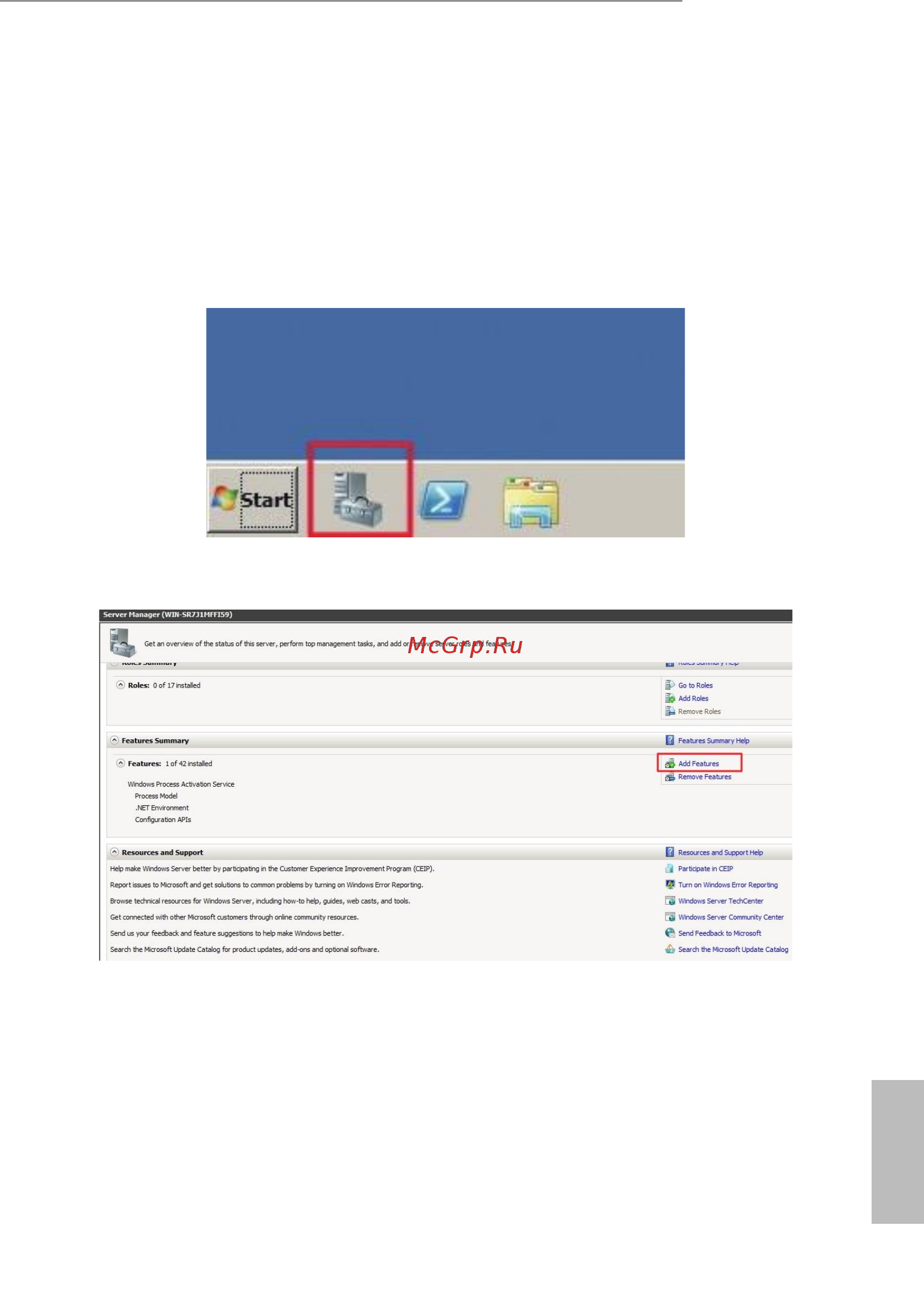

1. Double-click the Server Manager icon in the Windows system tray.
2. Click Add Features in the right hand pane.
