ASRock EP2C612D8C [68/89] Iio configuration
![ASRock EP2C612D8C [68/89] Iio configuration](/views2/1694665/page68/bg44.png)
62 63
English

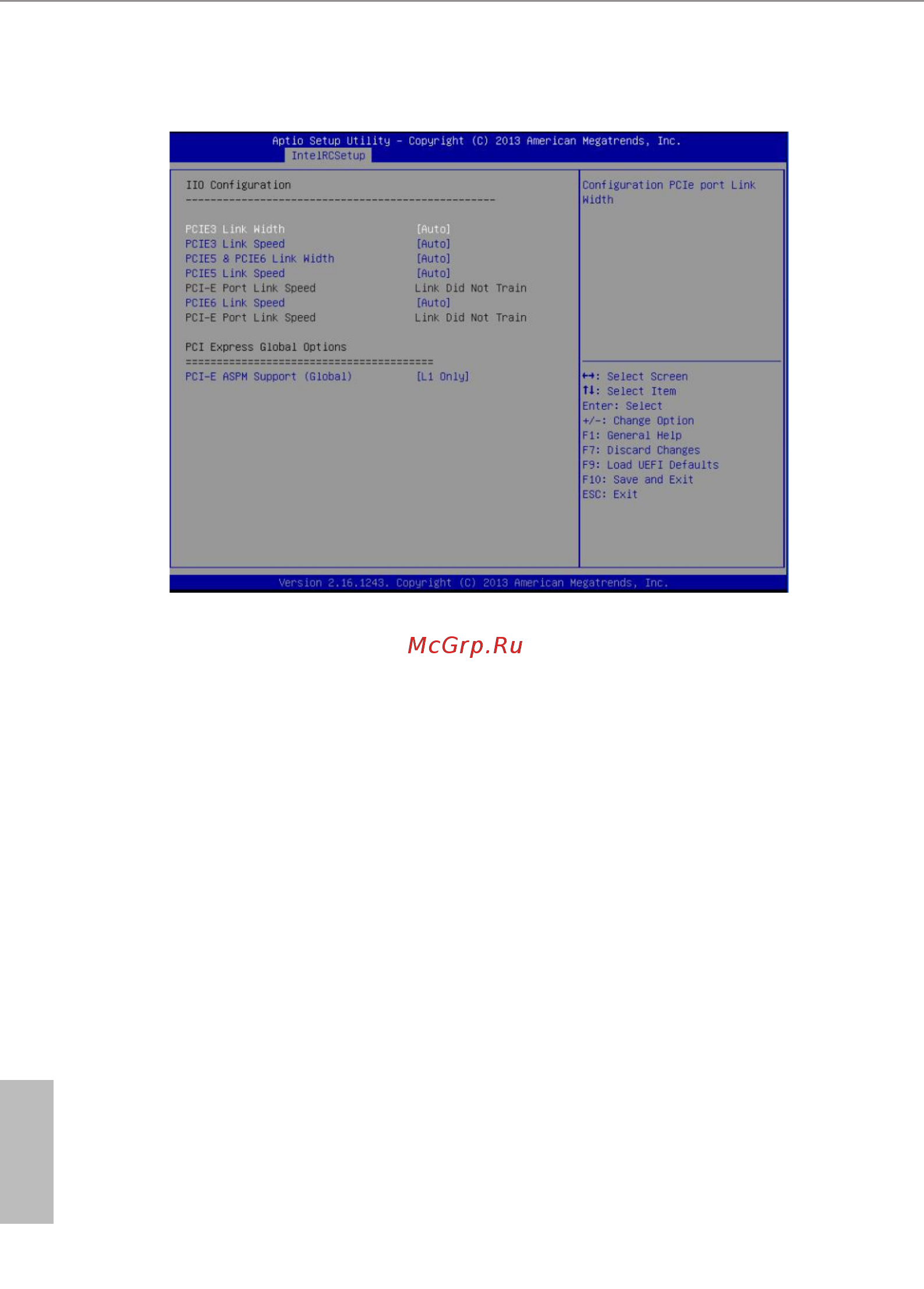

3.4.5 IIO Conguration
PCIE3 Link Width
is allows you to select PCIE 3 Link Width. e default value is [Auto].
PCIE3 Link Speed
is allows you to select PCIE 3 Link Speed. e default value is [Auto].
PCIE5 & PCIE6 Link Width
is allows you to select PCIE 3 Link Width. e default value is [Auto]..
PCIE5 Link Speed
is allows you to select PCIE 5 Link Speed. e default value is [Auto].
PCIE6 Link Speed
is allows you to select PCIE 6 Link Speed. e default value is [Auto].
PCI-E ASPM Support
is option enables or disables the ASPM support for all downstream devices.
