60 61
English

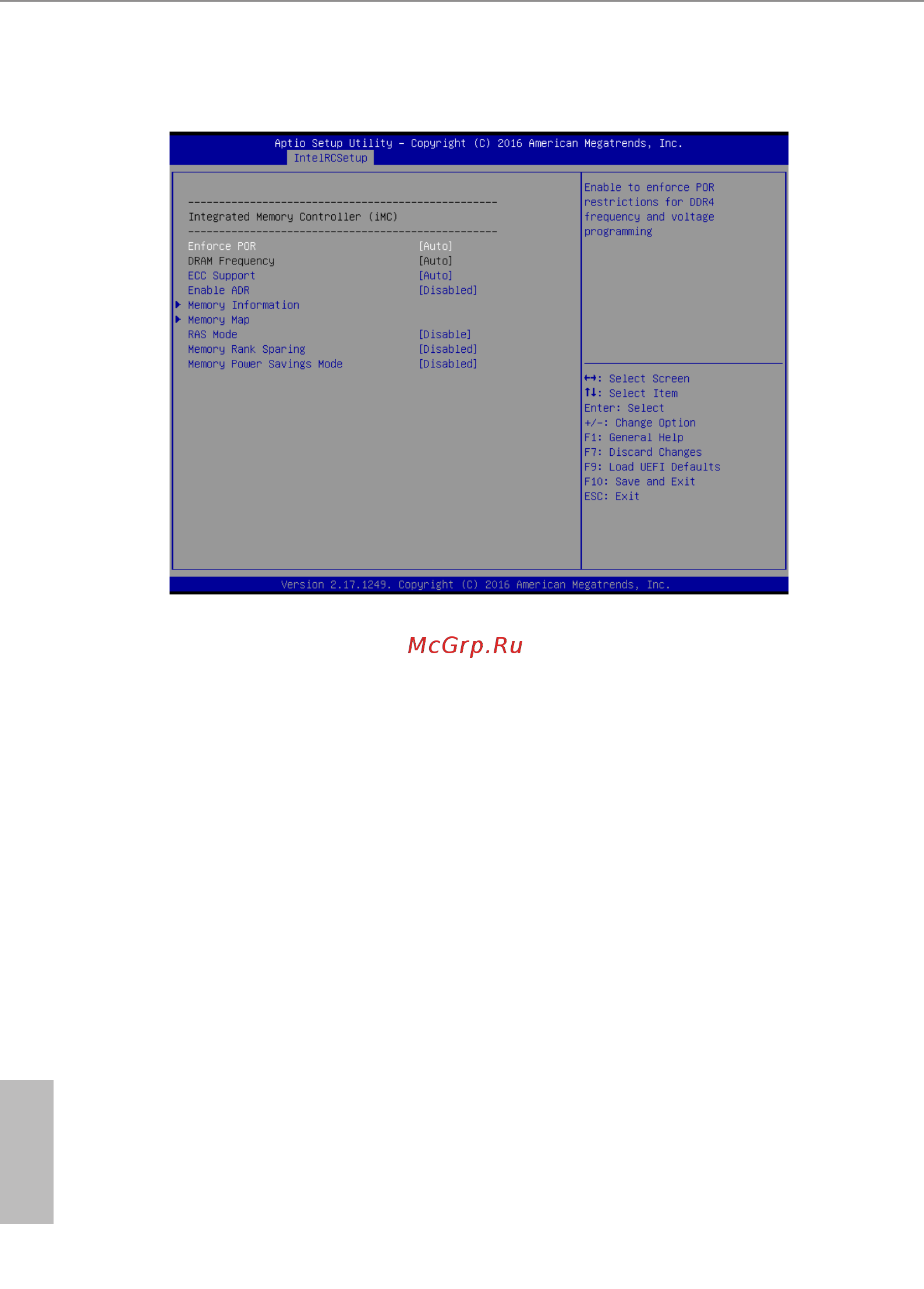

3.4.4 Memory Conguration
DRAM Frequency
If [Auto] is selected, the motherboard will detect the memory module(s) inserted and
assign the appropriate frequency automatically.
ECC Support
Use this item to enable or disable DDR ECC Support.
Enable ADR
Use this item to enable the ADR.
Memory Information
Displays memory topology with DIMM population information.
Memory Map
Set memory mapping settings.
Channel Interleaving
Select to congure Channel Interleaving settings.
Rank Interleaving
Select to congure Rank Interleaving settings.
