EP2C612D8C
28 29
English

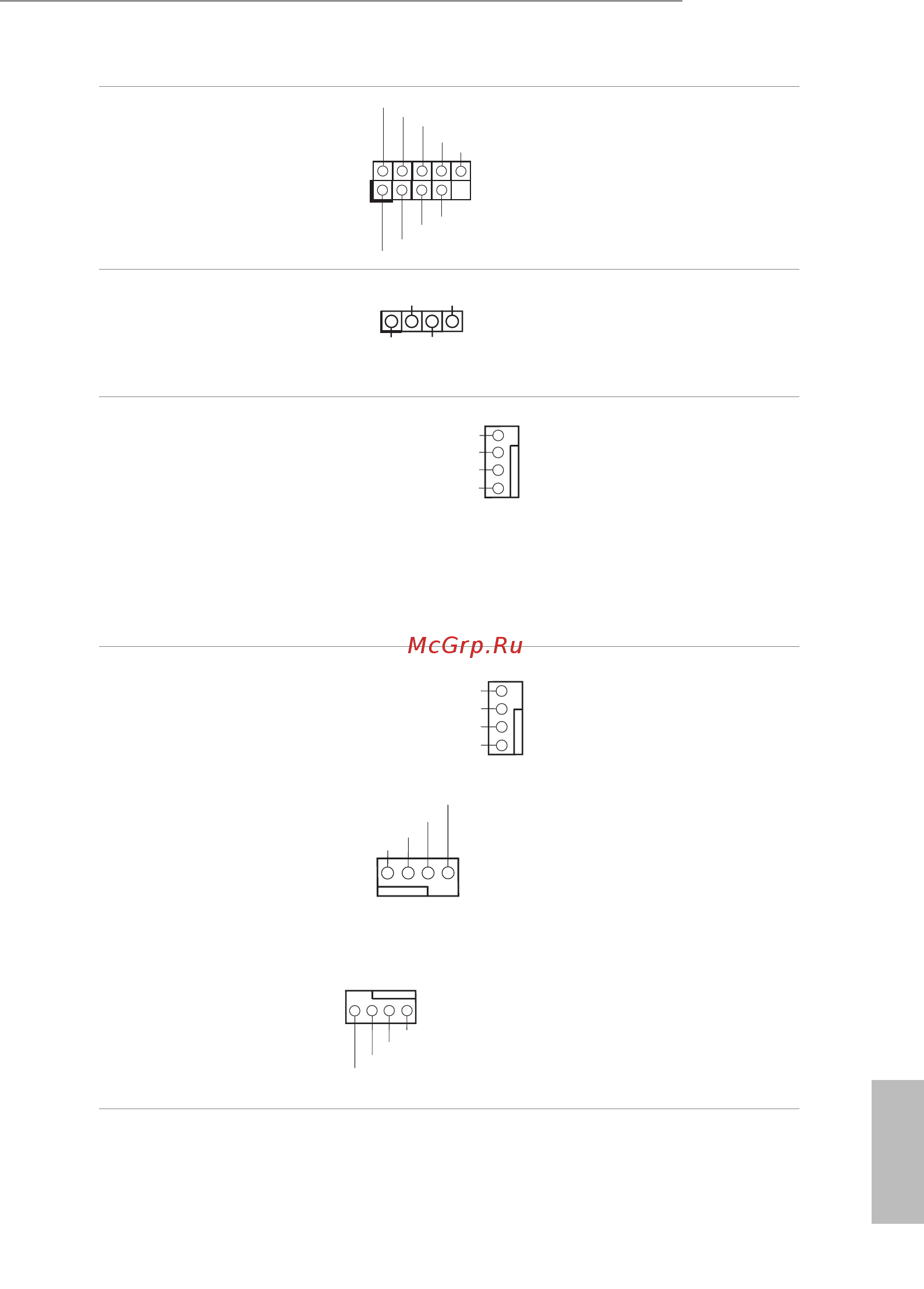

USB 2.0 Header
(9-pin USB_3_4)
(see p.7, No. 15)
1
USB_PWR
P-2
GND
DUMMY
USB_PWR
P+2
GND
P-3
P+3
Besides two USB 2.0 ports
on the I/O panel, there is one
header on this motherboard.
Each USB 2.0 header can
support two ports.
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.7, No. 25)
1
+5V
DUMMY
DUMMY
SPEAKER
Please connect the chassis
speaker to this header.
CPU Fan Connectors
(4-pin CPU1_FAN1)
(see p.7, No. 8)
(4-pin CPU2_FAN1)
(see p.7, No. 51)
GN D
+12V
FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
is motherboard provides
two 4-Pin CPU fan (Quiet
Fan) connectors. If you plan
to connect a 3-Pin CPU fan,
please connect it to Pin 1-3.
*For more details, please refer to the
Cooler QVL list on the ASRock Rack
website.
Front and Rear Fan
Connectors
(4-pin FRNT_FAN1)
(see p.7, No. 21)
(4-pin FRNT_FAN2)
(see p.7, No. 14)
(4-pin FRNT_FAN3)
(see p.7, No. 9)
(4-pin FRNT_FAN4)
(see p.7, No. 13)
(4-pin R EAR _FAN1)
(see p.7, No. 49)
(4-pin REAR_FAN2)
(No. 55)
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE_CONTROL
GND
1
2
3
4
FAN_SPEED
FAN_SPEED_CONTROL
GND
FAN_VOLTAGE
1234
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE_CONTROL
GND
4 3 2 1
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
