User’s Manual of VC-820M / VC-2400MR Series

4.15.2.2 QoS PerPort Configuration

Configure the priority level for each port. With the drop-down selection item of Priority Type above being selected as

Port-based, this control item will then be available to set the queuing policy for each port.

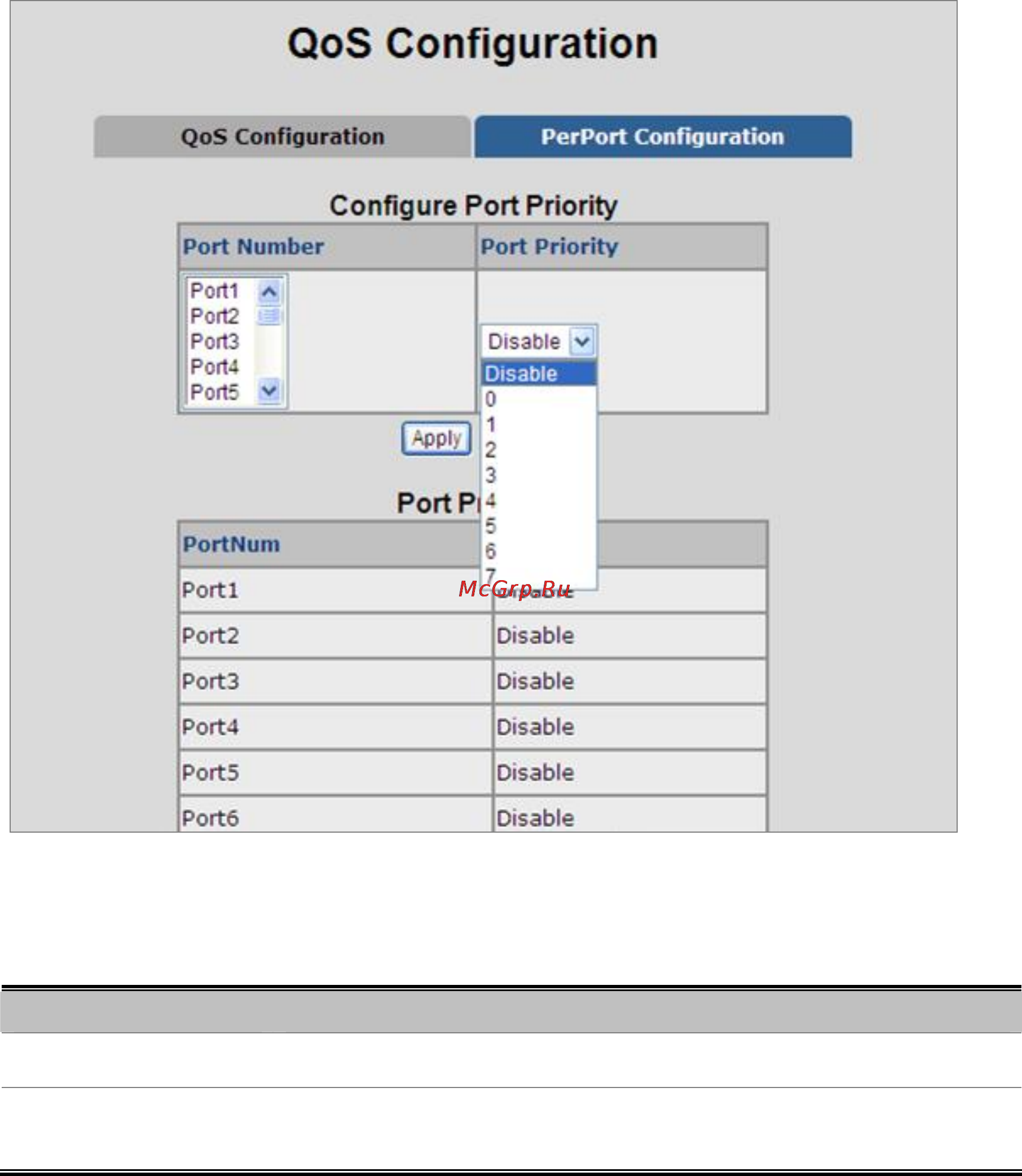

Figure 4-15-3: QoS Configuration – Port-Based Priority

The table includes the following fields:

Object Description

Port Number:

Indicate port 1 to port 10.

Port Priority:

Each port has 8 priority levels—0~7 or Disable to be chosen.

7 is the highest priority.

135
