User’s Manual of VC-820M / VC-2400MR Series

4.5.3 State Activity

Having set up the LACP aggregator on the tab of Aggregator Setting, you can configure the state activity for the members of

the LACP trunk group. You can tick or cancel the checkbox beside the state label. When you remove the tick mark of the

port and click

Apply

, the port state activity will change to

Passive

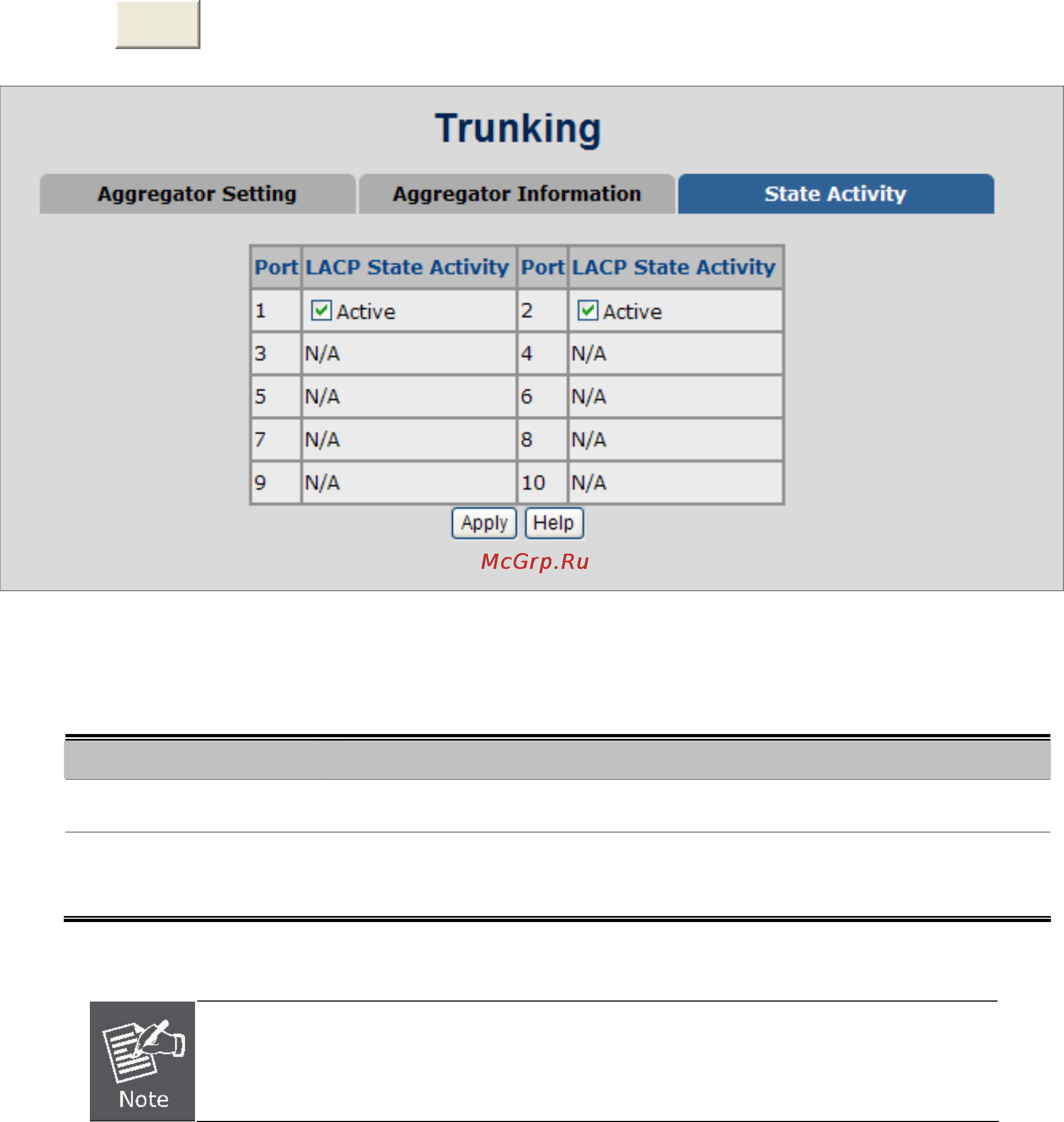

Figure 4-5-7: State Activity of Switch 1

The page includes the following fields:

Object Description

Active: The port automatically sends LACP protocol packets.

Passive:

The port does not automatically send LACP protocol packets, and responds only

if it receives LACP protocol packets from the opposite device.

A link having two passive LACP nodes will not perform dynamic LACP trunk because both

ports are waiting for an LACP protocol packet from the opposite device.
