User’s Manual of VC-820M / VC-2400MR Series

Main Menu

Using the onboard web agent, you can define system parameters, manage and control the Managed Switch, and all its

ports, or monitor network conditions. Via the Web-Management, the administrator can setup the Managed Switch by select

the functions those listed in the Main Function. The screen in Figure 4-1-4 appears.

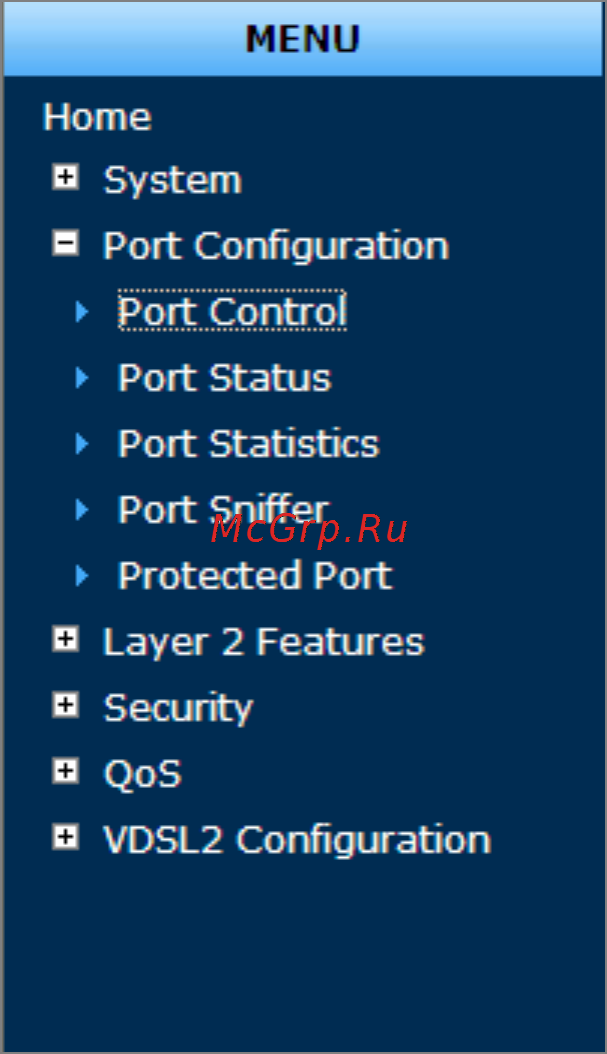

Figure 4-1-4: VC-820M / VC-2400MR series Managed Switch Main Functions Menu

4.2 System

Use the System menu items to display and configure basic administrative details of the Managed Switch. Under System the

following topics are provided to configure and view the system information: This section has the following items:

■ System Information Provides basic system description, including contact information.

■ IP Configuration Sets the IP address for management access.

■ Console Information Displays the required console settings on the Managed Switch.

■ SNMP Configuration Configure SNMP agent and SNMP Trap.

■ Syslog Setting Configure logging of messages and assign IP address of remote Syslog

servers.

■ Firmware Upgrade Upgrade the firmware via TFTP server or Web Brower file transfer.

■ Configuration Backup Save/view the Managed Switch configuration to remote host.

Upload the switch configuration from remote host.

■ Factory Default Reset the configuration of the Managed Switch.

■ System Reboot Restarts the Managed Switch.
