Planet VC-2400MR48 [213/215] A rj 21 telco 50 cable pin out

User’s Manual of VC-820M / VC-2400MR Series

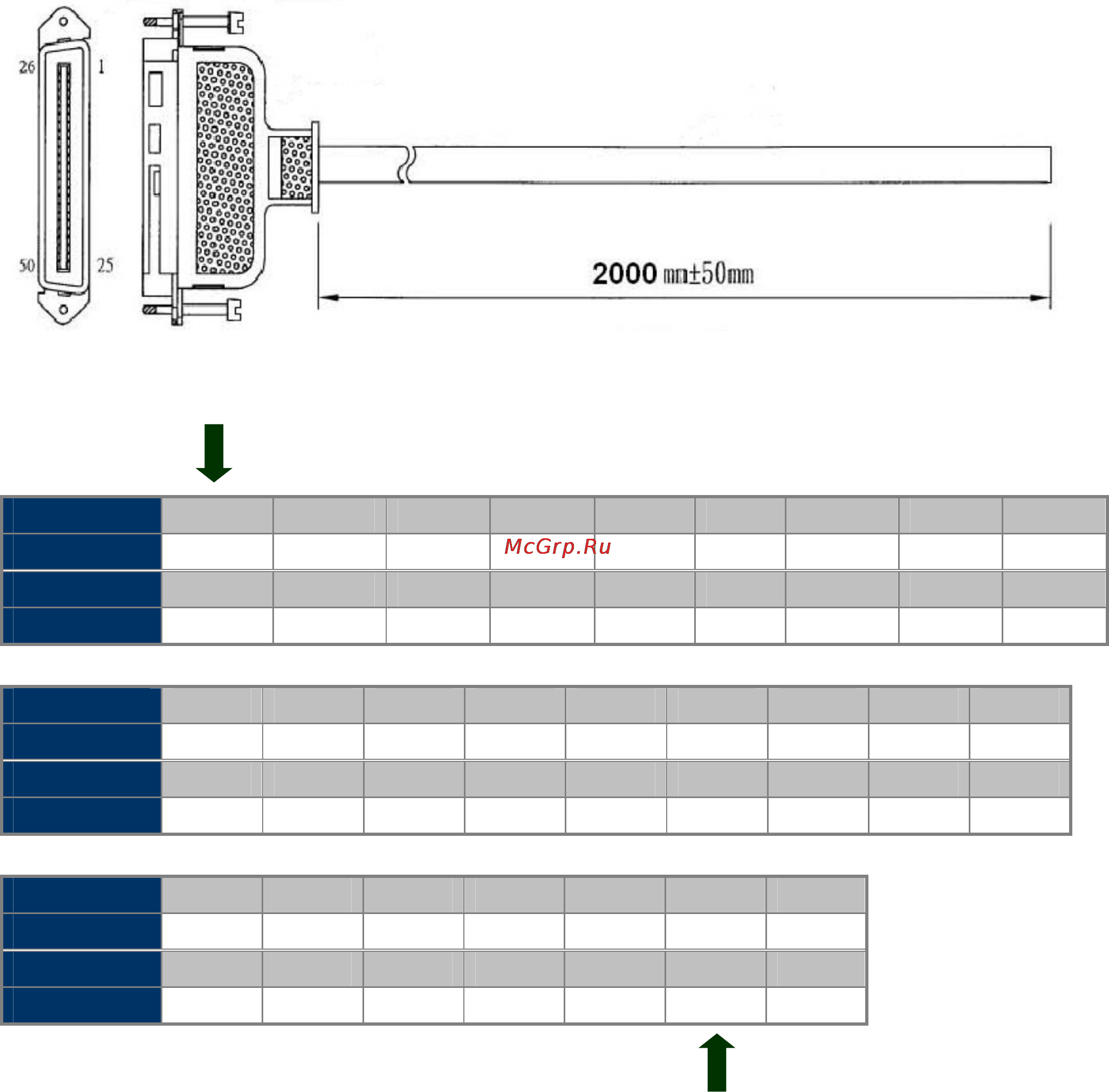

A.4 RJ-21 / Telco 50 Cable pin out

Port-24

Connector PIN 1 2 3 4 5 6 7 8 9

Wire Color Blue Orange Green Brown Grey Blue Orange Green

Brown

Connector PIN 26 27 28 29 30 31 32 33

Wire Color White White White White White Red Red Red

Red

Connector PIN 10 11 12 13 14 15 16 17 18

Wire Color Grey Blue Orange Green Brown Grey Blue Orange Green

Connector PIN 35 36 37 38 39 40 41 42 43

Wire Color Red Black Black Black Black Black Yellow Yellow Yellow

Connector PIN 19 20 21 22 23 24 25

Wire Color Brown Grey Blue Orange Green Brown Grey

Connector PIN 44 45 46 47 48 49 50

Wire Color Yell ow Yell ow Pur ple Purple Purple Purple Purple

Port-1

213
