User’s Manual of VC-820M / VC-2400MR Series
10/100/1000Base-T Copper / 1000Base-SX/LX SFP Interface (Port-25 and Port-26)
LED Color Function
On:
To indicate the link through that port is successfully established with speed
1000Mbps
Blink:
To indicate that the switch is actively sending or receiving data over that port.
1000
LNK/ACT
Green
Off:
If 10/100 LNK/ACT LED is light, it indicates that the port is operating at 10Mbps
or 100Mbps
If LNK/ACT LED is Off, it indicates that the port is link down
On:
To indicate the link through that port is successfully established with speed
10Mbps or 100Mbps
Blink:
To indicate that the switch is actively sending or receiving data over that port.
10/100
LNK/ACT
Green
Off:
If 1000 LNK/ACT LED is light, indicates that the port is operating at 1000Mbps
If 1000 LNK/ACT LED is Off, it indicates that the port is link down

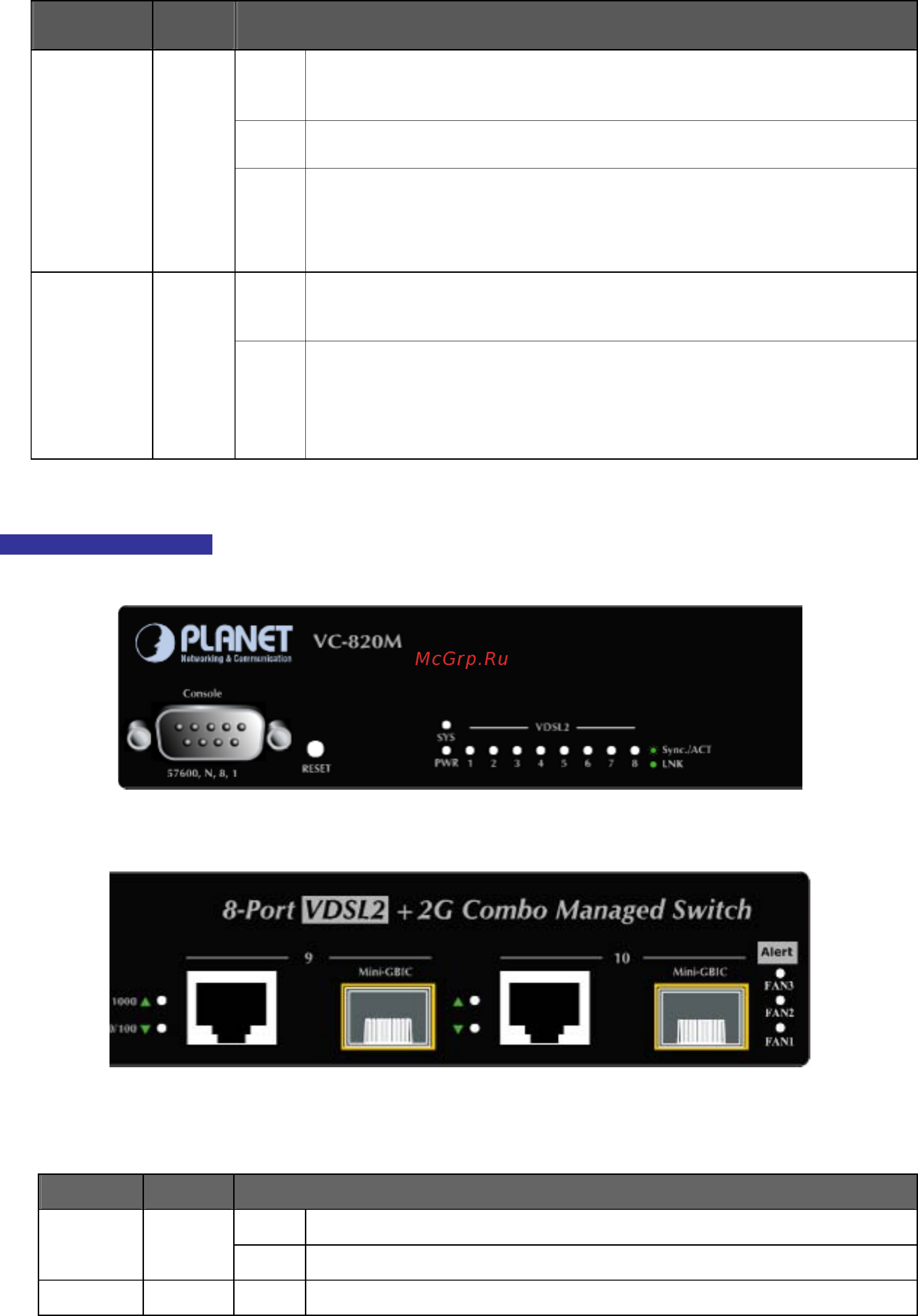

VC-820M LED indication
Figure 2-1-5: VC-820M System and Port LED panel
Figure 2-1-6: VC-820M fan alert LED panel’
System
LED Color Function
On: Indicate that the Switch is powered on
PWR Green
Off: Indicate that the Switch is powered off
SYS Orange On:
Lights to indicate the system is working.
21
