User’s Manual of VC-820M / VC-2400MR Series

 LACP enabled

Having set up the aggregator setting with LACP enabled, you will see the trunking group information between two switches

on the tab of Aggregator Information.

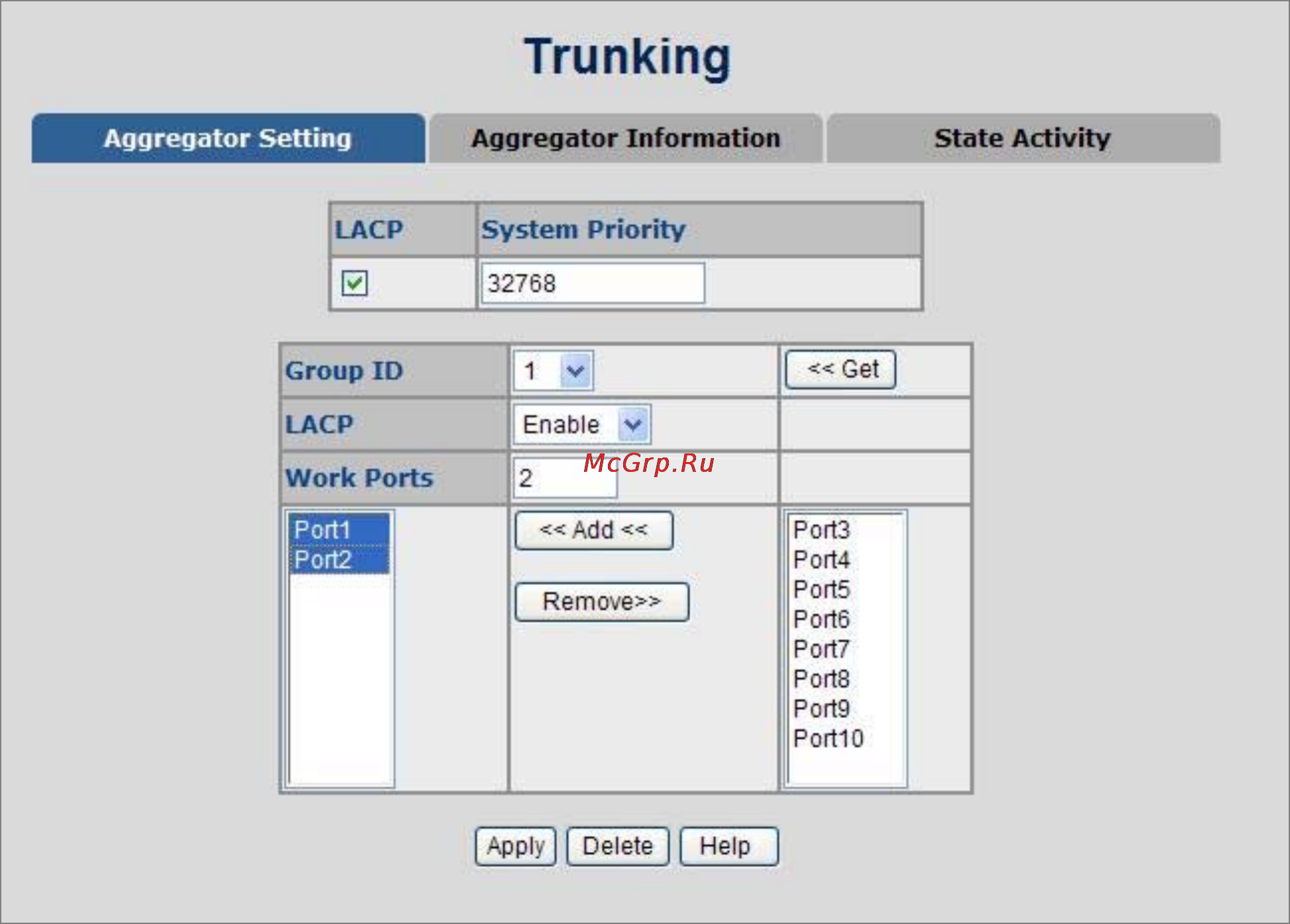

 Switch 1 configuration

1. Set System Priority of the trunk group. The default is 32768.

2. Select a trunk group ID by pull down the drop-down menu bar.

3. Enable LACP.

4. Include the member ports by clicking the Add button after selecting the port number and the column field of

Work Ports changes automatically.

Figure 4-5-4: Aggregation Information of Switch 1

5. Click on the tab of Aggregator Information to check the trunked group information as the illustration shown

above after the two switches configured.

 Switch 2 configuration

6. Set System Priority of the trunk group. For example: 1.

7. Select a trunk group ID by pull down the drop-down menu bar.

8. Enable LACP.

9. Include the member ports by clicking the Add button after selecting the port number and the column field of

Work Ports changes automatically.
