SiE30-408 Collection and Playback of Data on Checker
Service Checker Type3 Application Edition 165
Setting of reduced print

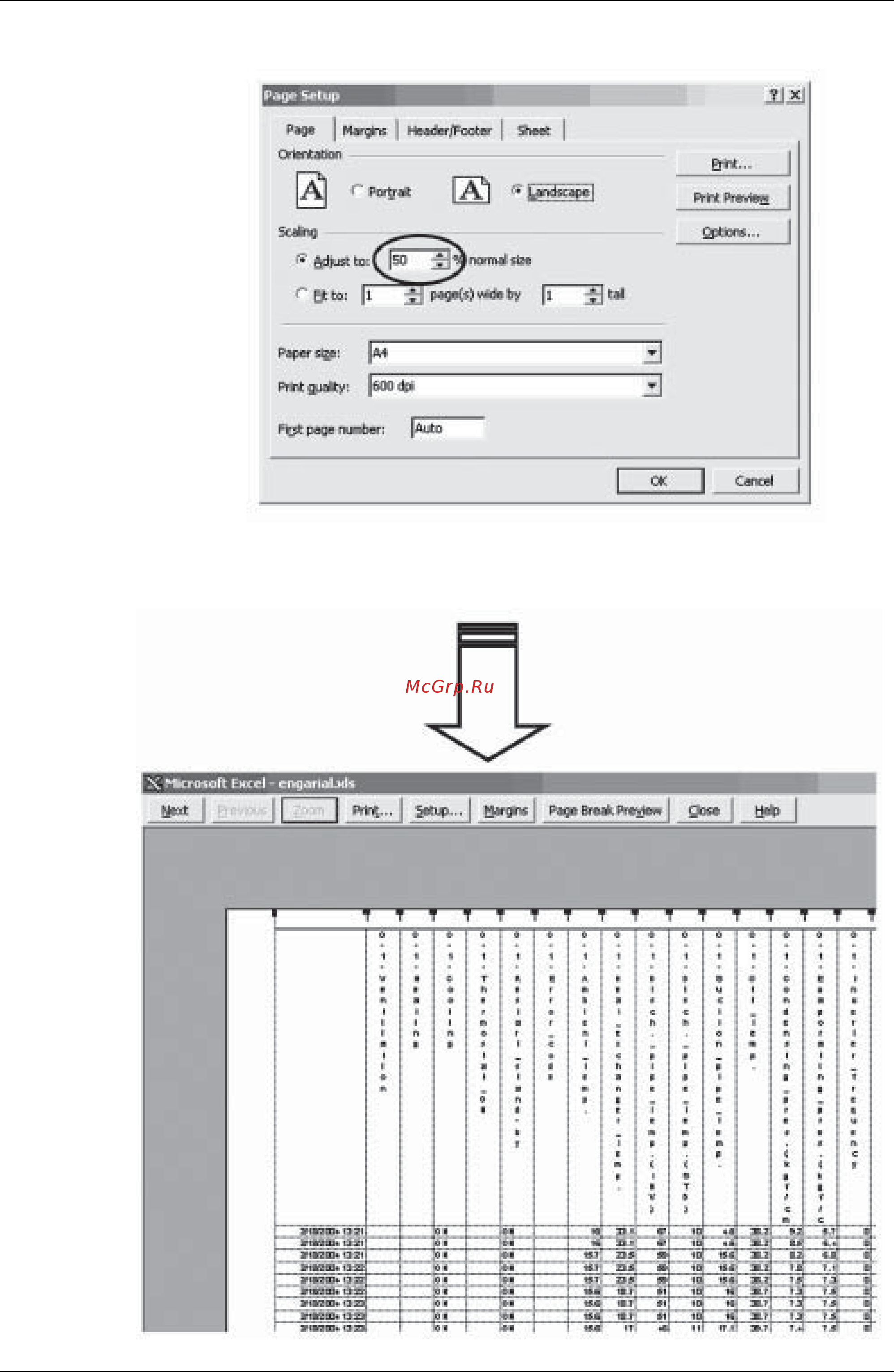

Setting figures in the "Enlarged/Reduced" box to 50% or so (initial setting to 100%) will make it
possible to print all items in a sheet of paper. (Adjust the percent values in accordance with the
number of data items to be printed.)
Print the EXCEL data, and check and verify the data.
