Planet SGSW-24240R [108/328] User s manual of wgsw 24040 wgsw 24040r sgsw 24040 sgsw 24040r

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

108

The port settings relate to the currently selected stack unit, as reflected by the page header. This feature works across the stack.

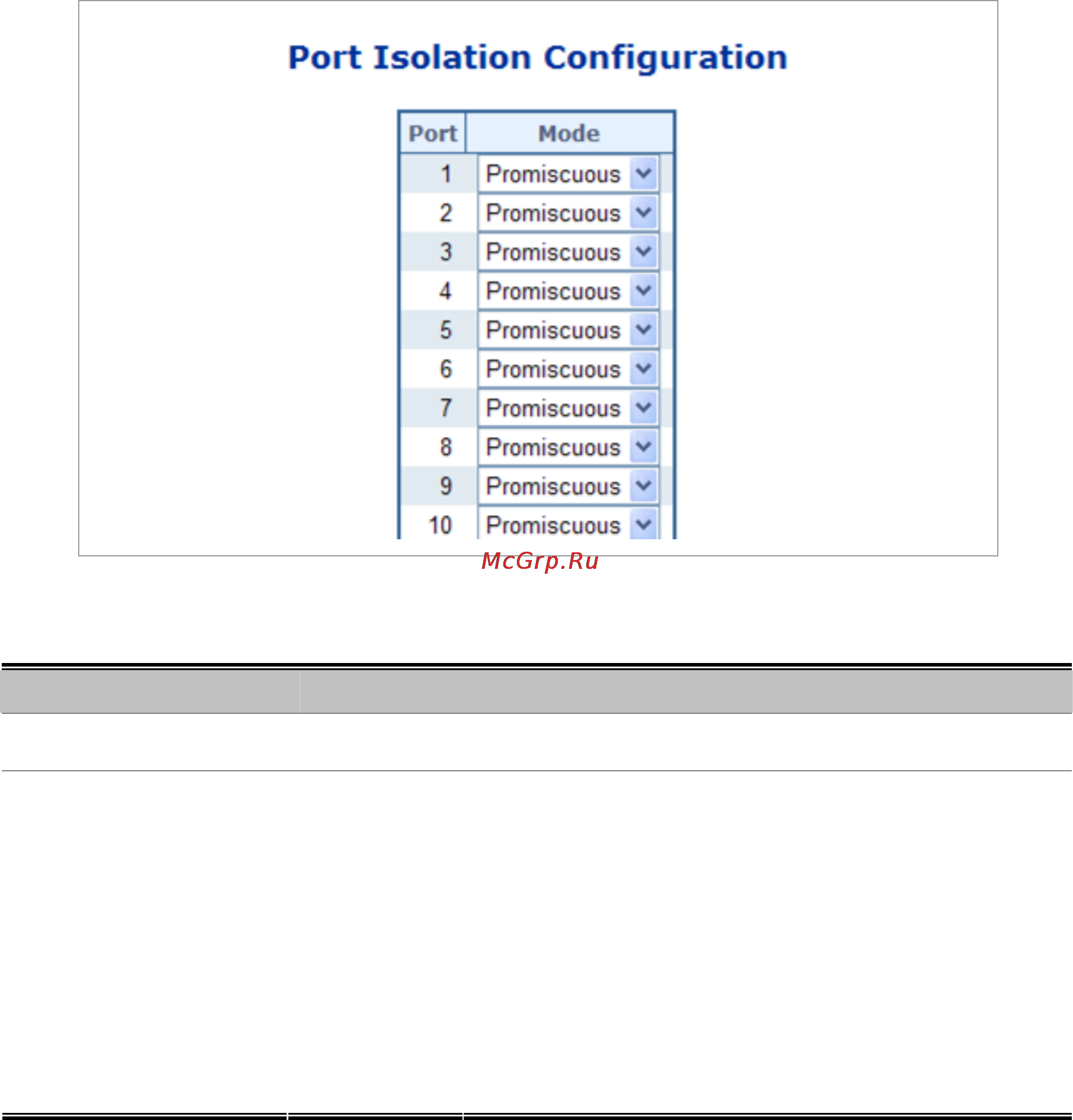

Figure 4-6-4 Private VLAN Configuration page screenshot

The page includes the following fields:

Object Description

• Port

The switch interface.

Displays private VLAN port types.

Isolated

A single stand-alone VLAN that contains one promiscuous

port and one or more isolated (or host) ports. This VLAN

conveys traffic between the isolated ports and a lone

promiscuous port.

• PVLAN Port Type

- Promiscuous

A promiscuous port can communicate with all the interfaces

within a private VLAN.

This is the default setting.
