Planet SGSW-24240R [128/328] User s manual of wgsw 24040 wgsw 24040r sgsw 24040 sgsw 24040r

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

128

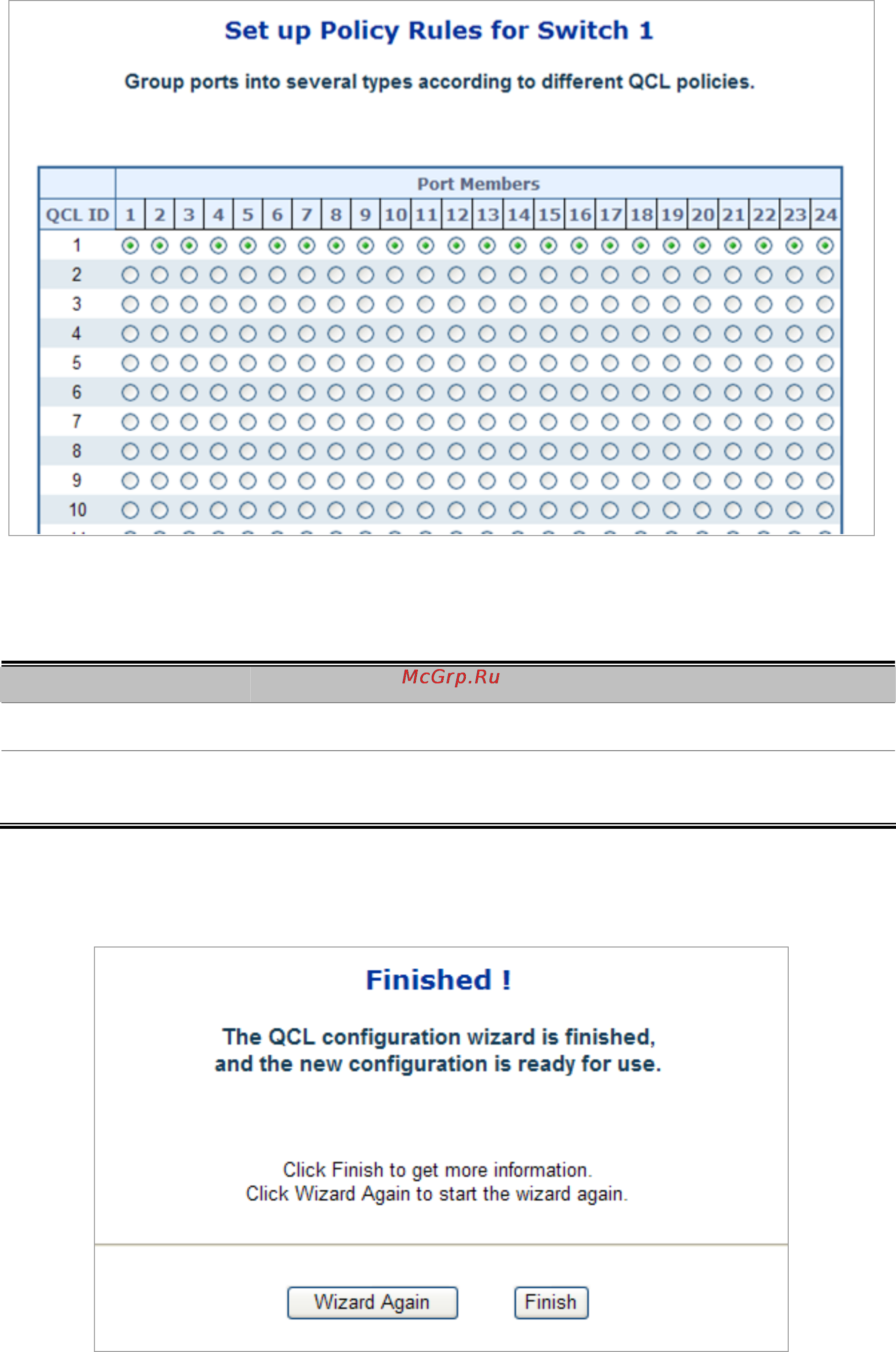

Figure 4-8-6 Set up Policy Rules page screenshot

The page includes the folling fileds:

Object Description

• QCL ID

Frames that hit this QCE are set to match this specific QCL.

• Port Members

A row of radio buttons for each port is displayed for each QCL ID. To include a

port in a QCL member, click the radio button.

Once the QCL configuration wizard is finished, the below screen appears.
