Planet SGSW-24240R [221/328] Configure ip address

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

221

1. For security reason, please change and memorize the new password after this first setup.

2. Only accept command in lowercase letter under console interface.

Configure IP address

The WGSW / SGSW Managed Switch is shipped with default IP address as following.

IP Address : 192.168.0.100

Subnet Mask : 255.255.255.0

To check the current IP address or modify a new IP address for the Switch, please use the procedures as follow:

 Show the current IP address

1. On ”Switch/> ” prompt, enter “show ip”.

2. The screen displays the current IP address, Subnet Mask and Gateway. As show in Figure 5-2.

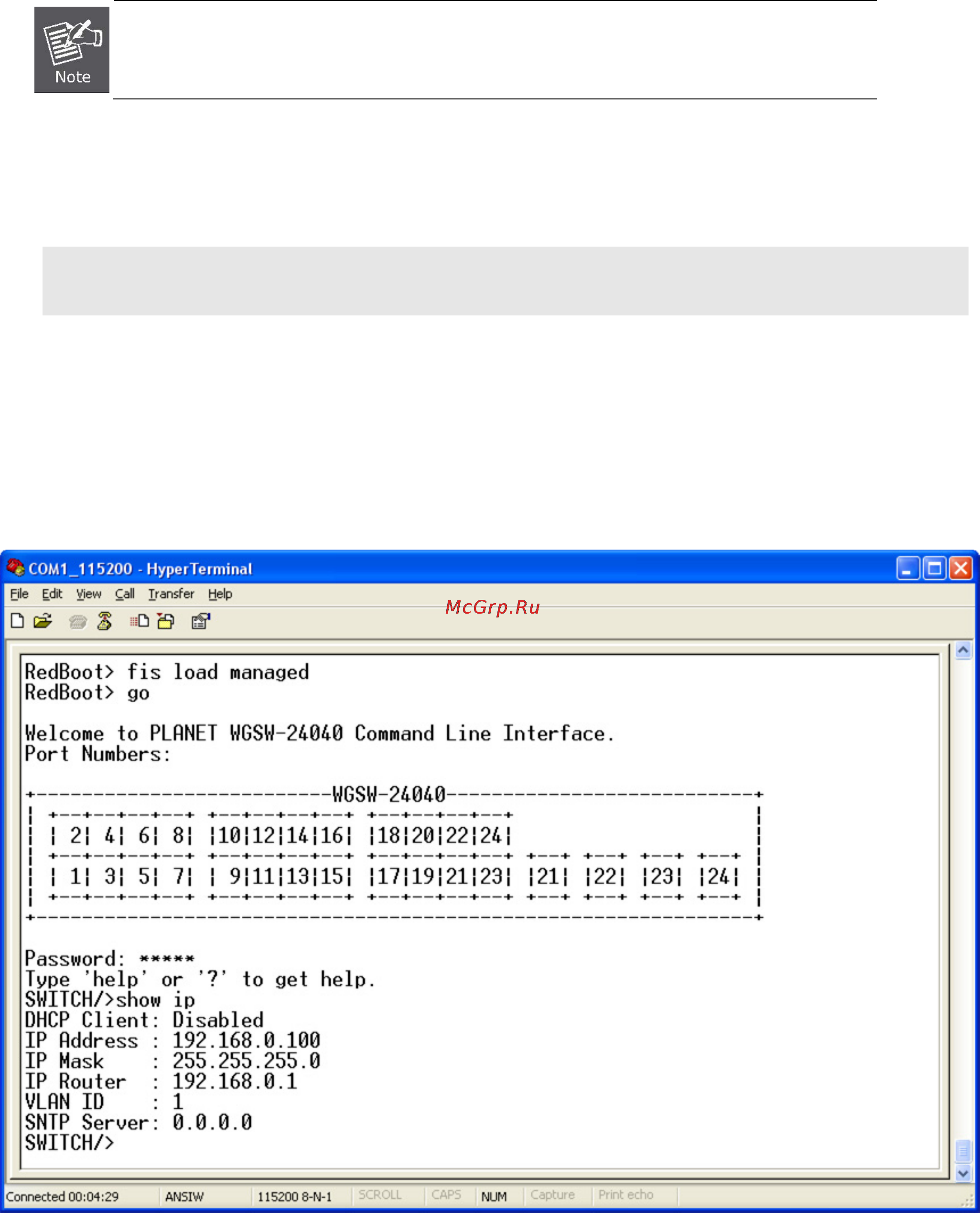

Figure 5-2 Show IP information screen

 Configure IP address
