User’s Manual of WGSW-24040 / WGSW-24040R
SGSW-24040 / SGSW-24040R
29
FAN1 Alert Green Lights to indicate that the FAN1 failure
FAN2 Alert Green Lights to indicate that the FAN2 failure
FAN3 Alert Green Lights to indicate that the FAN3 failure
10/100/1000Base-T interfaces
LED Color Function
Lights:
To indicate the link through that port is successfully established with speed
10Mbps or 100Mbps or 1000Mbps
Blink:
To indicate that the switch is actively sending or receiving data over that port.
10/100/1000
LNK/ACT
Green
Off:
If L10/100 NK/ACT LED light-> indicate that the port is operating at 10Mbps or
100Mbps
If LNK/ACT LED Off -> indicate that the port is link down
Lights:
To indicate the port is providing 48VDC in-line power
PoE In-Use Orange
Off:
To indicate the connected device is not a PoE Powered Device (PD)
1000Base-SX/LX SFP interfaces (Shared Port-21~Port-24)
LED Color Function
Lights:
To indicate the link through that SFP port is successfully established with
speed 1000Mbps
1000
LNK
Green
Off:
To indicate that the SFP port is link down

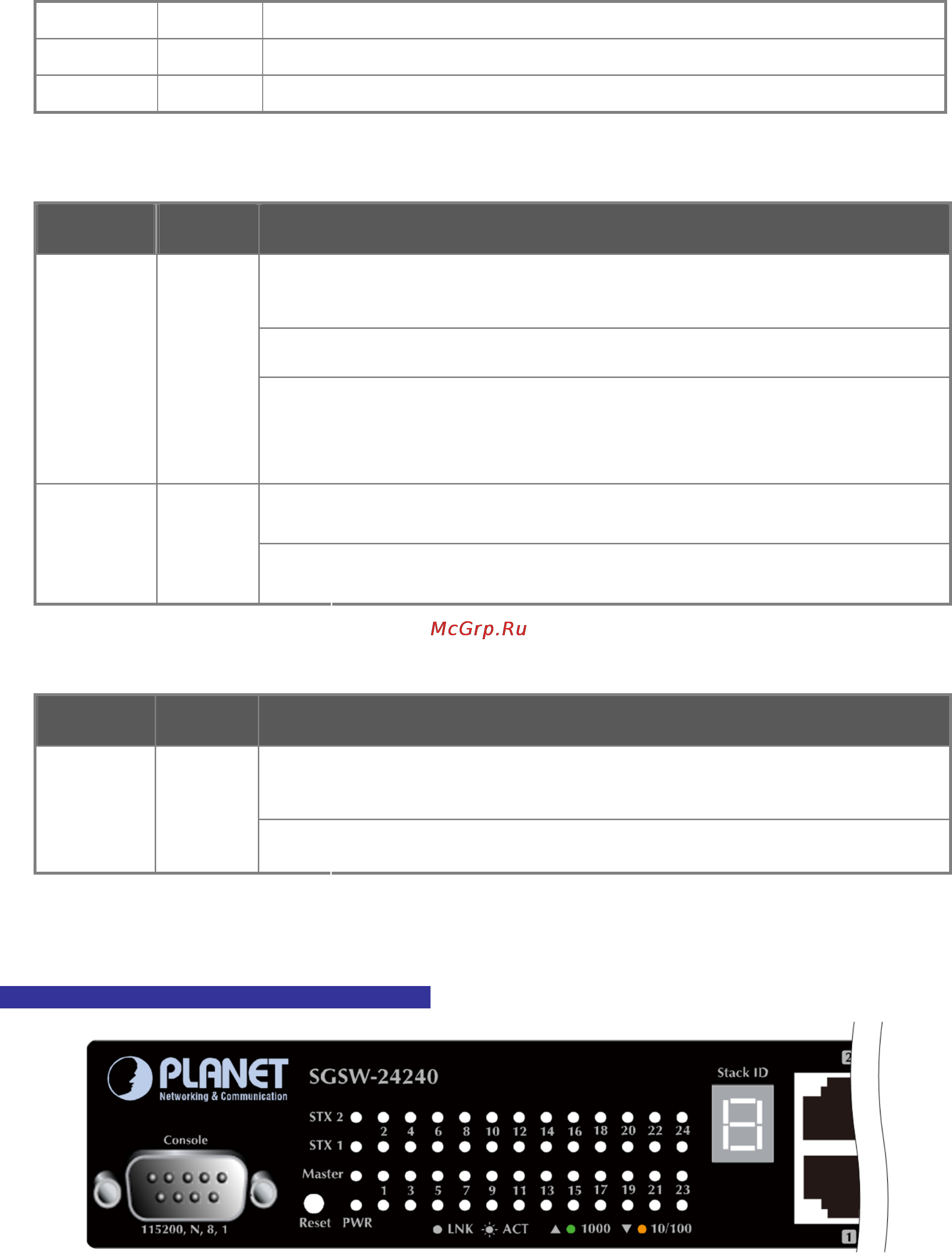

SGSW-24240 / SGSW-24240R LED indication
Figure 2-8 SGSW-24240 / SGSW-24240R LED panel
