Planet SGSW-24240R [54/328] User s manual of wgsw 24040 wgsw 24040r sgsw 24040 sgsw 24040r

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

Main Menu

Using the onboard web agent, you can define system parameters, manage and control the Managed Switch, and all its ports, or

monitor network conditions. Via the Web-Management, the administrator can setup the Managed Switch by select the functions

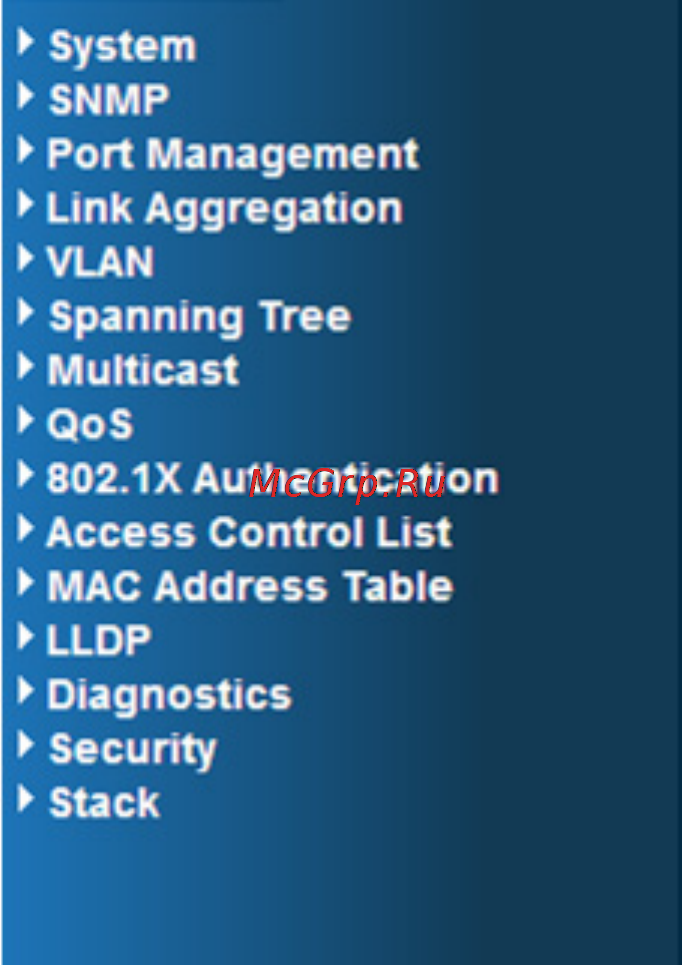

those listed in the Main Function. The screen in Figure 4-1-5 appears.

Figure 4-1-5 WGSW/SGSW Managed Switch Main Funcrions Menu
