User’s Manual of WGSW-24040 / WGSW-24040R
SGSW-24040 / SGSW-24040R
24
2. INSTALLATION
This section describes the hardware features and installation of the Managed Switch on the desktop or rack mount. For easier
management and control of the Managed Switch, familiarize yourself with its display indicators, and ports. Front panel
illustrations in this chapter display the unit LED indicators. Before connecting any network device to the Managed Switch, please
read this chapter completely.
2.1 Hardware Description
2.1.1 Switch Front Panel
The unit front panel provides a simple interface monitoring the switch. Figure 2-1 to 2-4 show the front panel of the Managed
Switches.

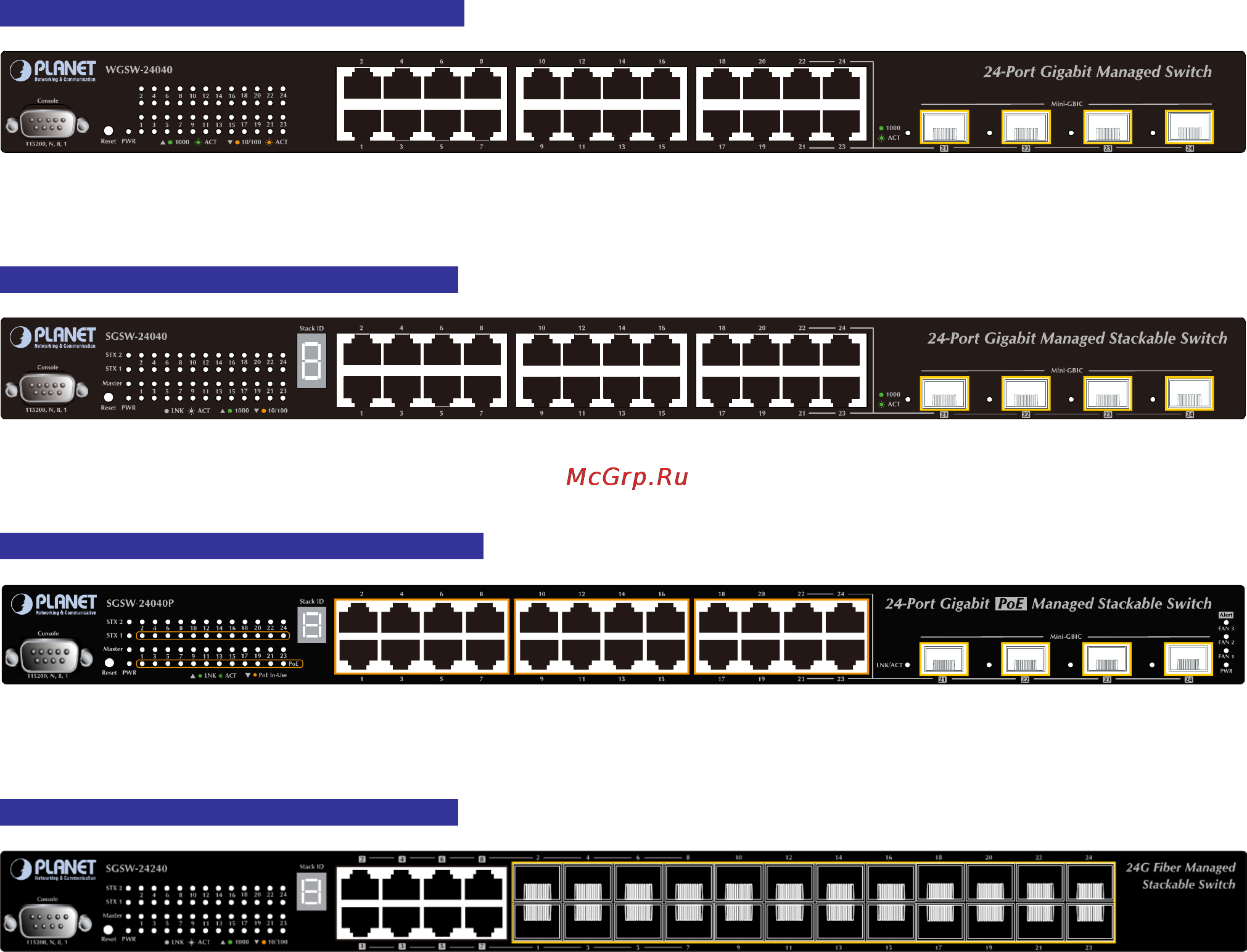

WGSW-24040 / WGSW-24040RFront Panel
Figure 2-1 WGSW-24040 / WGSW-24040R front panel.
SGSW-24040 / SGSW-24040R Front Panel
Figure 2-2 SGSW-24040 / SGSW-24040R front panel.
SGSW-24040P / SGSW-24040P4 Front Panel
Figure 2-3 SGSW-24040P / SGSW-24040P4 front panel.
SGSW-24240 / SGSW-24240R Front Panel
Figure 2-4 SGSW-24240 / SGSW-24240R front panel.
