User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

: Click to refresh the page; any changes made locally will be undone.

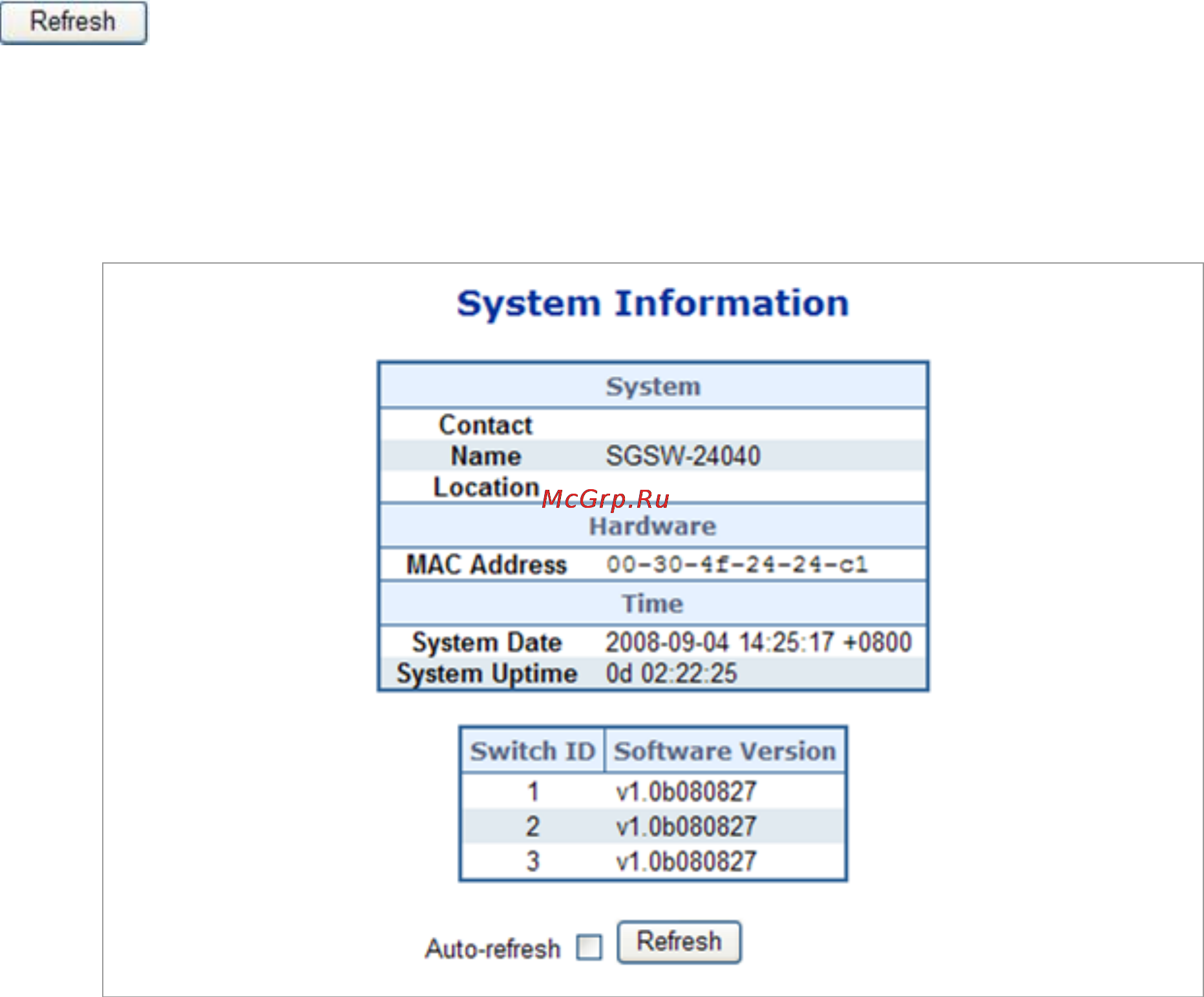

For the SGSW series stackable switch, the System Information page add additional column to identify the current switch ID of

stack member switches in a stack group. The screen as below appears:
