Planet SGSW-24240R [218/328] Poe status

User’s Manual of WGSW-24040 / WGSW-24040R

SGSW-24040 / SGSW-24040R

218

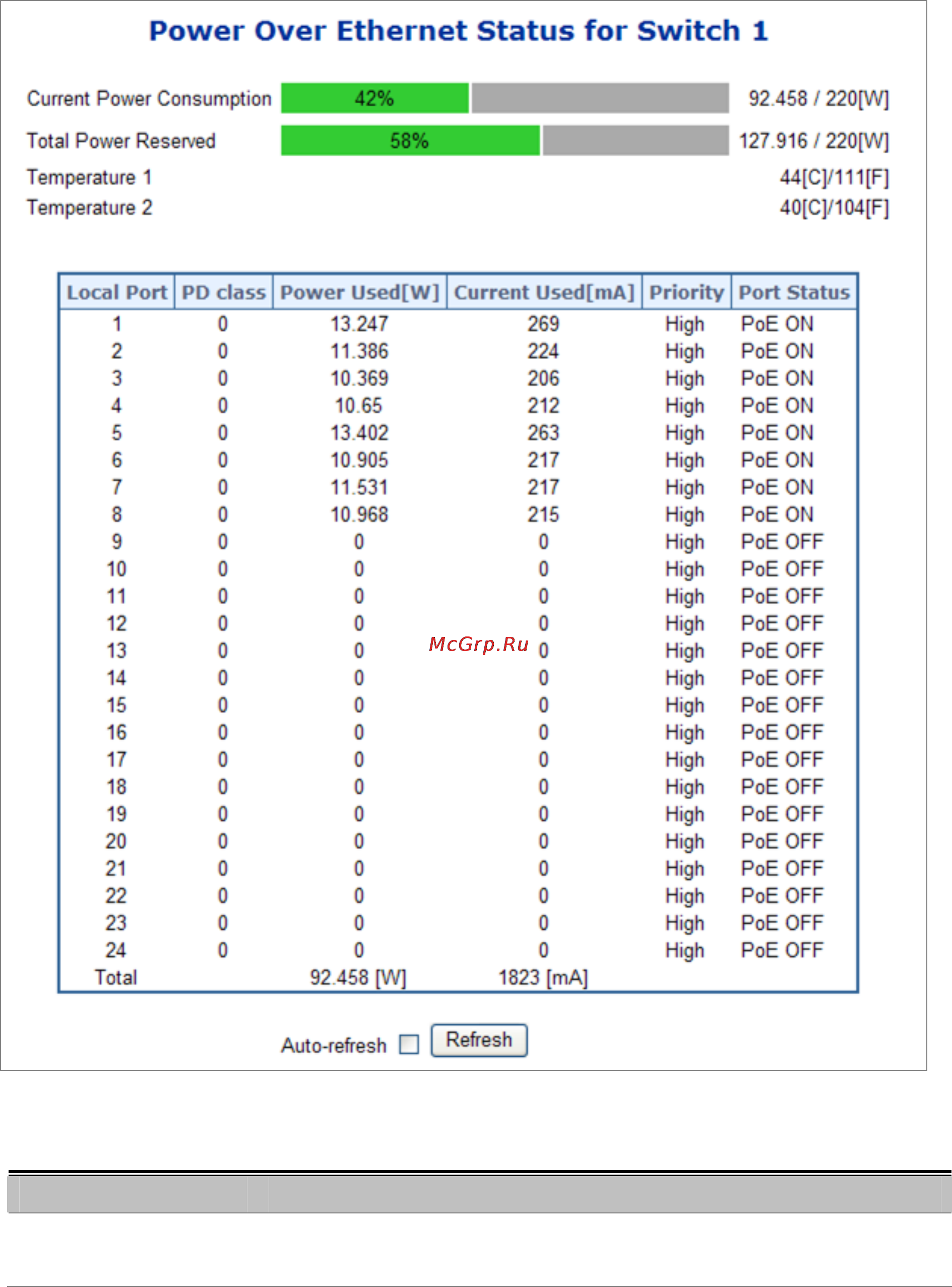

4.17.3 PoE Status

This page allows the user to inspect the total power consumption, total power reserved and current status for all PoE ports.

The page includes the following fields:

Object Description

• Current Power

Consumption

Show the total watts usage of PoE Switch.
