Step 2. Power Connections

AC Power Connection

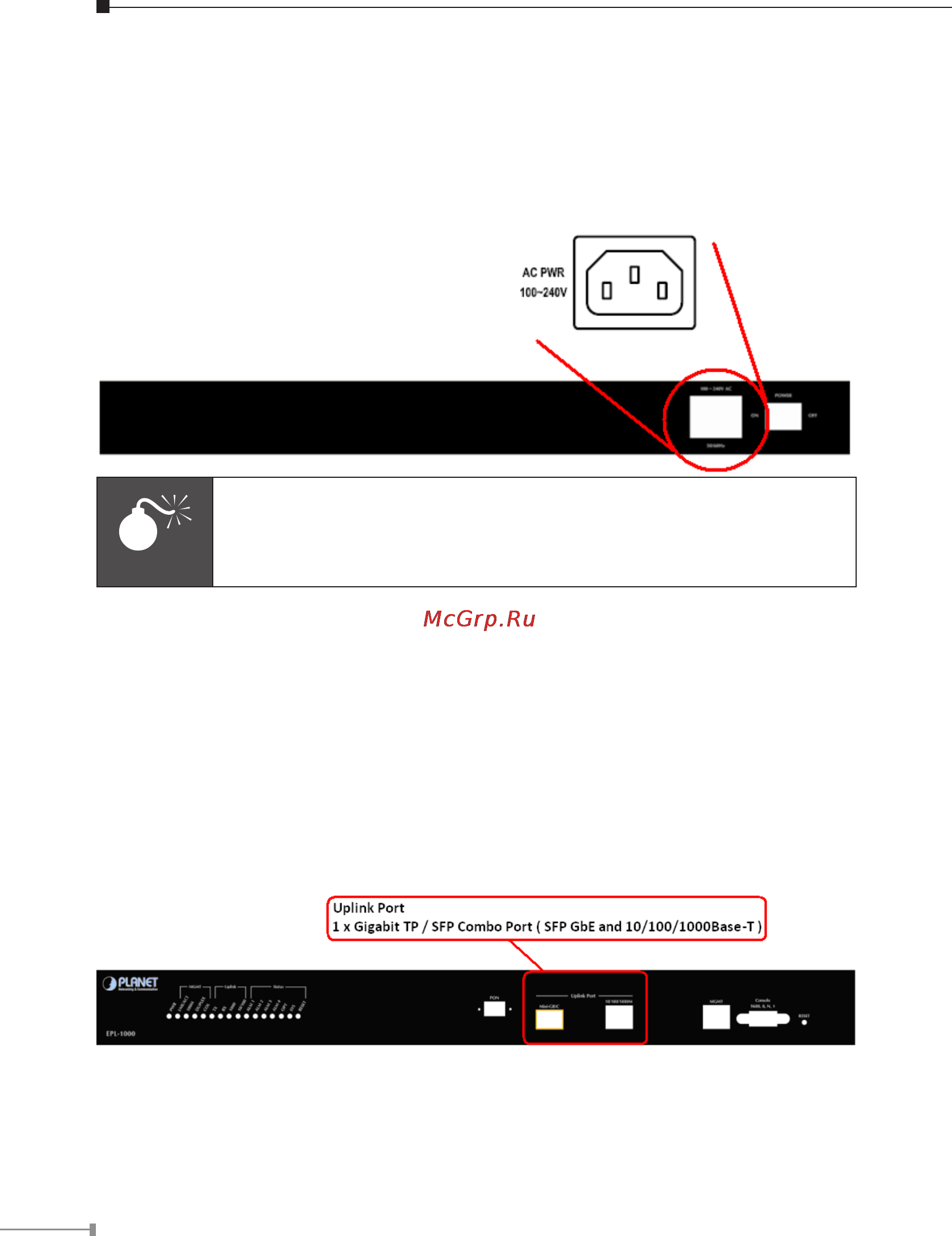

Connect the AC power cord to the AC supply socket on the rear panel of the OLT,

and plug the cord into the external power source. The voltage must be 100 to

240V AC (±10% tolerance).

Warning

Ensure that all power sources to the chassis (power distribution

panel) are turned off during the connection.

Step 3. Connecting the Uplink Interface

Uplink Connection

The system supports one Gigabit TP / SFP Combo (SFP GbE and 10/100/1000Base-

T) Interface. You can select the proper media for your applications.
