Step 4. Connecting the PON Interface

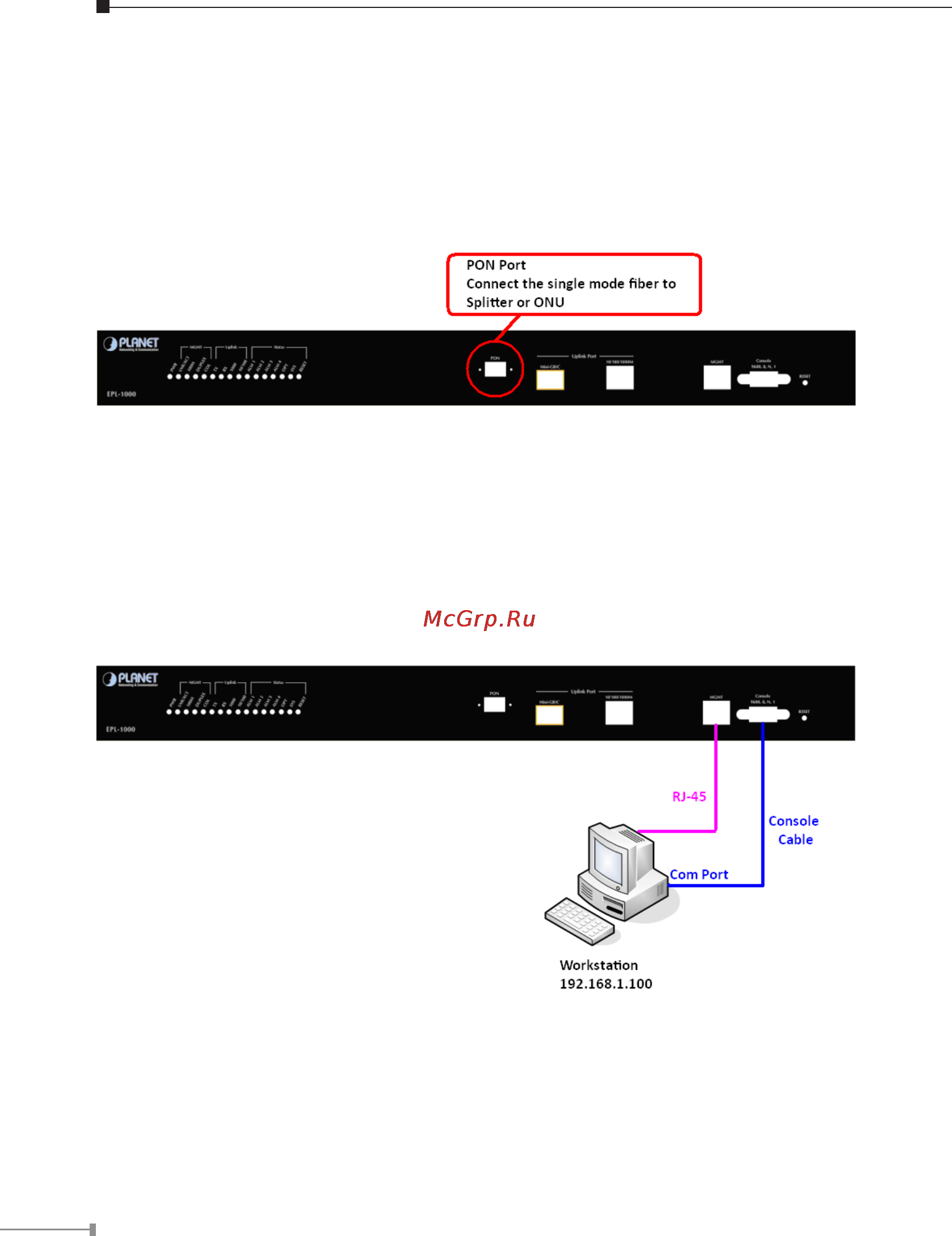

PON Connection

The system supports one xed PON port, the max. Split ratio is up to 1:32 per

PON port. Connect the single mode ber to the Splitter or ONUs. The PON port

provides the high bandwidth up to 1.25Gbps for both upstream and downstream,

up to 20km Long-Distance Coverage between equipment nodes.

Step 5. Connecting the Console Port and MGMT Port

You can use the Console Port and MGMT Port to manage the EPL-1000. The

connection gure is shown below; please follow next section to setup your system.
