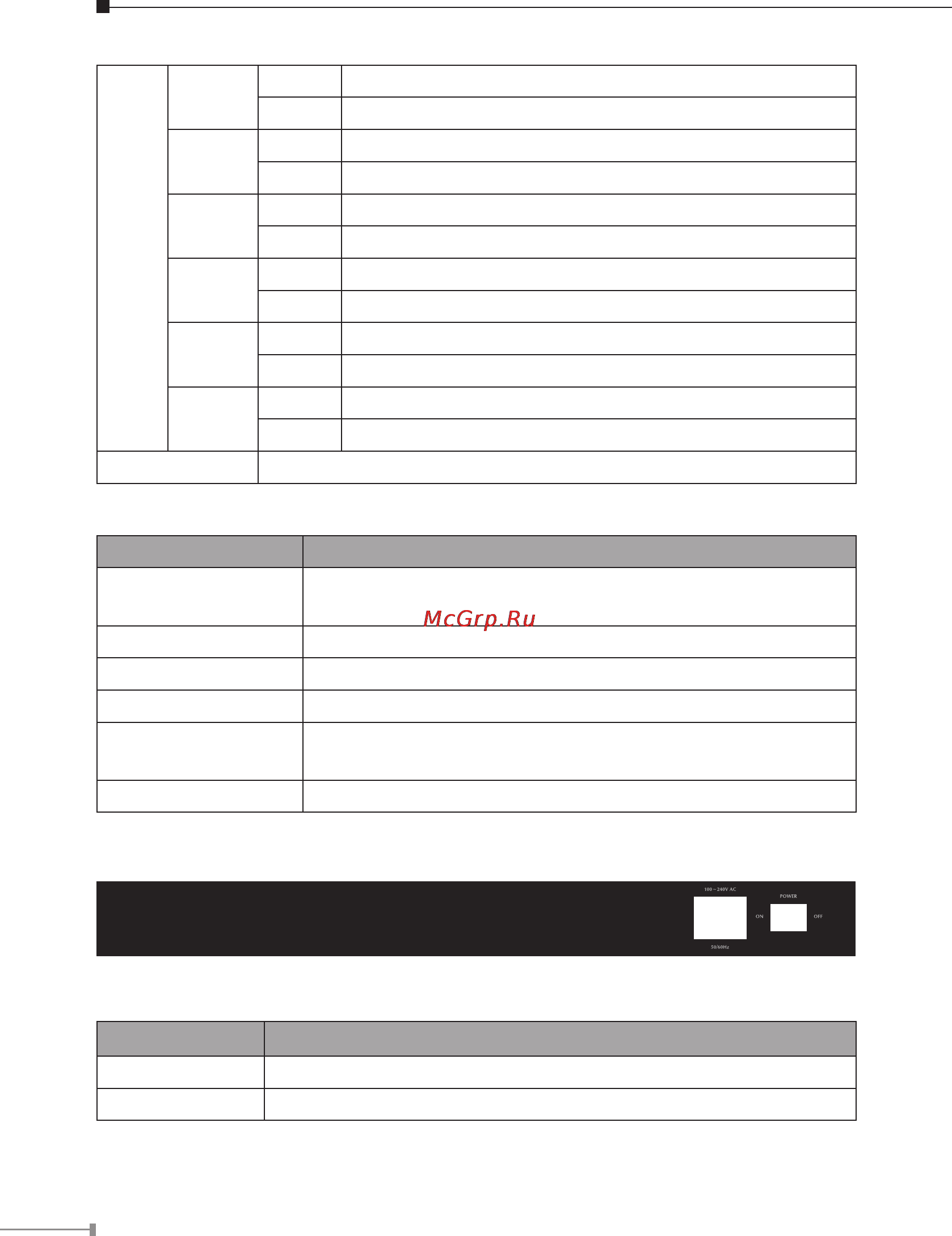

Planet EPL-1000 [6/20] Front panel port definition

Status

ALM1

Glitter There will be one ONU or OLT alarm

Off Normal work status

ALM2

Glitter There will be one ONU or OLT alarm

Off Normal work status

ALM3

Glitter There will be one ONU or OLT alarm

Off Normal work status

ALM4

Glitter There will be one ONU or OLT alarm

Off Normal work status

OPT

Glitter The link to the switch ber port is failing

Off The link to the switch ber port is normal

SYS

Glitter The link to the local 1000Mbps port is failing

Off The link to the local 1000Mbps port is normal

RESET ON when the system reset button is pushed

Front Panel Port Denition

Port Port Description

PON Port

The PON connector allows data communication between

the ONU and the OLT through a single mode ber.

Mini-GBIC Port Gigabit Ethernet SFP trunk port.

10/100/1000M Port Gigabit Ethernet electrical trunk port.

MGMT Port RJ-45 (10/100Base-TX) Port for GUI Utility Management.

Console Port

(9600, 8, N, 1)

RS-232 port for system conguration and maintenance.

RESET Reboot EPL-1000

Rear Panel

Rear Panel Port Denition

Port Port Description

AC PWR AC Power cord plug-in, 100 - 240V AC is allowed.

Power Switch Power On / Off switch
