Planet EPL-1000 [18/20] Internet
![Planet EPL-1000 [18/20] Internet](/views2/1070906/page18/bg12.png)
18

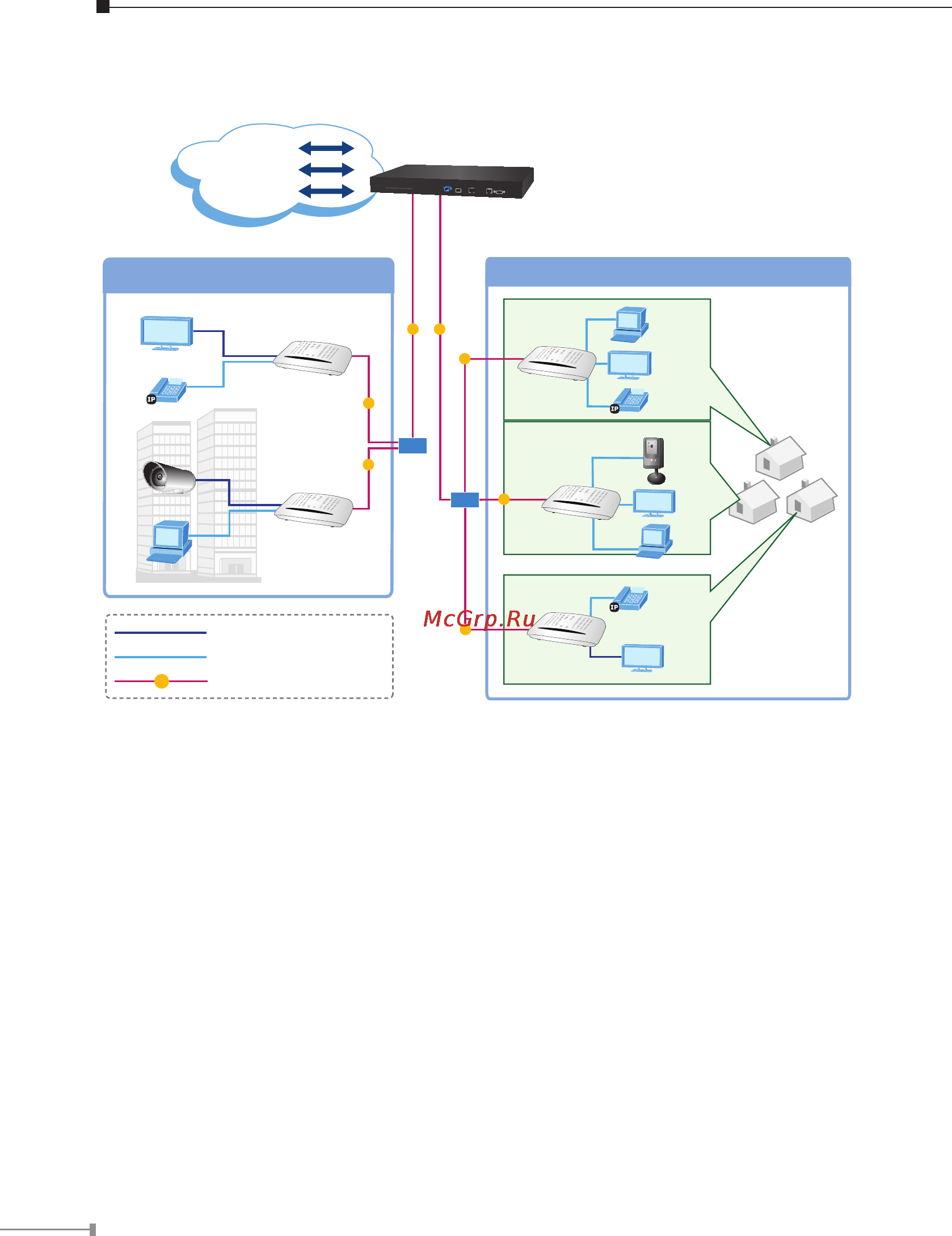

5.2 FTTx Applications (FTTH / FTTB)
IPTV
VoIP
Internet
GEPON OLT
1000Base-T UTP
100Base-TX UTP
PON
Passive Optical Network
Community
High Rise Buildings
PC
Camera
IPTV
IP Phone
EPN-102
EPN-102
PC
IPTV
IP Phone
PC
IPTV
IP Phone
IPTV
Splitter
PON
Splitter
PON
PON PON
PON
PON
PON
FTTB FTTH
EPN-104
EPN-104
EPN-102
FTTx Applications
FTTx is the main trend and nal target for the development of optical communi-
cation. It can provide the high speed bandwidth to users without trafc jam.
GEPON technology is the most practical and feasible access solution for FTTx.
OLT is setup in the central equipment room of a community, to connect to the
backbone networks of data, video and voice applications.
ONU can be deployed at residential homes via passive optical distribute network
that spans up to 20km radius.
ONU can be put in a building or an end user’s room. A user can choose to use
the whole ONU alone or just one port of ONU, which is bandwidth congurable
and isolated from the rest ports of the ONU.
l
l
l
l
l
