Front Panel

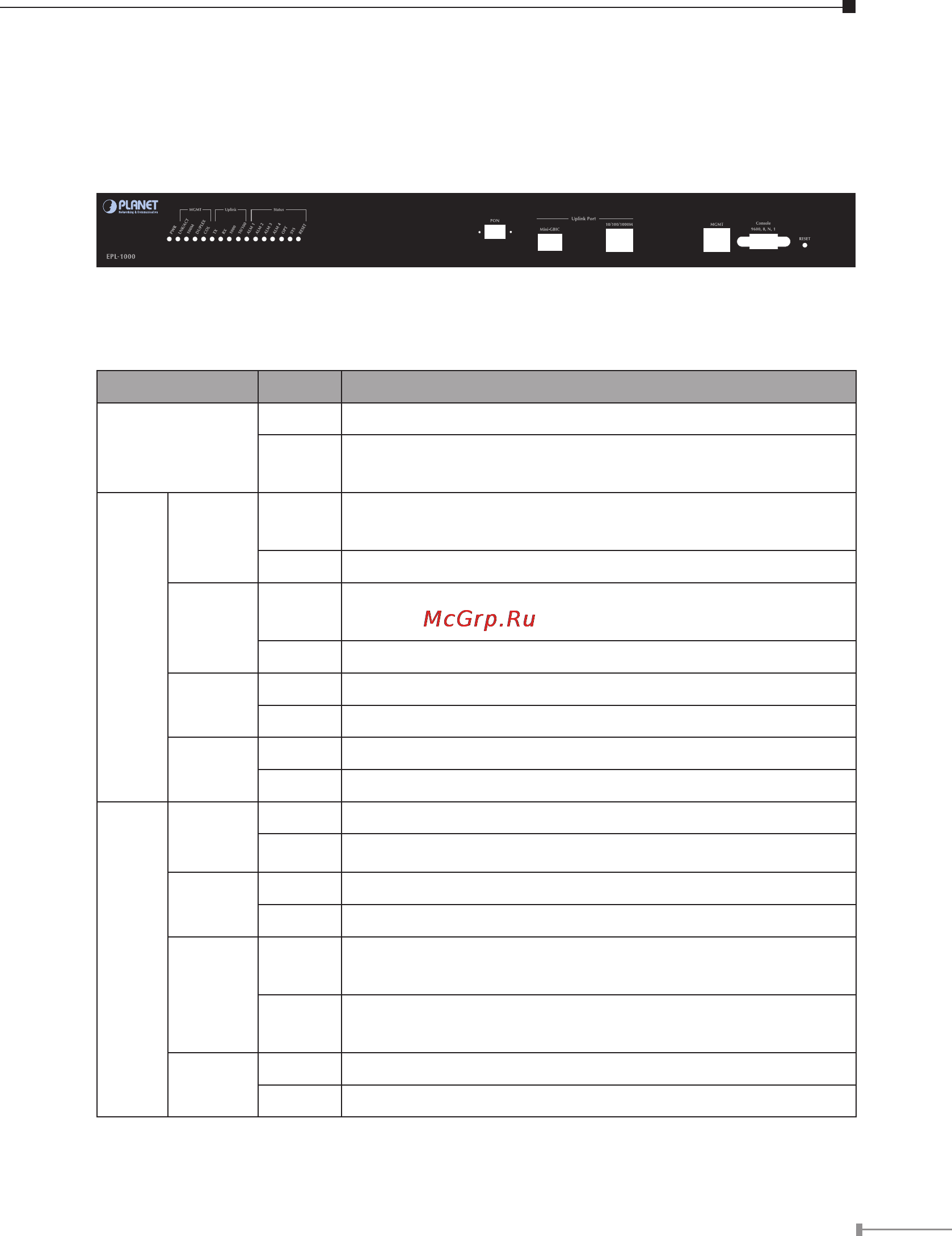

The front panel of EPL-1000 is shown below.

EPL-1000

Front Panel LED and Port denition

LED Status Description

PWR

On The indicator will light when OLT is opened

Off

Checking the power or power supply adaptor, make sure

power supply has connected well

MGMT

LNK/ACT

Light when equipment normally connect with 100Mbps ONU

port

Glitter Glitter when the port receive or transfer data

100M

Corresponding indicator is on when 100Mbps equipment

connect with relevant port

Off Be off when 100Mbps port does not joint equipment

DUPLEX

On Be on when port is working base on full duplex mode

Off Be off when port is working base on half duplex mode

COL

Glitter Collision happens base on half duplex mode

Off Normal work status

Uplink

On Be on when the 1000Mbps port is transferring data

Off Be off when the 1000Mbps port has no data to transfer

On Be on when the 1000Mbps port is receiving data

Off Be off when the 1000Mbps port has no data to receive

1000

Be on when 1000Mbps equipment connects with relevant

port

Off

Be off when 1000Mbps port does not joint relevant

equipment

10/100

On Be on when 100Mbps equipment connects with relevant port

Off Be off when the port does not joint 100Mbps equipment
