Jumpers, Headers, Connectors & Slots
Floppy Disk Connector: FDD1
The motherboard provides a standard f loppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the
prov ided f loppy drive ribbon cables.
Hard Disk Connectors: IDE1/ IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~4, Block Mode, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality.
It has two HDD connectors IDE1 (primary) and IDE2 (secondary).
The IDE connectors can connect a master and a slave driv e, so you can connect
up to f our hard disk driv es. The f irst hard drive should alway s be connected to
IDE1.
Peripheral Component Interconnect Slots: PCI 1-5
This motherboard is equipped with 5 standard PCI slots. PCI stands f or Peripheral
Component Interconnect, and it is a bus standard for expansion cards. This PCI
slot is designated as 32 bits.
Accelerated Graphics Port Slot: AGP1
Your monitor will attach directly to that v ideo card. This motherboard supports
video cards for PCI slots, but it is also equipped with an Accelerated Graphics Port
(AGP). An AGP card will take adv antage of AGP technology f or improved v ideo
efficiency and performance, especially with 3D graphics.

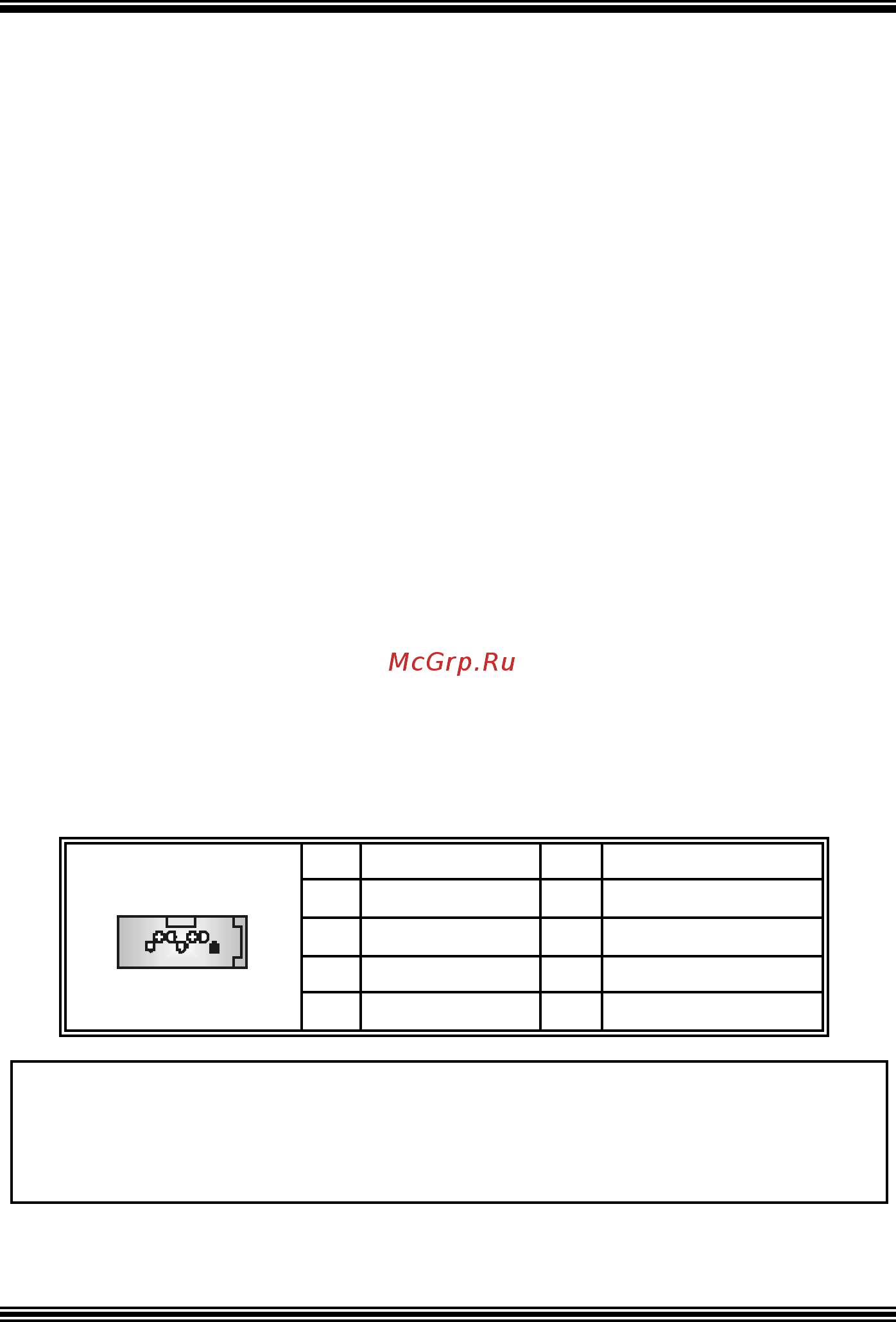

Serial ATA Connector: JS ATA1/ JS ATA2 (Optional)
The motherboard has a PCI to SATA Controller with 2 channels SATA interf ace, it
satisfies the SATA 1.0 spec and can transf er data with 1.5 Gb/s speed.
Pin Assignment Pin Assignment
1
Ground
2
TX+
3
TX-
4
Ground
5
RX-
6
RX+
1
23
4
56
7
JSATA1/ JSATA2
7
Ground
Note: 1. When plugging SATA HDD on JSATA1 connector, SATA BIOS will
automatically detect as channel 1.
2. When plugging SATA HDD on JSATA2 connector, SATA BIOS will
automatically detect as channel 0.
