12

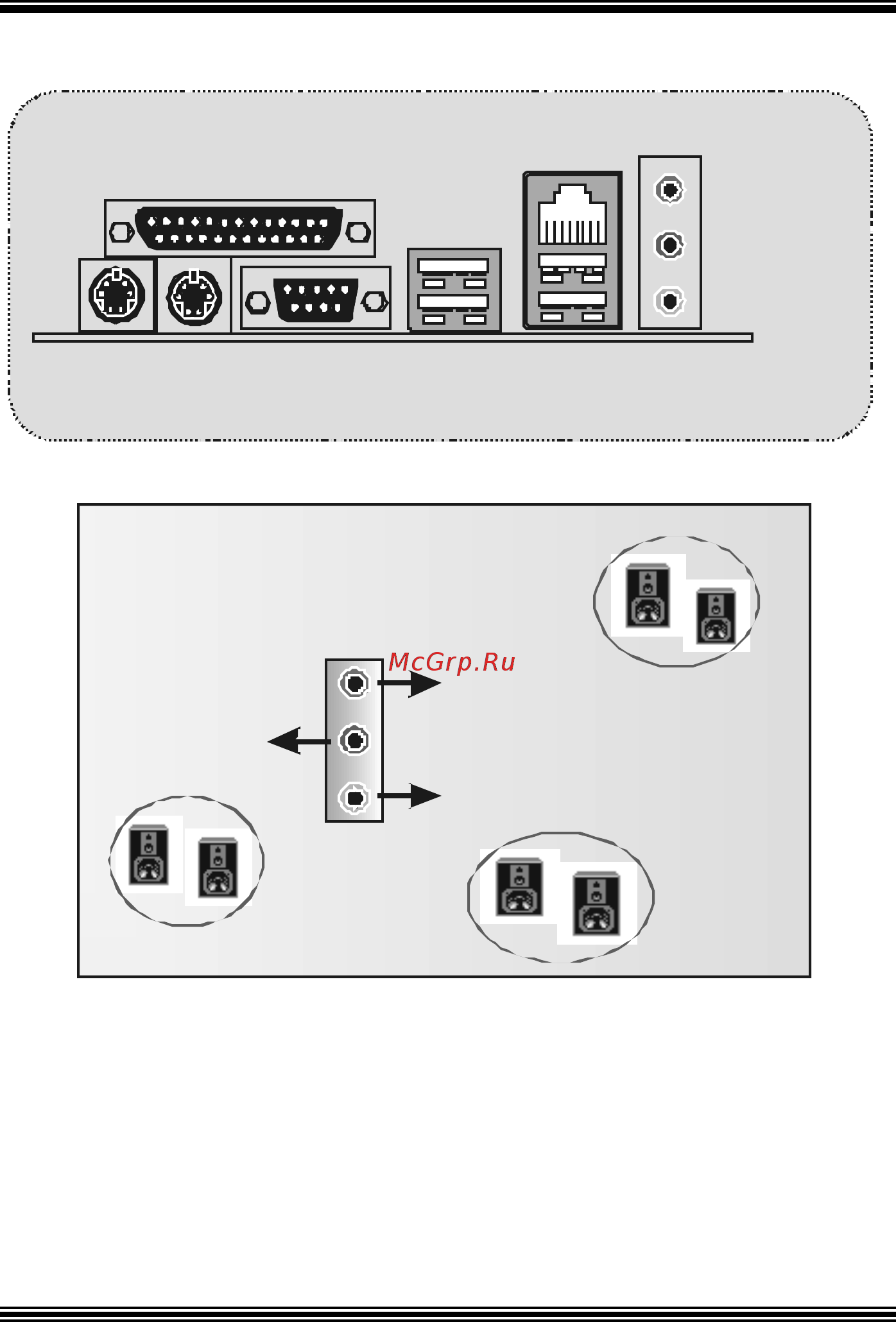

Back Panel Connectors
PS/2
Keyboard
PS/2
Mouse
Speaker Out
Line In
Mic In
Printer Port
COM1
USB
LAN
USB
6 Channel Speakers
Speaker Out/
Right & Left
Line In/
Rear Speaker (Left & Right)
Mic In/ Center & Bass
