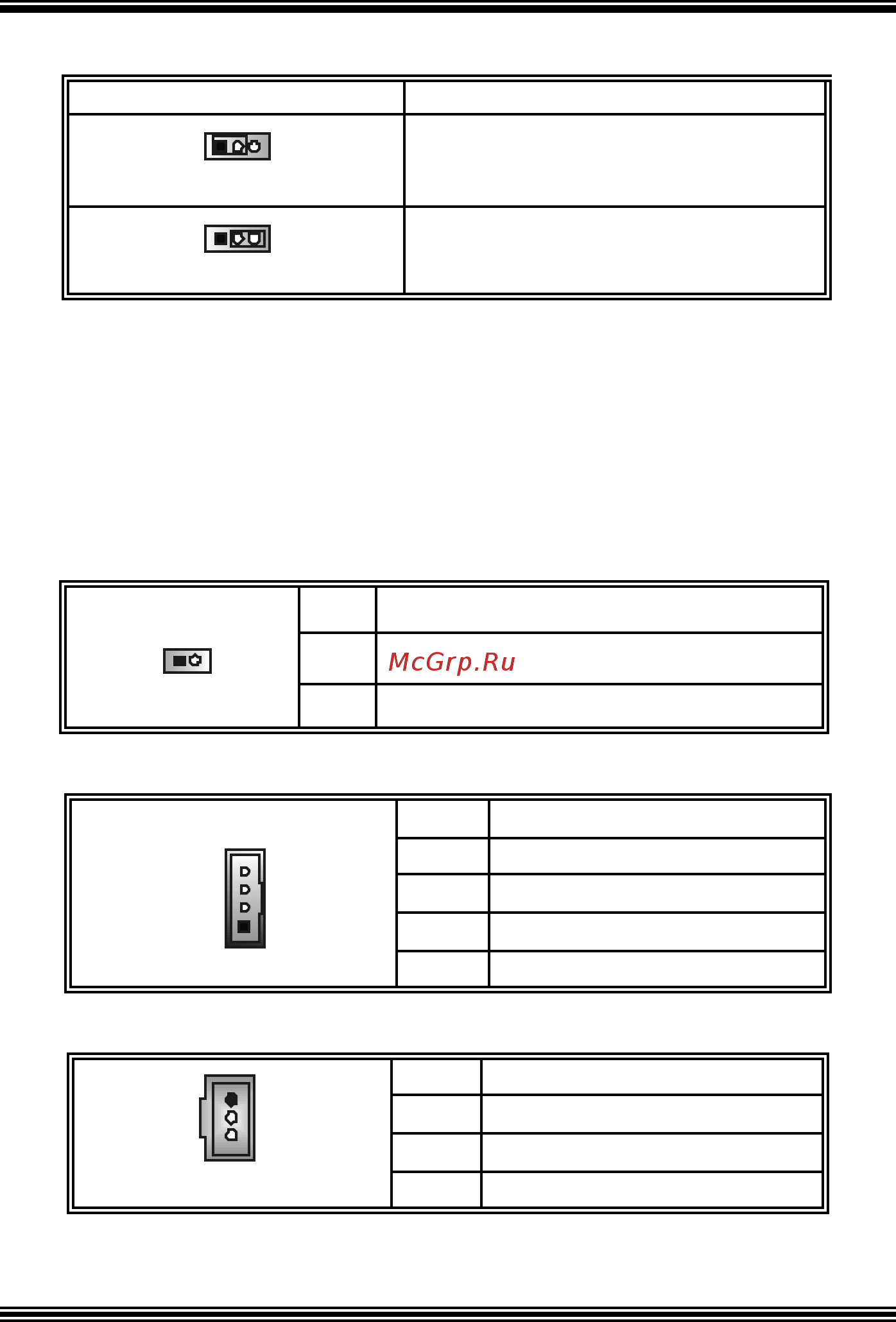

Clear CMOS Jumper: JCMOS1
JCMOS1 Assignment
1 3
Pin 1-2 Close
Normal Operation (default)
1
3
Pin 2-3 Close
Clear CMOS Data
※ Clear CMOS Procedures:
1. Remov e AC power line.
2. Set the jumper to “Pin 2-3 Close”.
3. Wait for fiv e seconds.
4. Set the jumper to “Pin 1-2 Close”.
5. Power on the AC.
6. Reset y our desired password or clear the CMOS data.
Case Open Connector: JCI1
Pin
Assignment
1
Case Open Signal
1
JCI1
2
Ground
CD-ROM Audio-In Header: JCDIN1
Pin Assignment
1
Left Channel Input
2
Ground
3
Ground
1
JCDIN1 4
Right Channel Input
Digital Audio Connector: JSPDIF1
Pin Assignment
1
+5V
2
SPDIF_OUT
1
JSPDIF1
3
Ground
