8

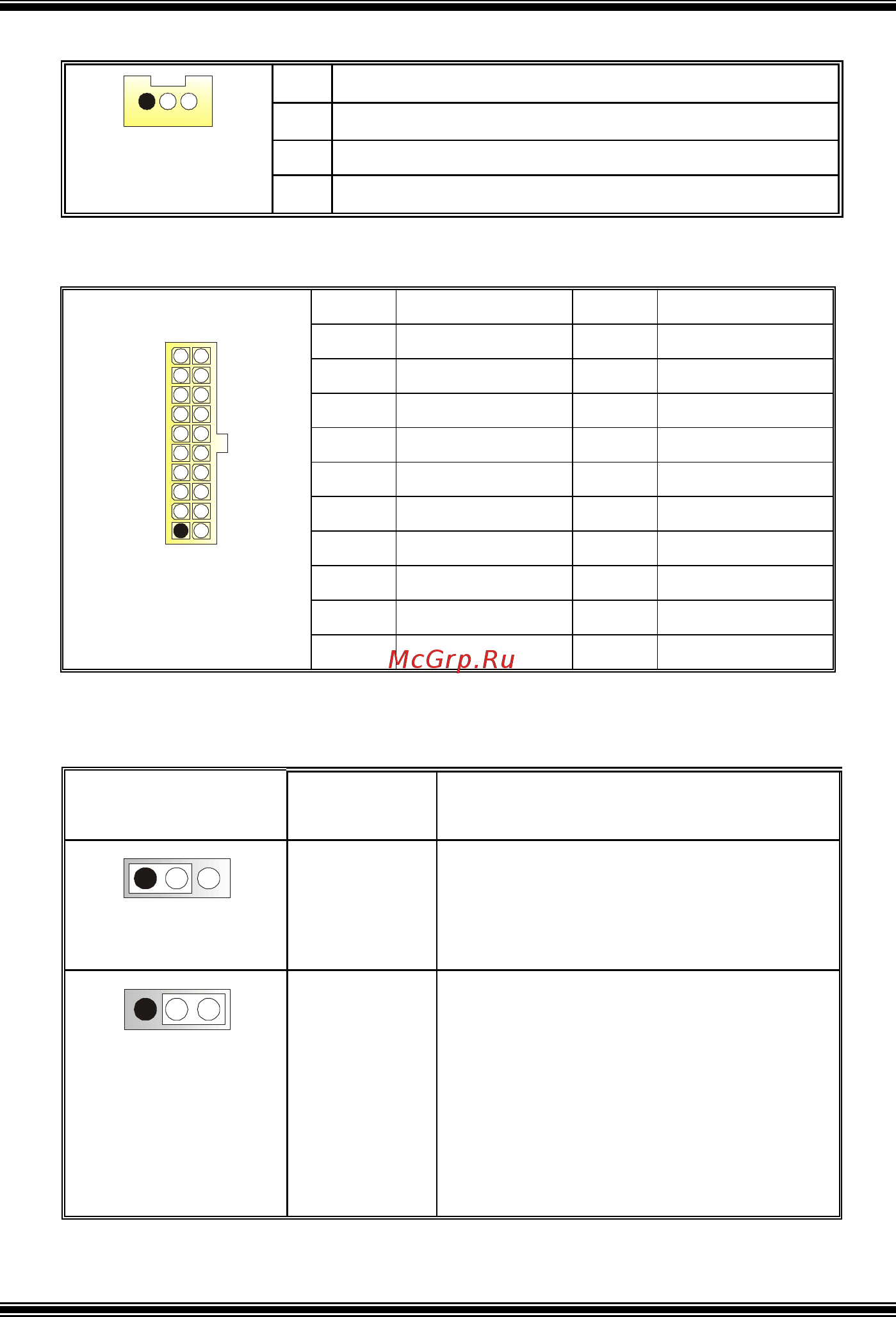

Wake On LAN Header: JWOL1
Pin Assignment
1
+5V_SB
2
Ground
13
JWOL1
3
Wake up
Power Connectors: JATXPWR1
PIN Assignment PIN Assignment
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 Ground 13 Ground
4 +5V 14 PS_ON
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 PW_OK 18 -5V
9 +5V_SB 19 +5V
20
11
10
1
JATXPWR1
10 +12V 20 +5V
5V/ 5VSB Selection for USB (optional): JUSBV1/ JUSBV2/
JUSBV3
JUSBV1/ JUSBV2/
JUSBV3
Assignment Description
1 3
Pin 1-2 close
+5V
JUSBV1: 5V for JUSB2 port
JUSBV2: 5V for JUSB1 port
JUSBV3: 5V for JUSBLAN2 port
1 3
Pin 2-3 close
+5V_SB JUSBV1: JUSB2 port powered with
standby voltage 5V
JUSBV2: JUSB1 port powered with
standby voltage 5V
JUSBV3: JUSBLAN2 port powered with
standby voltage 5V
