9

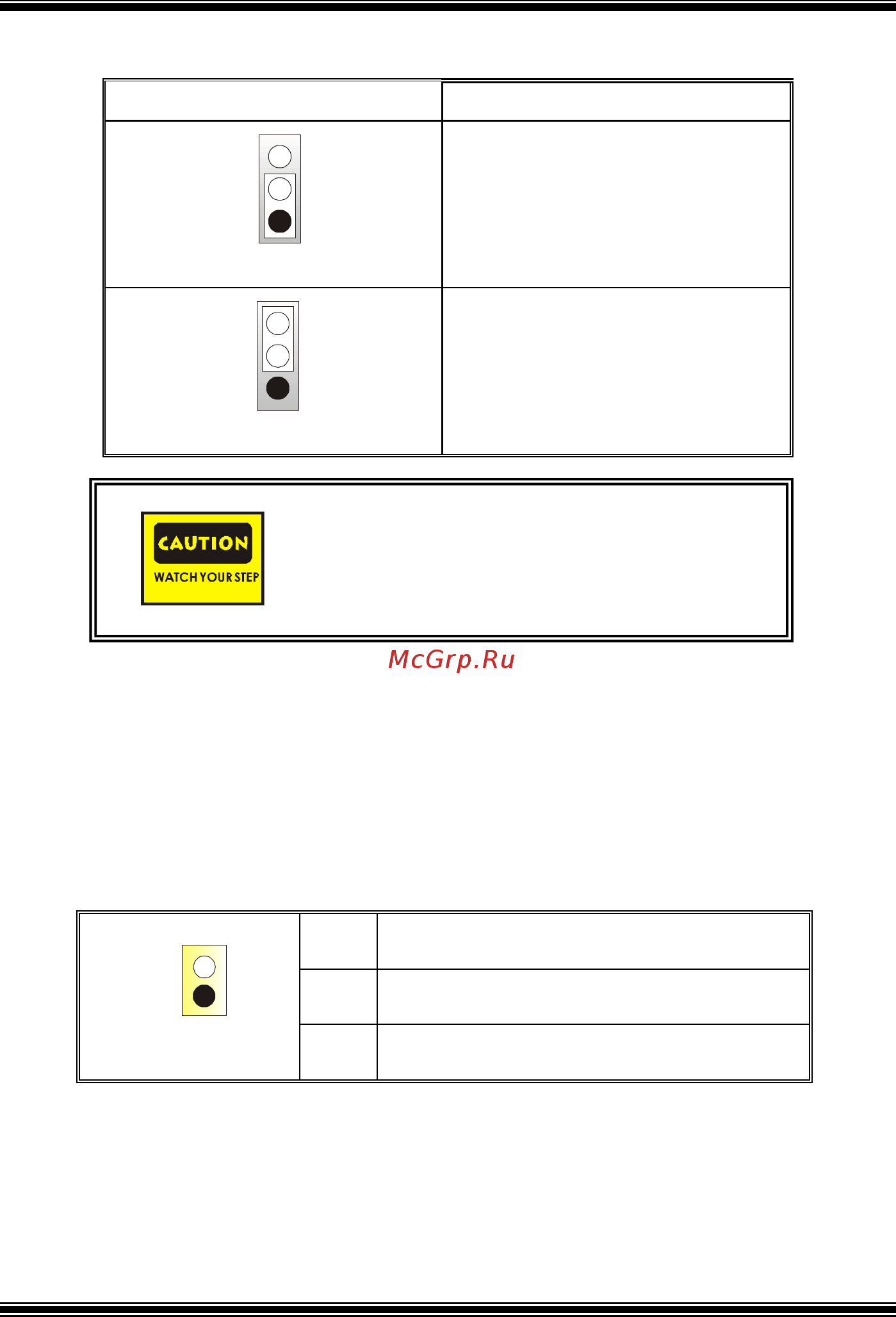

Clear CMOS Jumper: JCMOS1
※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on AC.
6. Reset your desired password or clear the CMOS data.
Case Open Connector: JCI1 (optional)
Pin
Assignment
1
Case Open Signal
1
JCI1
2
Ground
JCMOS1 Assignment
1
3
Pin 1-2 Close
Normal Operation (default)
1
3
Pin 2-3 Close
Clear CMOS Data
The following procedures are for resetting the
BIOS password. It is important to follow these
instructions closely.
