NF61S Micro 754 BIOS Setup

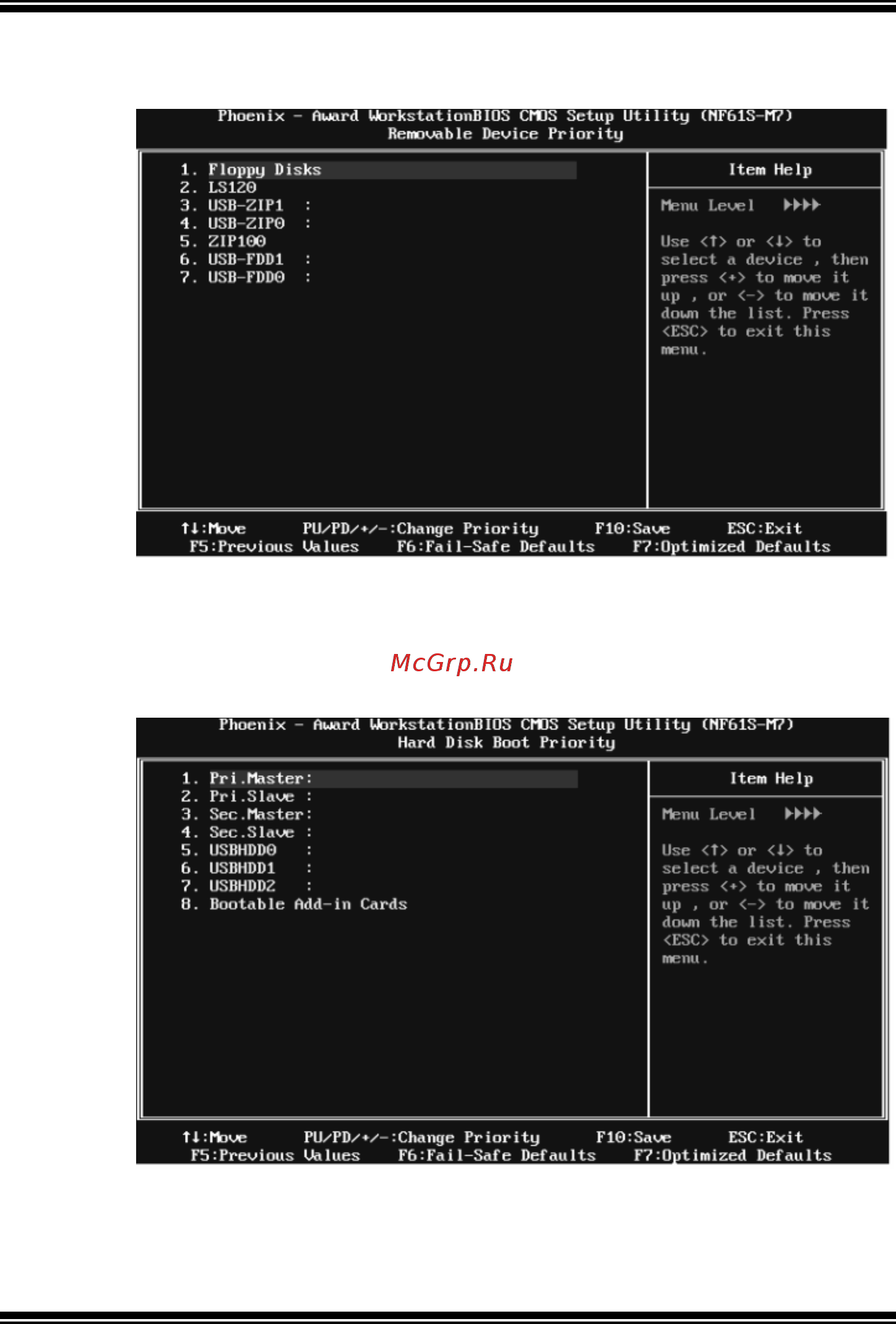

Remov able Device Priority

Select Removable Boot Device Priority.

The Choices: Floppy Disks, Zip100, USB-FDD0, USB-FDD1,

USB-ZIP0, USB-ZIP1, LS120.

Hard Disk Boot Priority

The BIOS will attempt to arrange the Hard Disk boot sequence

automatically.You can change the Hard Disk booting sequence here.

The Choices: Pri. Master, Pri. Slave, Sec. Master, Sec. Slave, USB

HDD0, USB HDD1, USB HDD2, and Bootable Add-in Cards.
