NF61S Micro 754 BIOS Setup

Onboard GPU over clock

This item allows you to select the GPU over clock. GPU clock default setting

supports only 425MHz.

The Choices: 425 (default).

Min= 100

Max= 1000

Key in a DEC number.

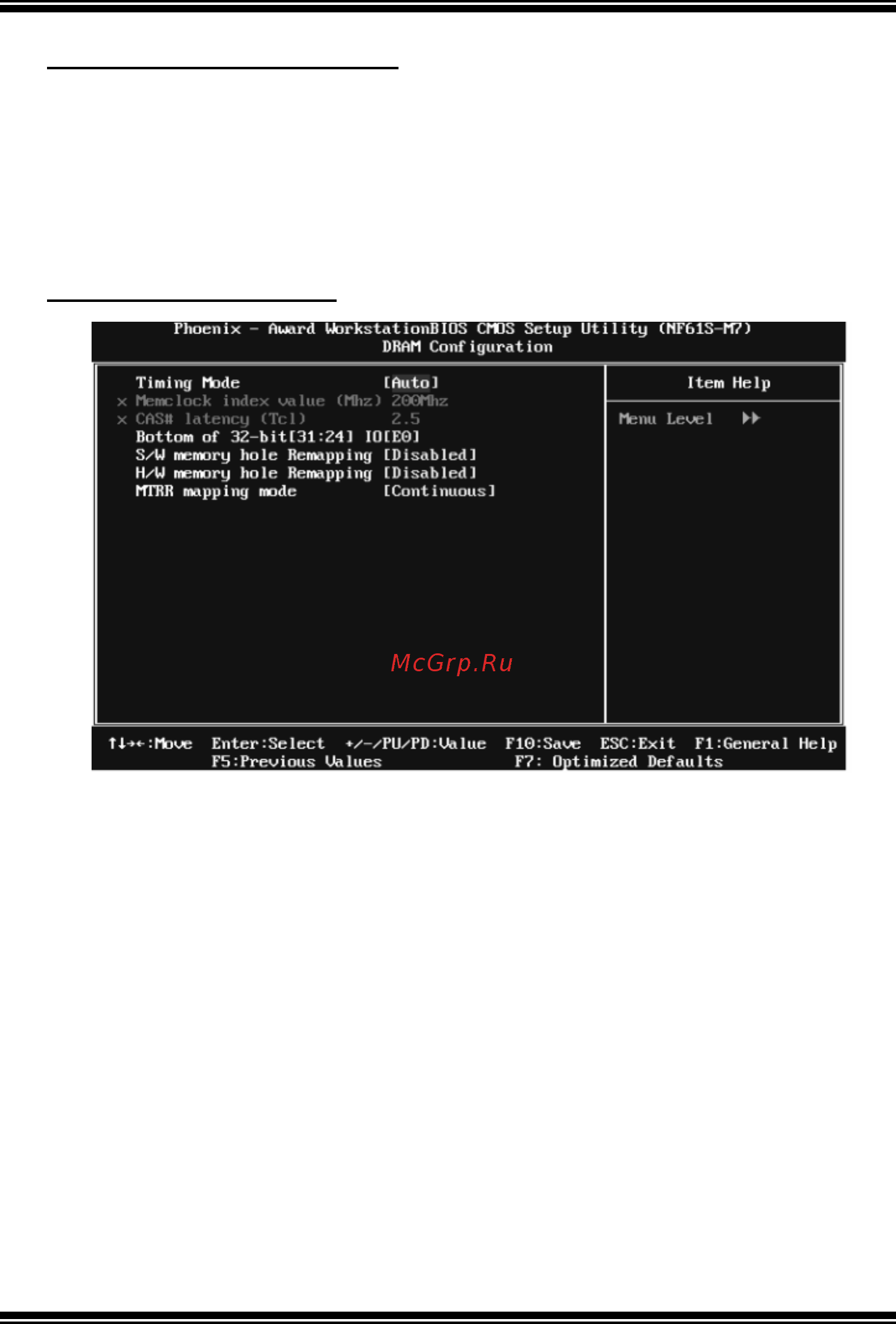

DRAM Co nfiguration

Timing Mode

The Choices: Auto (default), Manual.

Memclock index value (Mhz)

This option is configurable only when “ Timing Mode” is set to “Manual”.

The Choices: 200Mhz (default), 100Mhz, 133Mhz, 166Mhz, 216Mhz,

233Mhz, 250Mhz.

CAS# latency (Tcl)

This option is configurable only when “ Timing Mode” is set to “Manual”.

The Choices: 2.5 (default), 2, 3.

Bottom of 32-bit [31:24] IO

The Choices: Min=0000 Max=00FF; Key in a HEX number.
