NF61S Micro 754 BIOS Setup

2 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categories. Each

category includes no, one or more than one setup items. Use the arrow keys to

highlight the item and then use the<PgUp> or <PgDn> keys to select the value you

want in each item.

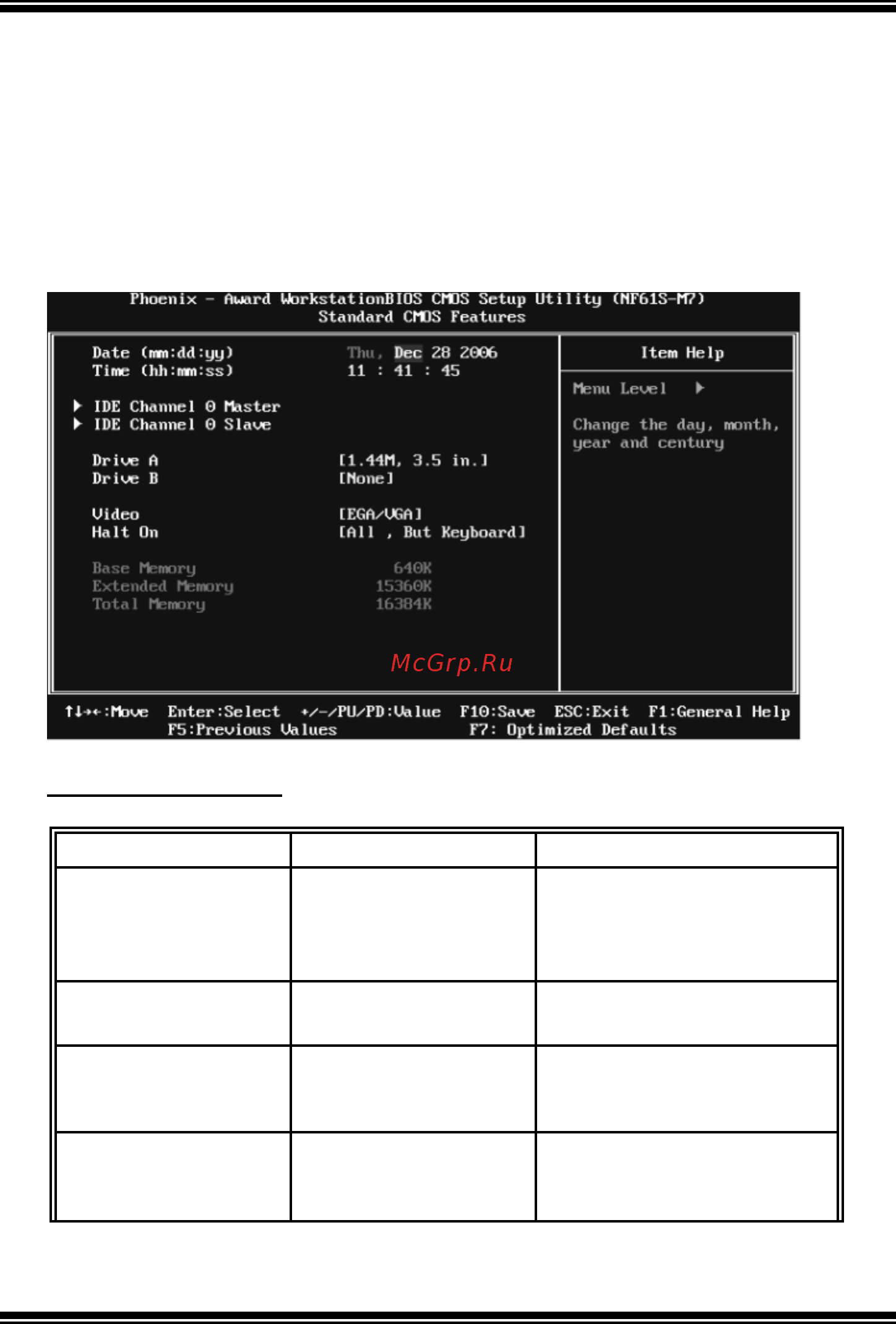

 Figure 2: Standard CMOS Setup

Main Menu Selections

This table shows the items and the available options on the Main Menu.

Item Options Description

Date mm : dd : yy

Set the system date. Note

that the ‘Day ’ automatically

changes when you set the

date.

Time hh : mm : ss

Set the system internal

clock.

IDE Channel 0 Master

Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options

IDE Channel 0 Slav e

Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options.
