NF61S Micro 754 BIOS Setup

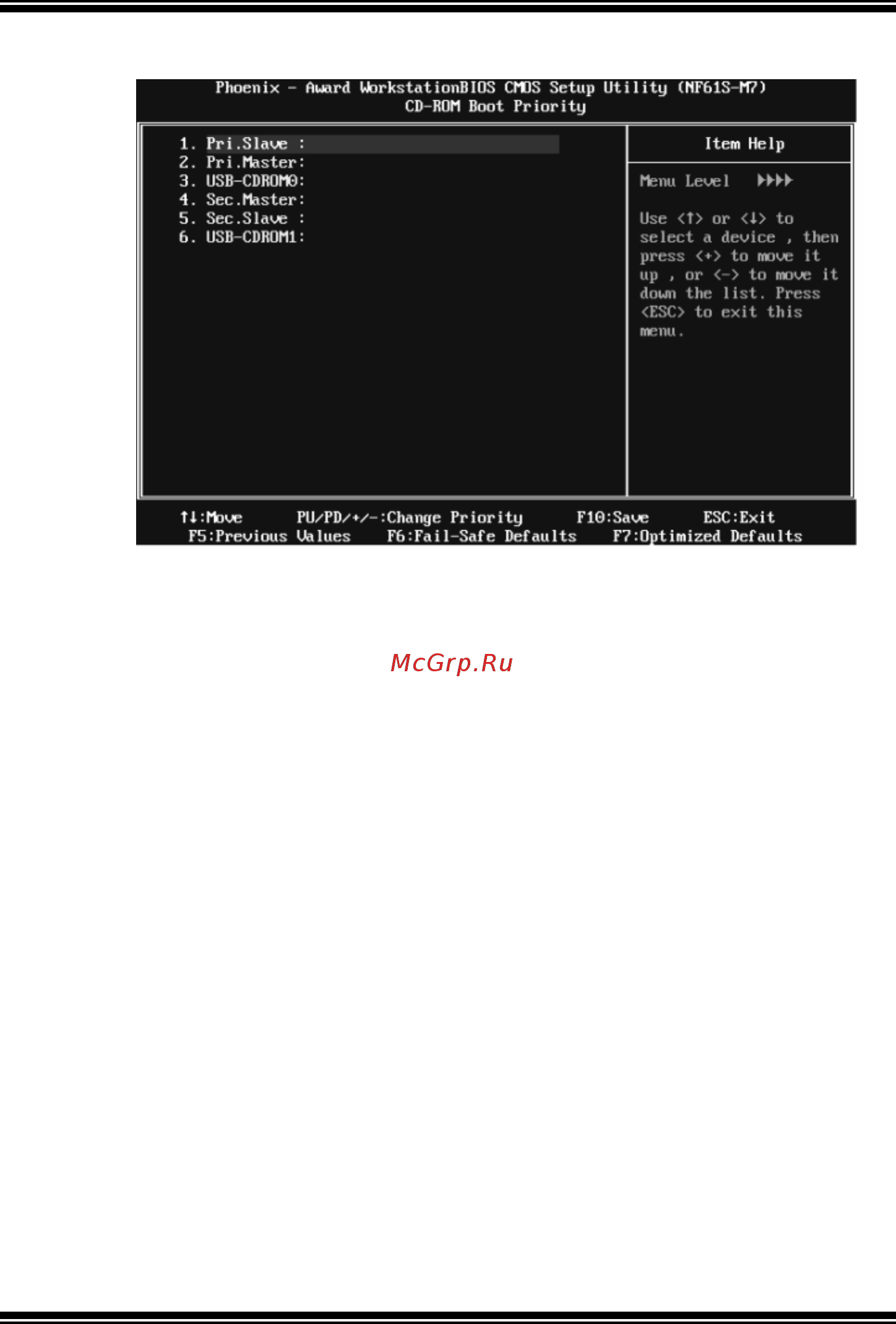

CD-ROM Boot Priority

TheChoices: Pri. Master, Pri. Slave, Sec. Master, Sec. Slave,

USB-CDROM0, USB-CDROM1.

First/Second/Third Boot Dev ice

The BIOS will attempt to load the operating system in this order.

The Choices: Removable, Hard Disk, CDROM, Legacy LAN, Disabled.

Boot Other Dev ice

When enabled, BIOS will try to load the operating system fro m other device

when it failed to load from the three devices above.

The Choices: Enabled (default), Disabled

Sw ap Floppy Drive

For systems with two floppy drives, this option allows you to swap logical

drive assignments.

The Choices: Disabled (default), Enabled.

Boot Up Floppy Seek

When enabled, System will test the floppy drives to determine if they have 40

or 80 tracks during boot up. Disabling this option reduces the time it takes to

boot-up.

The Choices: Enabled (default), Disabled.
