NF61S Micro 754 BIOS Setup

8 PC Health Status

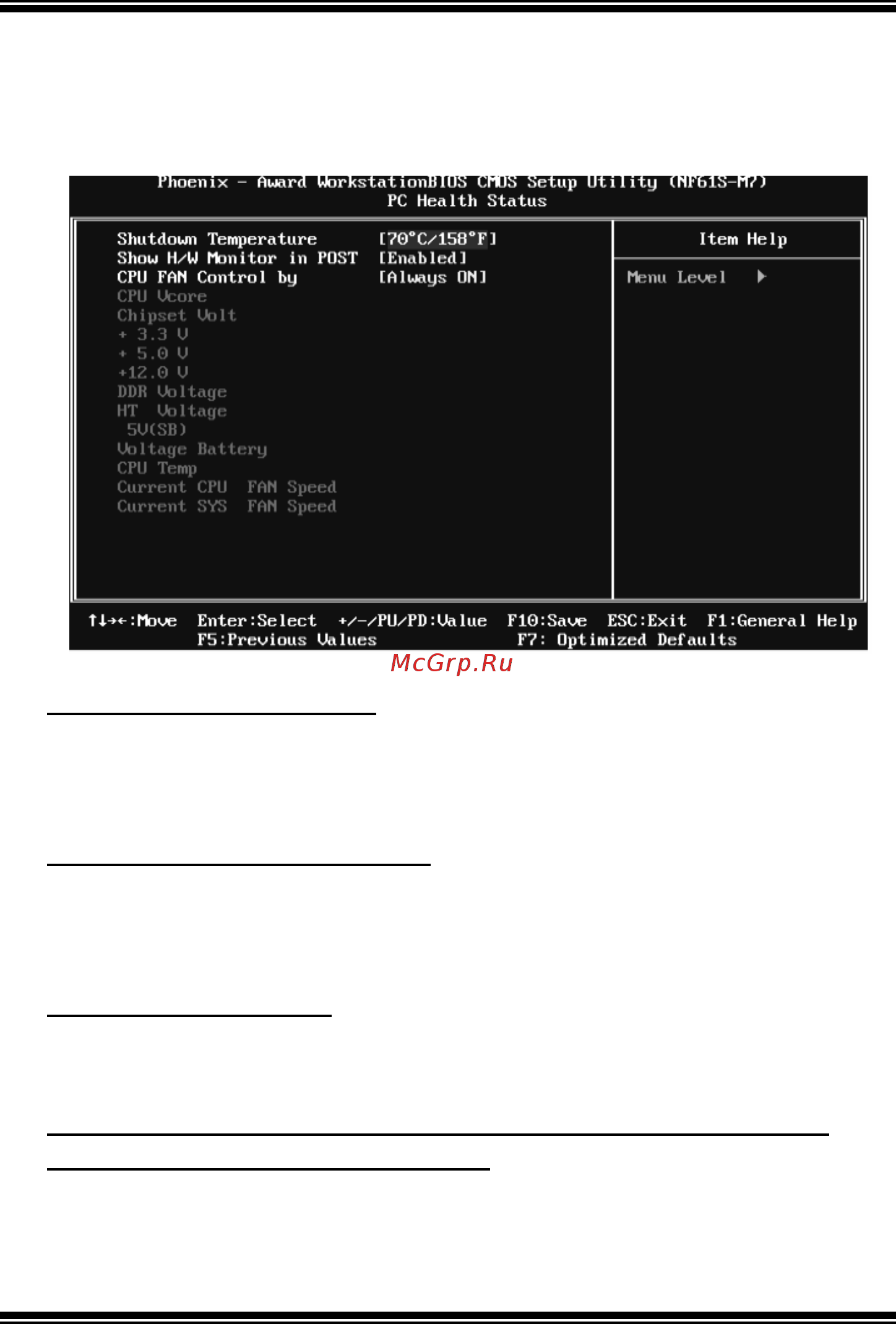

 Figure 8: PC Health Status

Shutdown Temperature

This item allows you to set up the CPU shutdown Temperature. This item is

only effective under Windows 98 ACPI mode.

The Choices: Disabled, 70℃/ 158℉ (default), 65℃/ 149℉, 60℃/ 140℉.

Show H/W Monitor in P OST

If you computer contains a monitoring system, it will show PC health status

during POST stage. The item offers several different delay times.

The Choices: Enabled (default), Disabled.

CPU FAN Contro l by

Choose “ smart” to reduce the noise caused by CPU FAN.

The Choices: Always On (default), Smart.

CPU Vcore, Chipset Volt , HT/DDR Voltage, +3.3V, +5.0V,

+12.0V, 5V (SB), Voltage Battery

Detect the system’s voltage status automatically.
