NF61S Micro 754 BIOS Setup

4 Advanced Chipset Features

This submenu allows you to configure the specific features o f the chipset

installed on your system. This chipset manage bus speeds and access to system

memory resources, such as DRAM. It also coordinates communications with the

PCI bus. The default settings that came with your system have been optimized

and therefo re should not be changed unless you are suspicious that the settings

have been changed incorrectly.

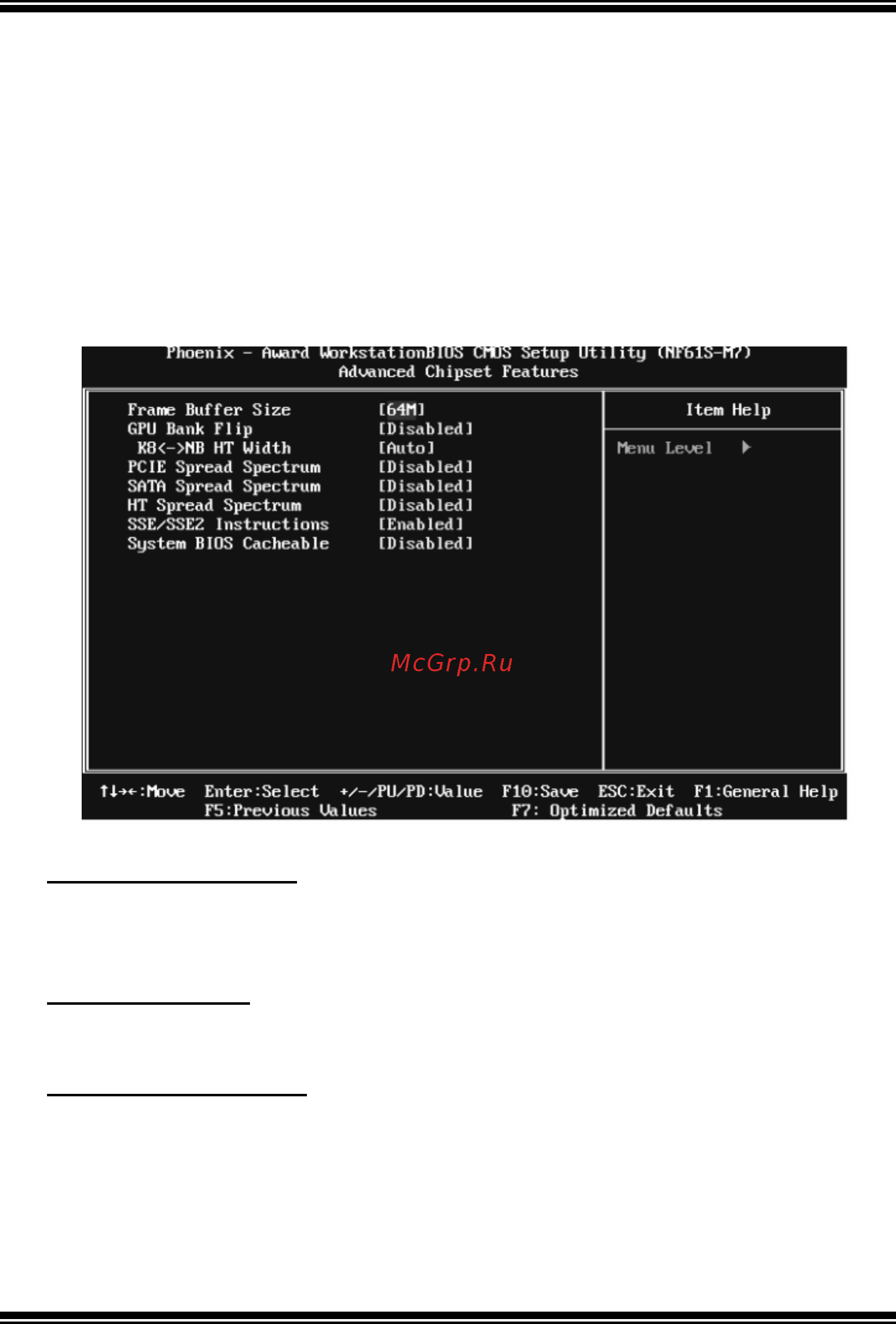

 Figure 4: Advanced Chipset Setup



Frame Buffer Size

This item allows you to choose the frame buffer size of on-chip VGA.

The Choices: 64MB (default), 16MB, 32MB, 128MB, 256MB, Disabled.

GP U Bank Filp

The Choices: Disabled (default), Enabled.

K8<->NB HT W idth

This item allows you to select the K8<->NB HT Speed.

The Choices: Auto (default), ↓8↑8, ↓16↑16.
