NF61S Micro 754 BIOS Setup

9 Performance Booster Zone

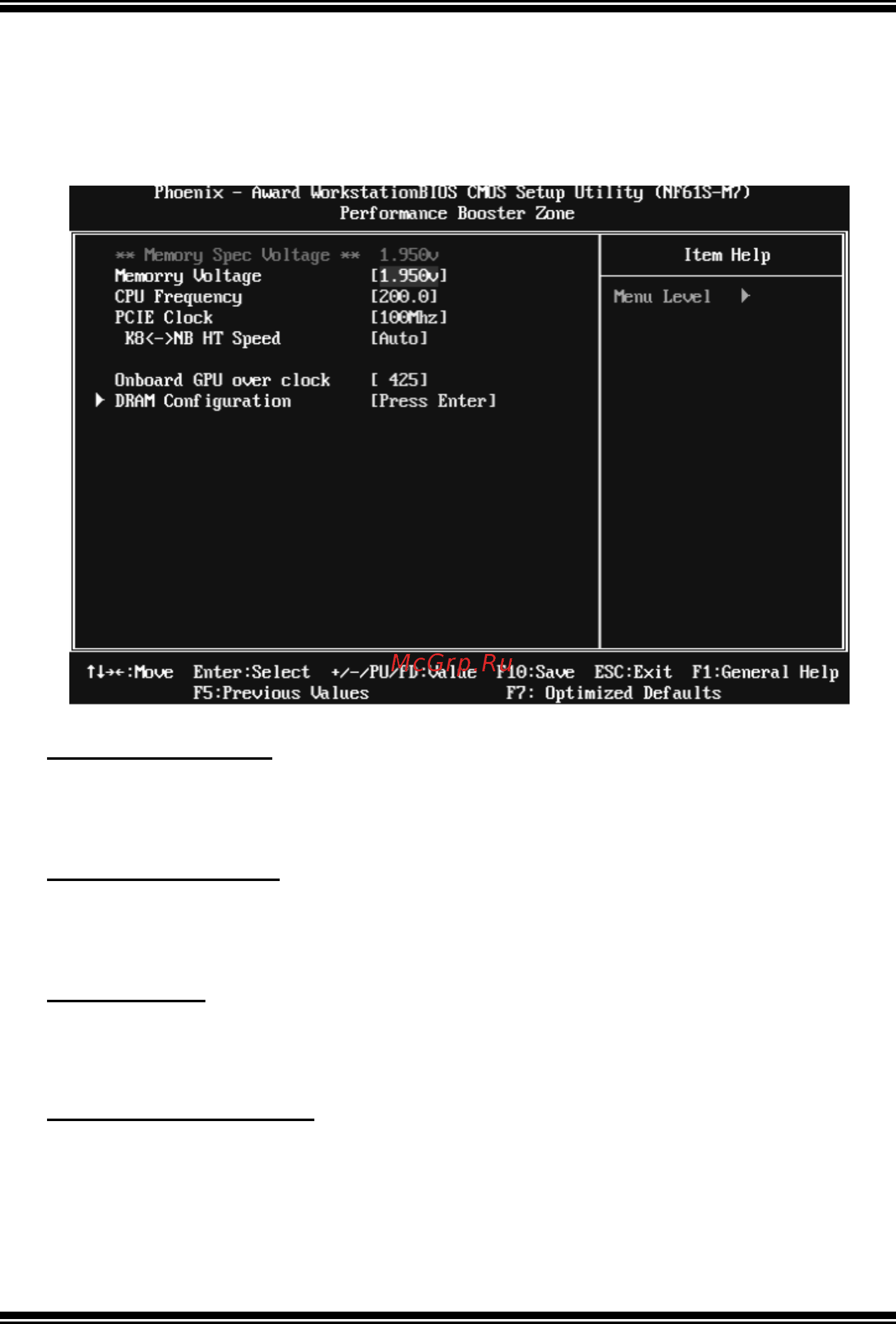

 Figu re 9: Perf ormance Booster Zone

Memory Voltage

This item allows you to select memory Spec Voltage .

The Choices: 1.950v (default), 2.000v, 2.050v, 2.100v.

CPU Frequency

This item allows you to select the CPU Frequency.

The Choices: 200 (default), 201.0~450.0 with an interval of 1.0.

PCIE Clock

The Choices: 100MHz (default), 101MHz ~ 150MHz with an interval of

1MHz.

K8<->NB HT Speed

This item allows you to select the K8<->NB HT Speed.

The Choices: Auto (default), 1x, 2x, 3x, 4x, 5x.
