Biostar T-Series TForce 6100
User’s Manual
9

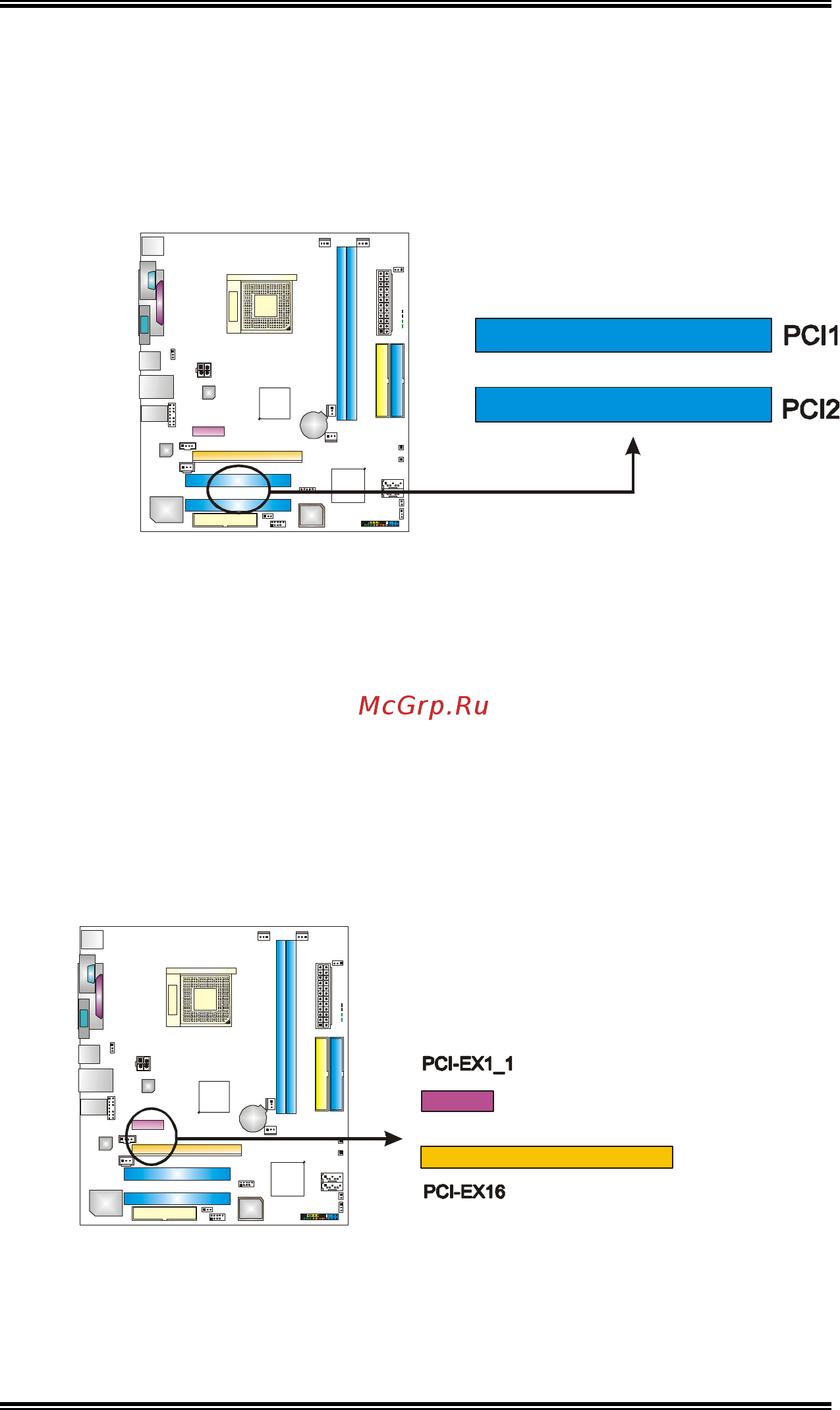

Peripheral Component Interconnect Slots: PCI1~PCI2
This motherboard is equipped with 4 standard PCI slots. PCI stands
for Peripheral Component Interconnect, and it is a bus standard for
expansion cards. This PCI slot is designated as 32 bits.
PCI-Express Slots: PCI-EX16/PCI-EX1_1
PCI-EX16:
PCI Express 1.0a compliant.
Maximum bandwidth is up to 4GB/s per direction.
PCI-EX1_1:
PCI Express 1.0a compliant.
Maximum bandwidth is up to 250MB/s per direction.
