Biostar T-Series TForce 6100
User’s Manual
6

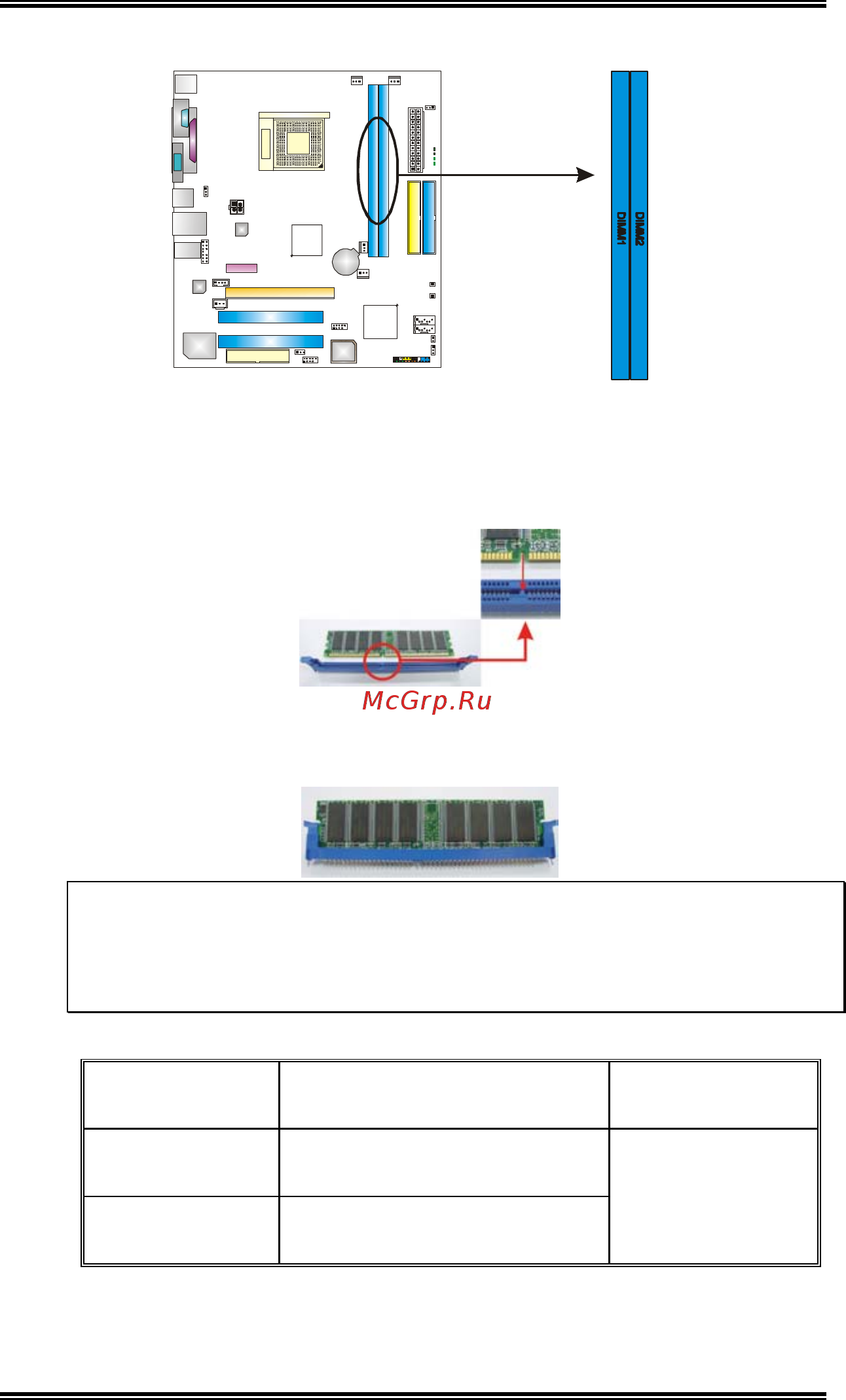

2.2 SYSTEM MEMORY
A. Memory Modules
1. Unlock a DIMM slot by pressing the retaining clips outward.
Align a DIMM on the slot such that the notch on the DIMM
matches the break on the slot.
2. Insert the DIMM vertically and firmly into the slot until the
retaining chip snaps back in place and the DIMM is properly
seated.
Notes:
To remove the DDR modules, push the ejector tabs at both sides
of the slot outward at the same time, and pull the modules out
vertically.
B. Memory Capacity
DIMM Socket
Location
DDR Module
Total Memory
Size
DIMM1
128MB/256MB/512MB/1GB
*1
DIMM2
128MB/256MB/512MB/1GB
*1
Max is 2 GB.
