Biostar T-Series TForce 6100
User’s Manual
1
7

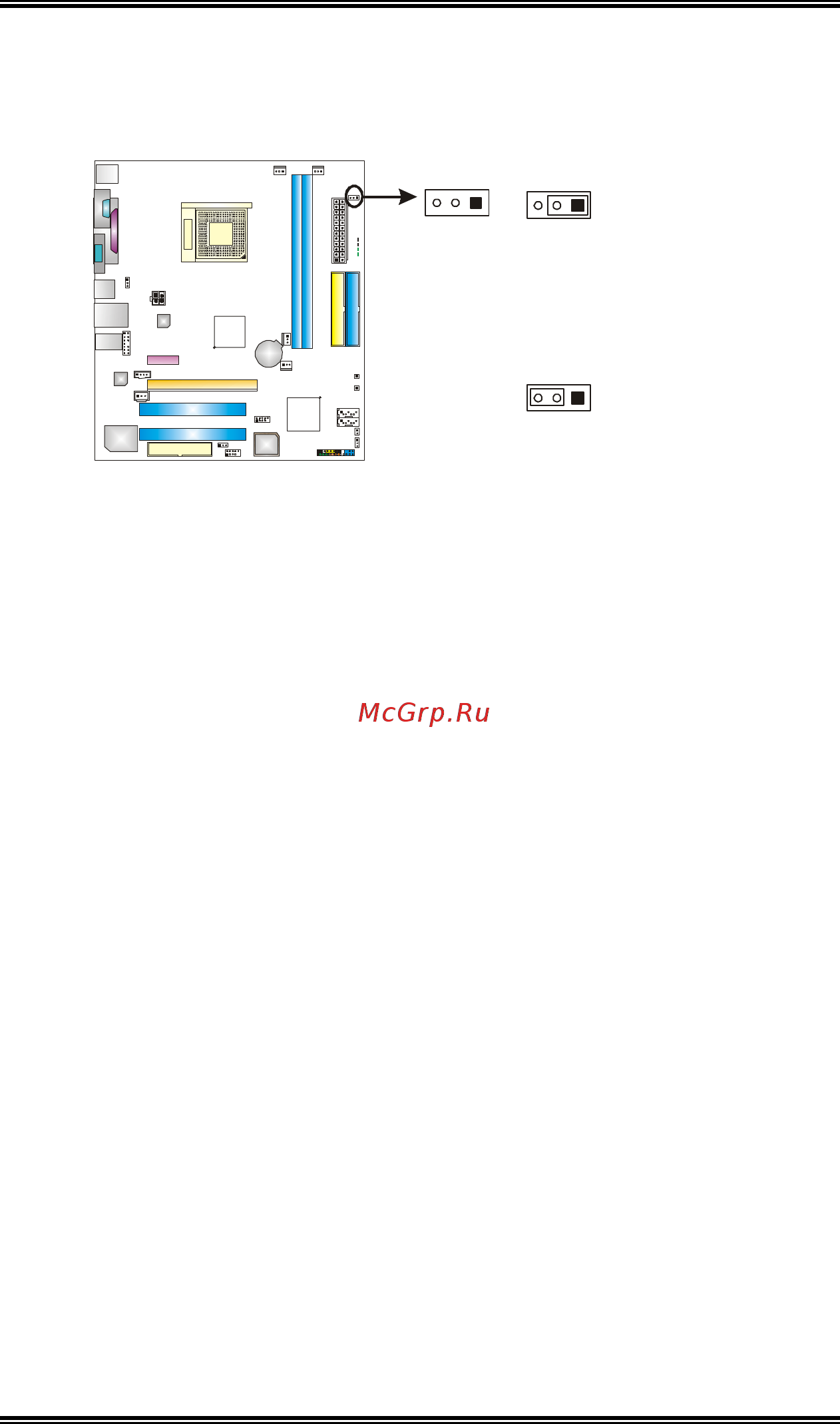

Header for Memory Voltage Overclocking: JDDR_OV>3V
When processing Memory Voltage Overclocking, please place the
jumper to pin1-2 Closed. The Default setting is Pin 2-3 Closed.
1
3
Pin 1-2 Close:
Memory voltage Overclocking.
1
3
1
3
Pin 2-3 Close:
Normal status (default).
Note:
1. When “JDDR_OV>3V” jumper cap is placed on Pin 2-3,
memory voltage can be manually adjusted under CMOS setup.
2. When “JDDR_OV>3V” jumper cap is placed on Pin 1-2,
memory voltage will be fixed at 3.3V automatically, and can’t
be adjusted under COMS setup.
3. Before setting memory voltage overclocking, please ensure
that your DDR supports up to 3V. (Consulting your DDR
supplier)
