Biostar T-Series TForce 6100
User’s Manual
14

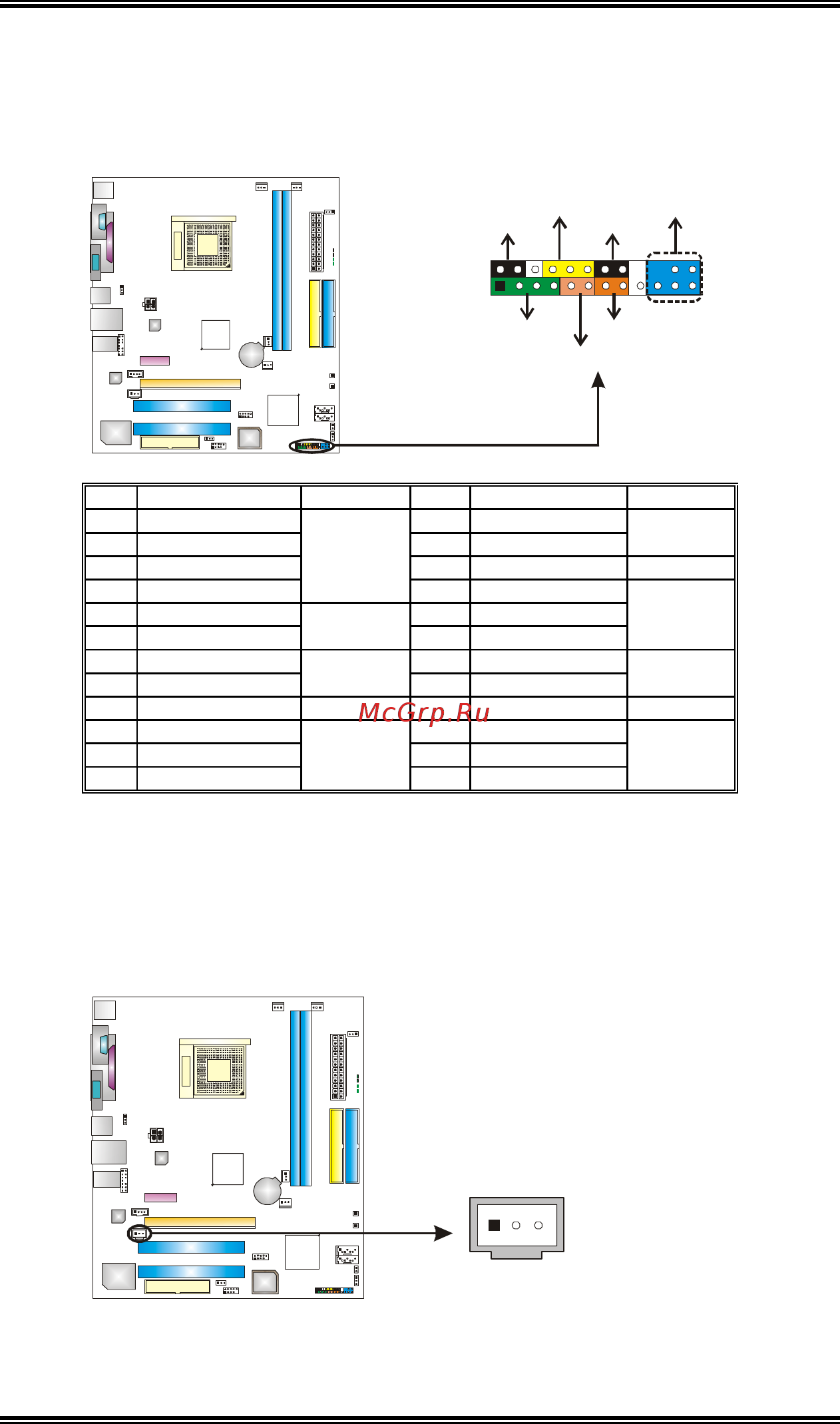

Header for Front Panel Facilities: JPANEL1
This 16-pin connector includes Power-on, Reset, HDD LED, Power
LED, Sleep button, speaker and IrDA Connection. It allows user to
connect the PC case’s front panel switch functions.
1
23
24
SLP
PWR_LED
On/Off
IR (optional)
RST
HLED
SPK
++
+
2
-
-
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep control
3N/A 4 Ground
Sleep
button
5N/A 6 N/A N/A
7 Speaker
Speaker
nector
8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-)
Hard drive
LED
12 Power LED (-)
Power LED
13 Ground 14 Power button
15 Reset control
Reset
button
16 Ground
Power-on
button
17 N/A 18 Key
19 N/A 20 Key
21 +5V 22 Ground
23 IRTX
IrDA
Connector
(Optional)
24 IRRX
IrDA
Connector
(Optional)
Digital Audio-out Connector: JSPDIF_OUT1
This connector allows users to connect the PCI bracket SPDIF
output header.
Pin
Assignment
1+5V
2 SPDIF OUT
13
3 Ground
