Biostar T-Series TForce 6100
User’s Manual
5

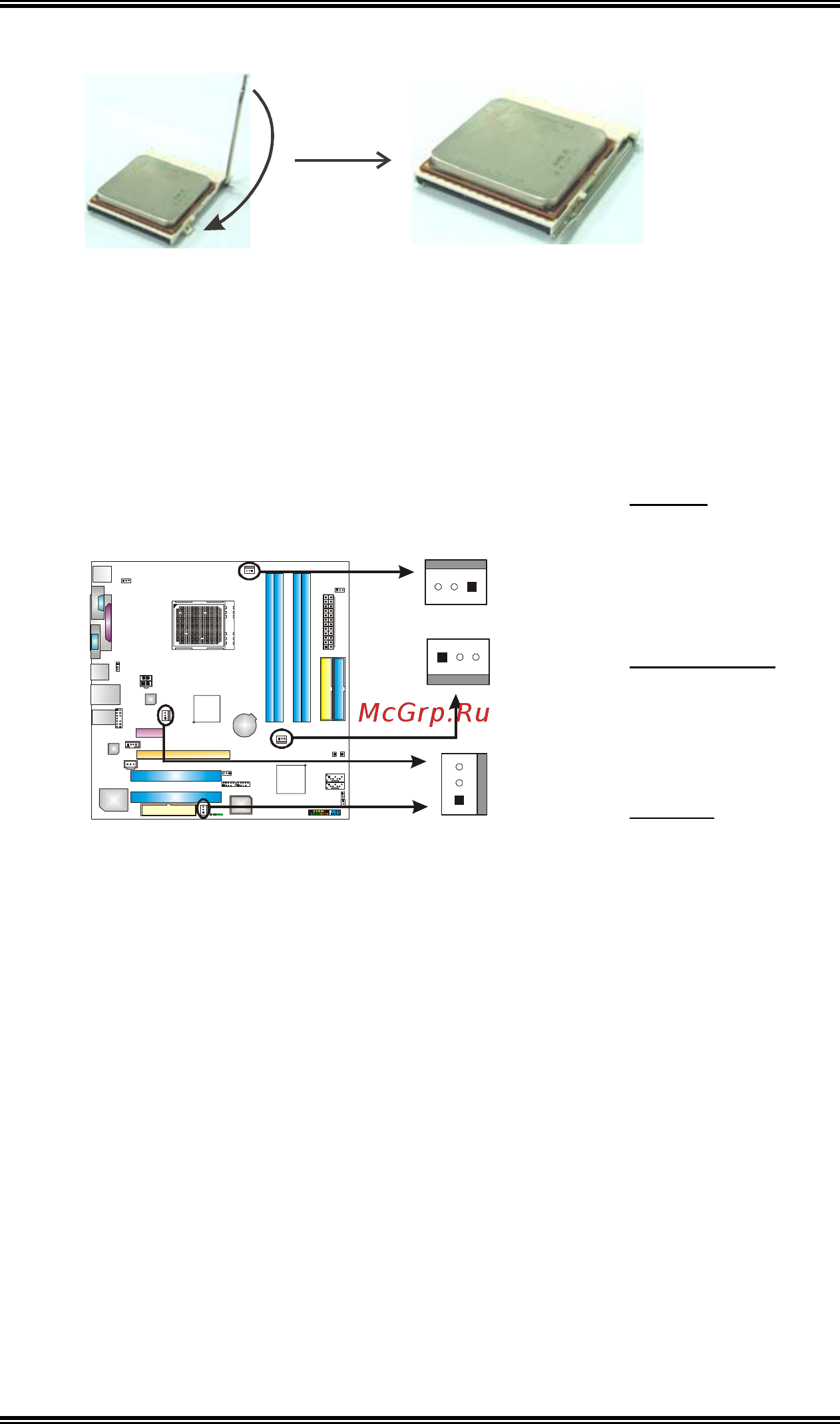

Step 3: Hold the CPU down firmly, and then close the lever to
complete the installation.
Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.
B. About FAN Headers
CPU FAN Power Header: JCFAN1
System Fan Power Headers: JSFAN1/JSFAN2
North Bridge Fan Power Header: JNBFAN1
JCFAN1:
Pin Assignment
1 Ground
2 Smart Fan
Control
3
FAN RPM
rate sense
JSFAN1/JSFAN2
Pin Assignment
1 Ground
2 +12V
3
FAN RPM
rate sense
JNBFAN1
1 Ground
2 +12V
13
13
1
3
JCFAN1
JSFAN1
JNFAN1
JSFAN2
3
N/A
