Biostar T-Series TForce 6100
User’s Manual
4
CHAPTER 2: HARDWARE INSTALLATION
2.1 INSTALLING CENTRAL PRIOCESSING UNIT (CPU)
A. Central Processing Unit (CPU)

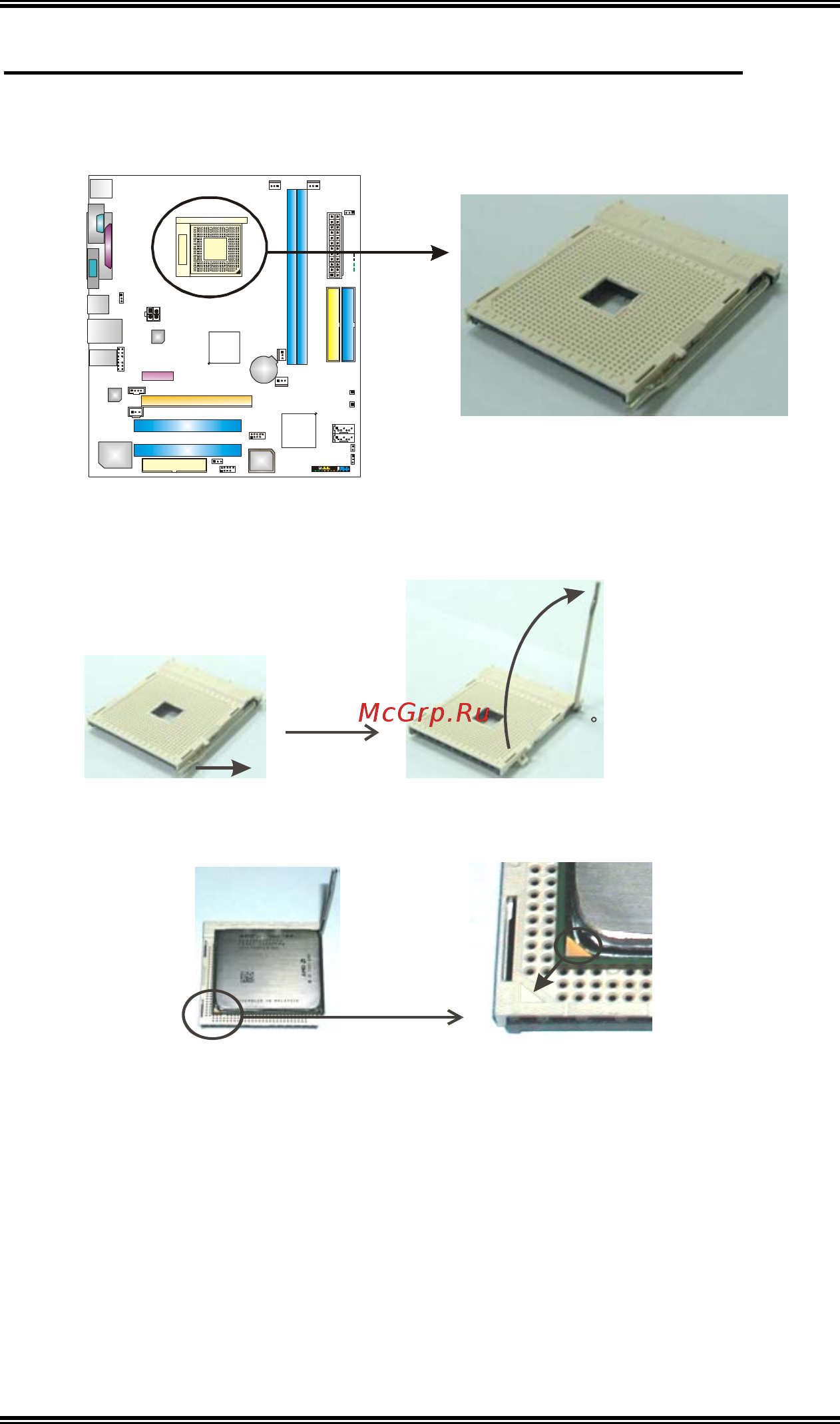

Step 1: Pull the lever toward direction A from the socket and then raise
the lever up to a 90-degree angle.
90
A
Step 2: Look for the white triangle on socket, and the gold triangle on
CPU should point forwards this white triangle. The CPU will fit only in
the correct orientation.
