Biostar T-Series TForce 6100
User’s Manual
11

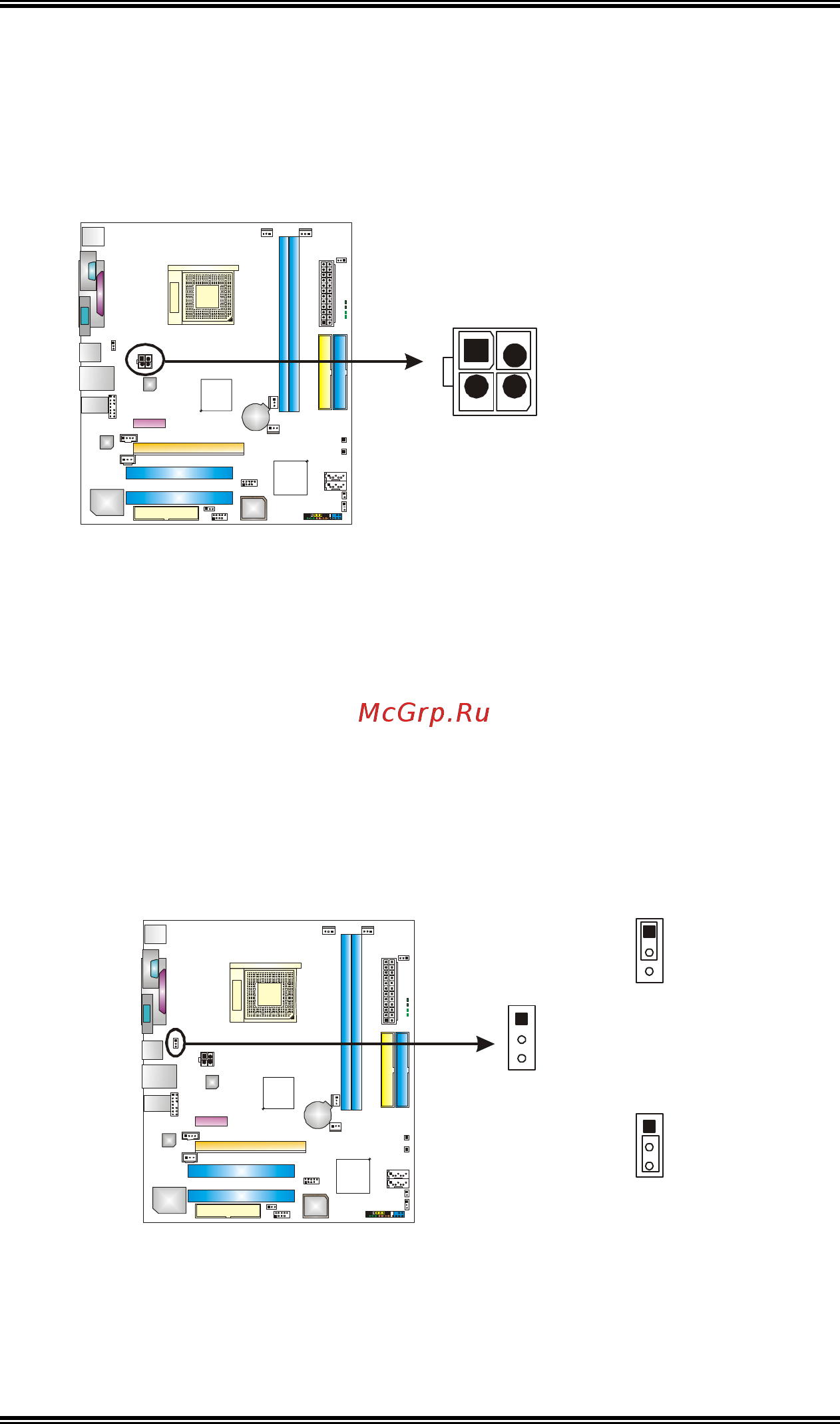

ATX Power Source Connector: JATXPWR2
By connecting JATXPWR2, it will provide +12V to CPU power
circuit.
Pin
Assignment
1 +12V
2 +12V
3 Ground
1
2
3
4
JATXPWR2
4 Ground
JUSBV1: Power Source Headers for PS/2 Keyboard and Mouse
and USB Ports
Pin 1-2 Close: +5V for USB ports at JUSBLAN1 and PS/2
keyboard and mouse ports at JKBMS1.
Pin 2-3 Close: USB ports at JUSBLAN1 and PS/2 keyboard
and mouse ports are powered by +5V or +5V standby
voltage.
1
3
Pin 1-2 Close (Default)
1
3
JUSBV1
1
3
Pin 2-3 Close
Note:
In order to support this function “Power-On system via
keyboard, mouse and USB device,” “JUSBV1” jumper cap
should be placed on Pin 2-3.
