12 | 2 Advanced Menu
Core Leveling
This item allows you to set CPU downcoring.
Opons: Auto (Default) / Single Core / Dual Core
HTC temperature limit
This item allows you to set HTC temperature limit. Range: 70 °C - 115 °C
Opons: 90 °C(Default)

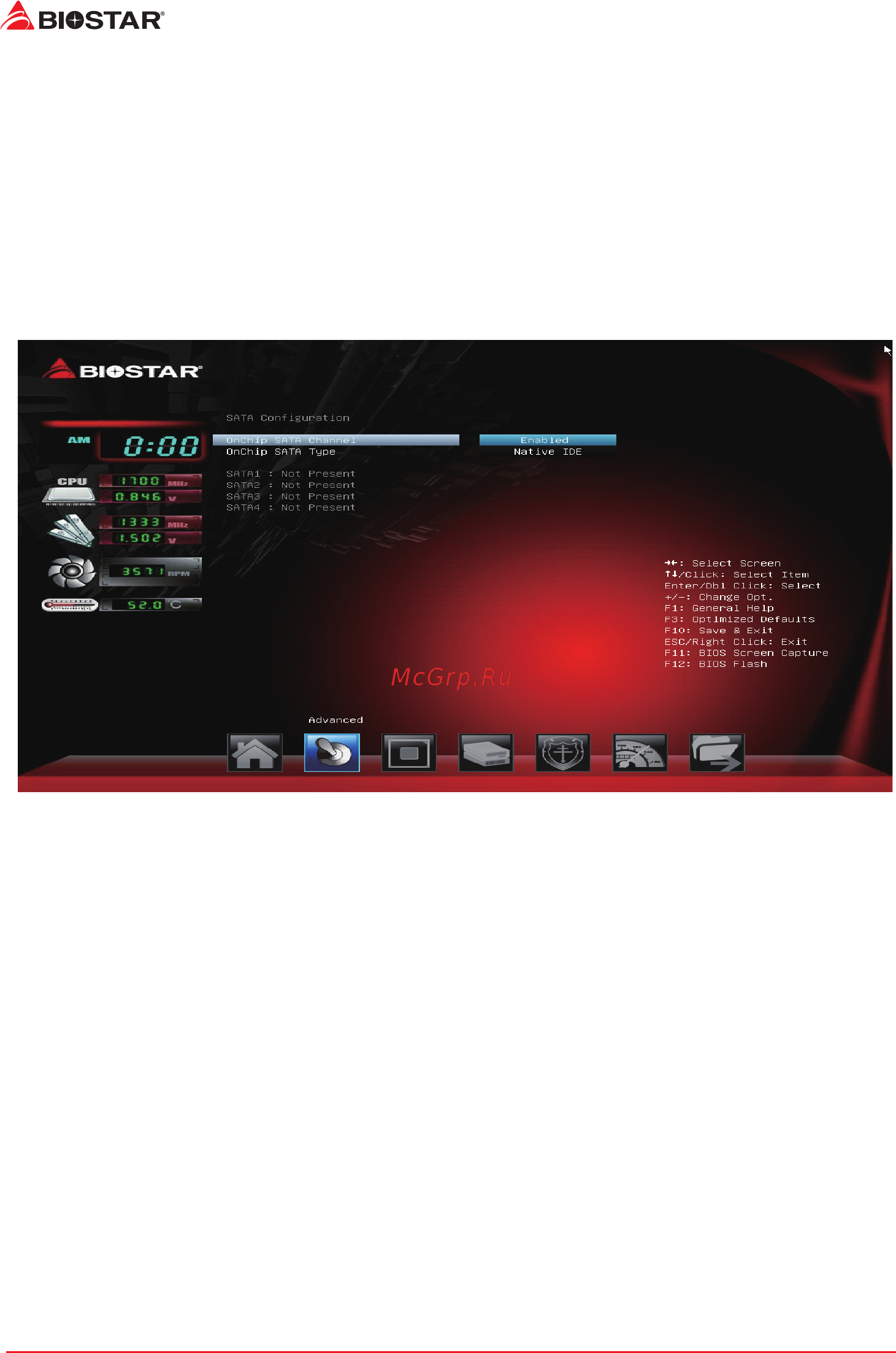

SATA Configuration
The BIOS will automacally detect the presence of SATA devices. There is a sub-menu for each
SATA device. Select a device and press <Enter> to enter the sub-menu for detailed opons.
OnChip SATA Channel
This item allows you to enable or disable OnChip SATA Channel
Opons: Enabled (Default) / Disabled
OnChip SATA Type
This item allows you to set OnChip SATA type.
Opons: Nave IDE (Default) / RAID / AHCI / Legacy IDE
