Biostar A68N-5600 Версия 6.4 [24/32] Csm16 parameters

24 | 4 Boot Menu

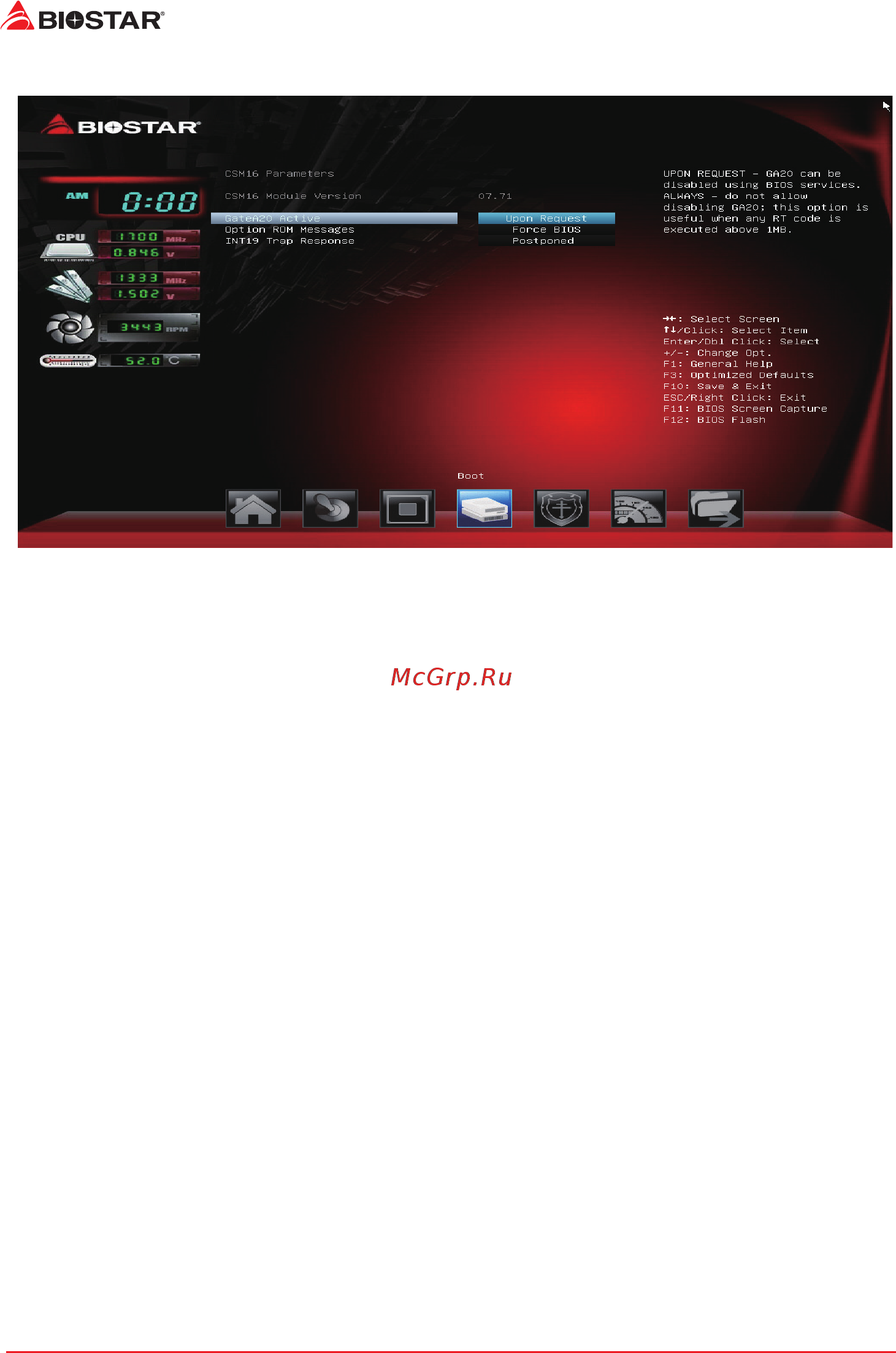

CSM16 parameters

GateA20 Acve

Upon Request – GA20 can be disabled using BIOS services. Always – do not allow disabling GA20;

this opon is useful when any RT code is executed above 1MB

Opons: Upon Request (Default) / Always

Opon ROM Messages

This item sets the display mode for opon ROM.

Opons: Force BIOS (Default) / Keep Current

INT19 Trap Response

BIOS reacon on INT19 trapping by Opon ROM: IMMEDIATE – execute the trap right away;

POSTPONED – execute the trap during legacy boot.

Opons: Postponed (Default) / Immediate
