Biostar A68N-5600 Версия 6.4 [32/32] Exit menu

32 | 7 Exit Menu

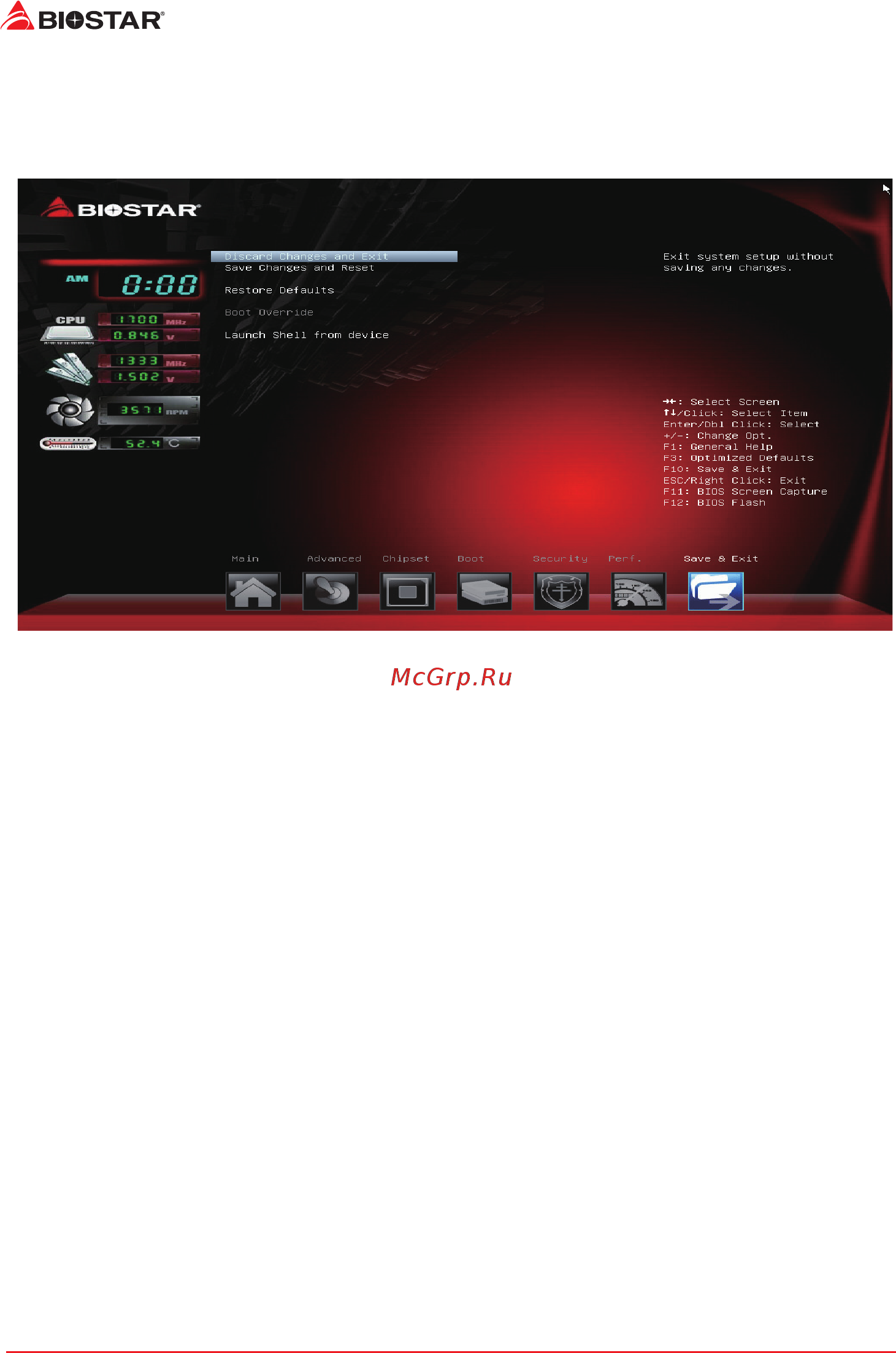

7 Exit Menu

This menu allows you to load the opmal default sengs, and save or discard the changes to the

BIOS items.

Discard Changes and Exit

Abandon all changes made during the current session and exit setup.

Save Changes and Reset

Reset the system aer saving the changes.

Restore Defaults

This selecon allows you to reload the BIOS when problem occurs during system boong

sequence. These conguraons are factory sengs opmized for this system.

Launch Shell from device

This item aempts to EFI Shell applicaon (Shellx64.e) from one of the available devices.
