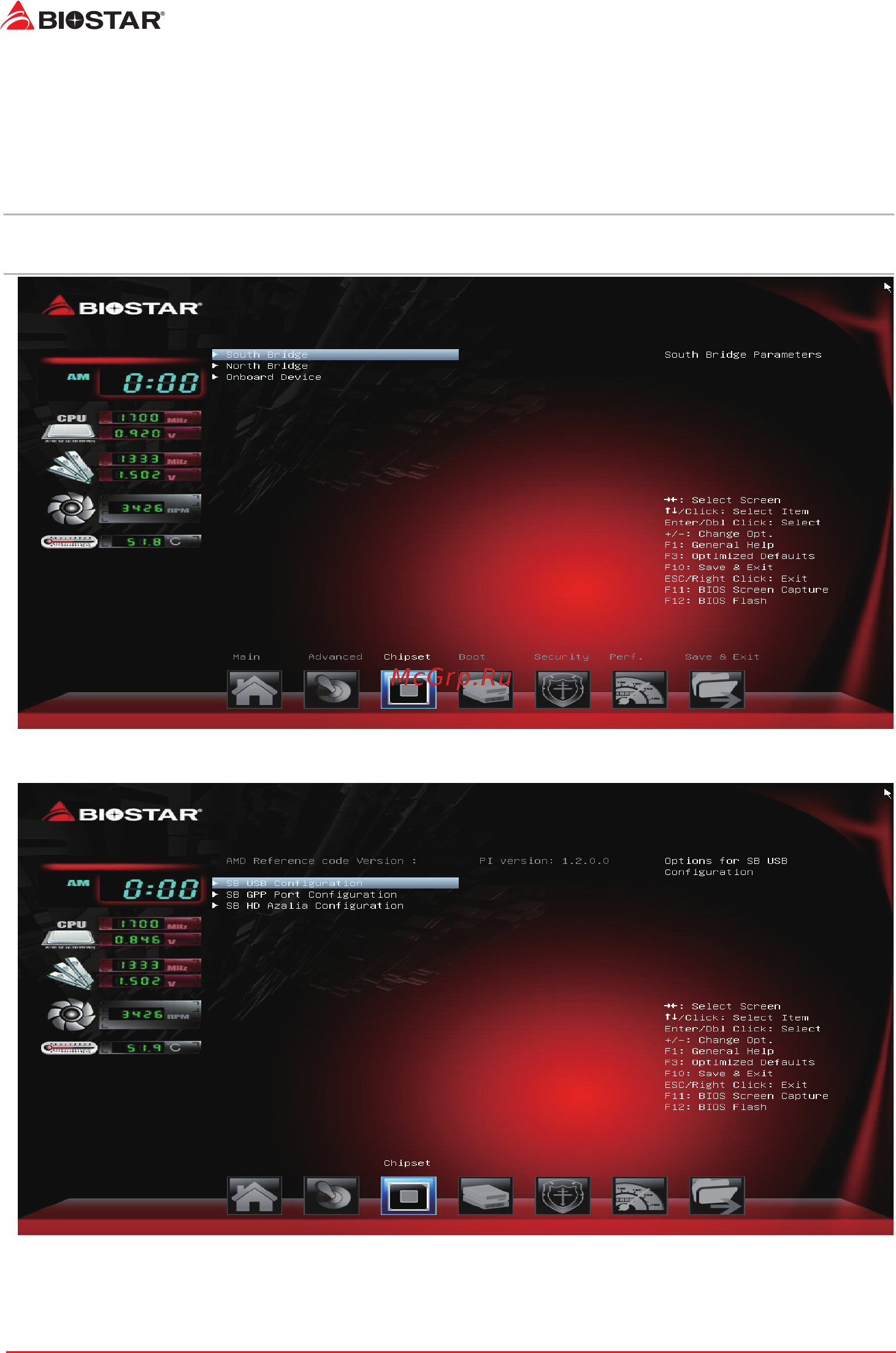

18 | 3 Chipset Menu

3 Chipset Menu

This secon describes conguring the PCI bus system. PCI, or Personal Computer Interconnect, is

a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses

when communicang with its own special components.

Noce: Beware of that seng inappropriate values in items of this menu may cause system to

malfuncon.

South Bridge
