Biostar A68N-5600 Версия 6.4 [8/32] Advanced menu

8 | 2 Advanced Menu

2 Advanced Menu

The Advanced Menu allows you to congure the sengs of CPU, Super I/O, Power Management,

and other system devices.

Noce

Beware of that seng inappropriate values in items of this menu may cause system to malfuncon.

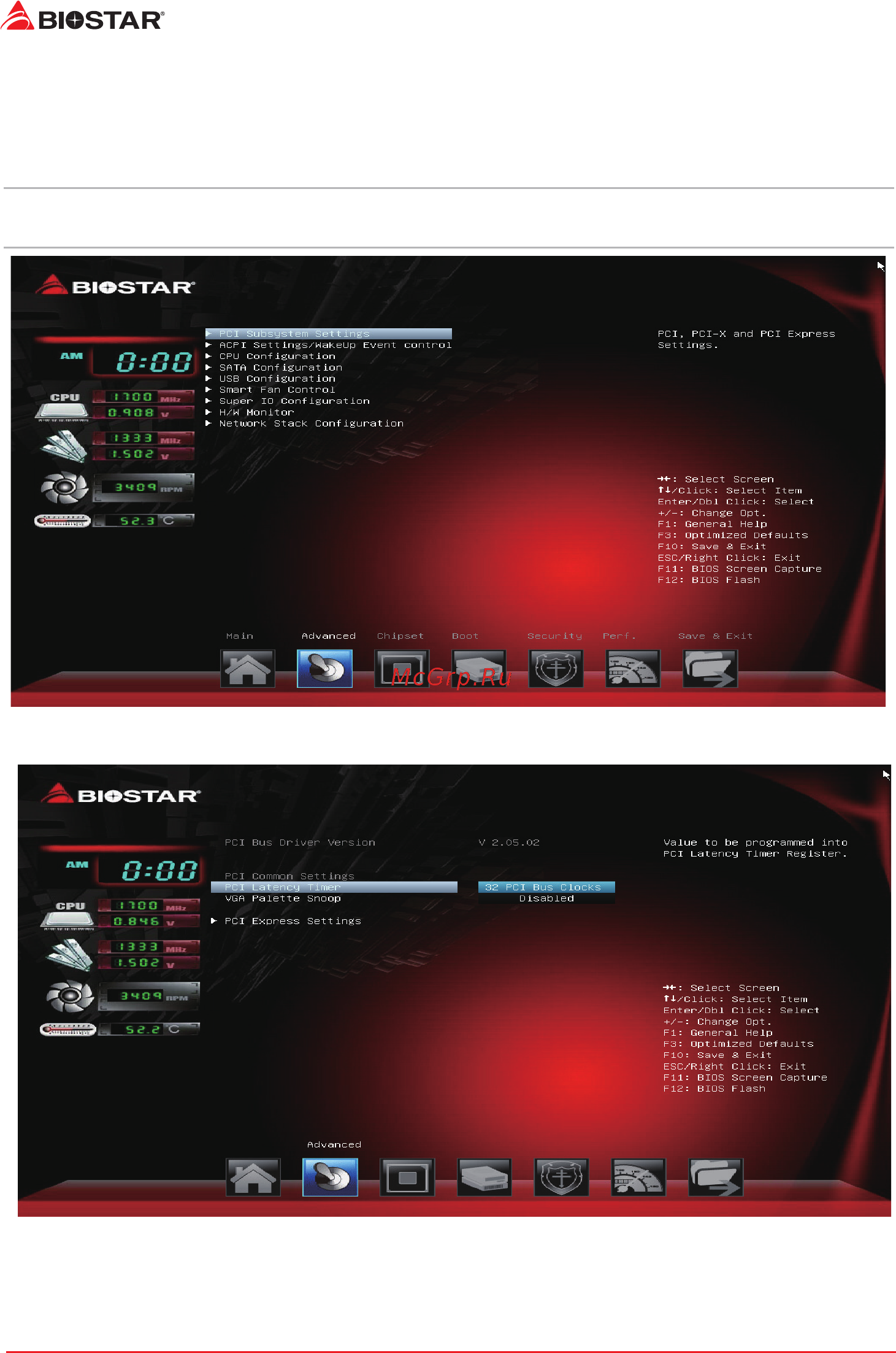

PCI Subsystem Settings

PCI Latency Timer

This item sets the value to be programmed into PCI Latency Timer Register.

Opons: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks / 128 PCI Bus Clocks /

160 PCI Bus Clocks / 192 PCI Bus Clocks / 224 PCI Bus Clocks / 248 PCI Bus Clocks
