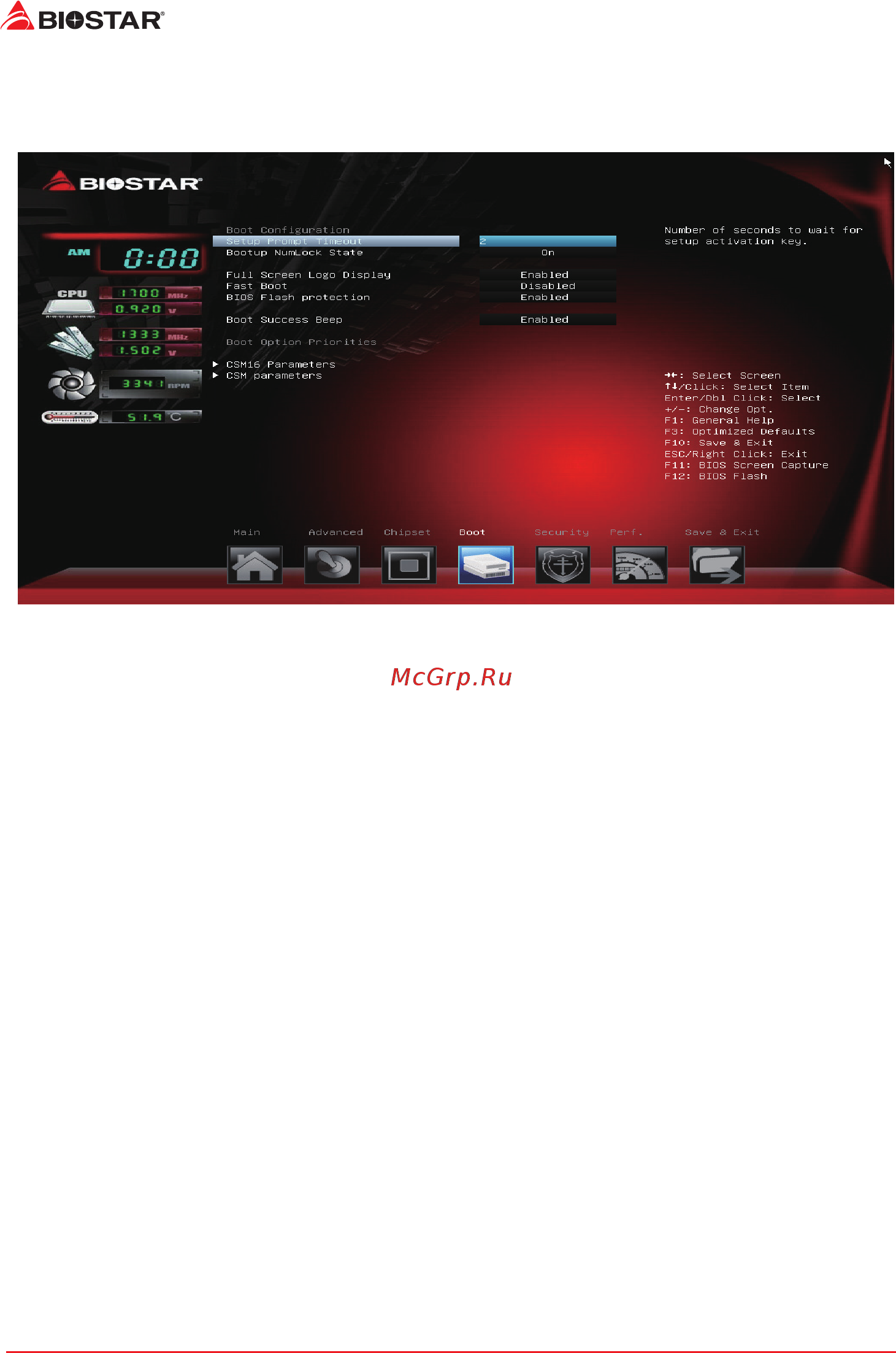

22 | 4 Boot Menu
4 Boot Menu
This menu allows you to setup the system boot opons.
Setup Prompt Timeout
This item sets number of seconds to wait for setup acvaon key.
Opons: 2 (Default)
Bootup NumLock State
This item selects the keyboard NumLock state.
Opons: On (Default) / O
Full Screen Logo Display
This item allows you to enable/disable Full Screen Logo Show funcon.
Opons: Enabled (Default) / Disabled
Fast Boot
This item allows you to enable/disable boot with inializaon of a minimal set of devices required
to launch acve boot opon. Has no eect for BBS boot opons.
Opons: Disabled (Default) / Enabled
»
Note: The following items appear only when you set the Fast Boot funcon to [Enabled]
SATA Support
Opons: Last Boot HDD Only (Default) / All SATA Devices
VGA Support
If Auto, only install Legacy OpRom with Legacy OS and logo would NOT be shown during post. EFI
driver will sll installed with EFI.
Opons: EFI Driver (Default) / Auto
